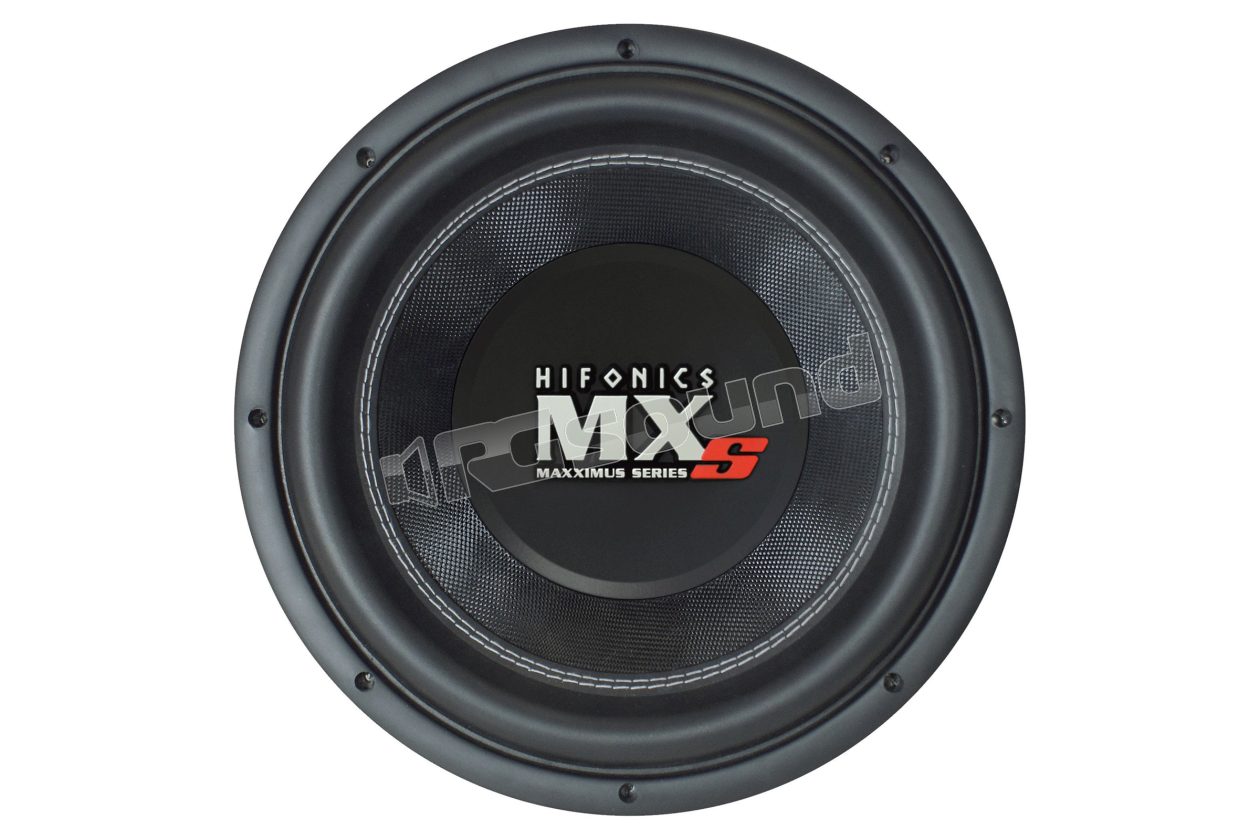

MXS12D2

Hifonics

Discontinued

Your price:
€ 418,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
3000 Watt
RMS Power
1500 Watt
Frequency Response
31 Hertz
Sensitivity
85 dB
Impedance
4 Ohm
Installation Depth
216 mm
Woofer Material
Cellulosa trattata

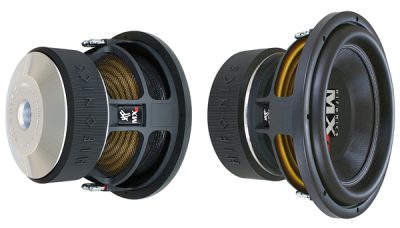

Hifonics MXS-12D2 MAXXIMUS-WOOFER Serie S

30 cm Subwoofer, dual voice coil 2 + 2 Ohm

Power 1500 Watt RMS, 3000 Watt MAX, Ø 283 mm, 216 mm

• Ferrite magnet
• Dual 100 mm voice coil with +/- 23 mm Xmax excursion
• Sandwich cone in kevlar / cellulose composite
• Elastic surround for extended excursions

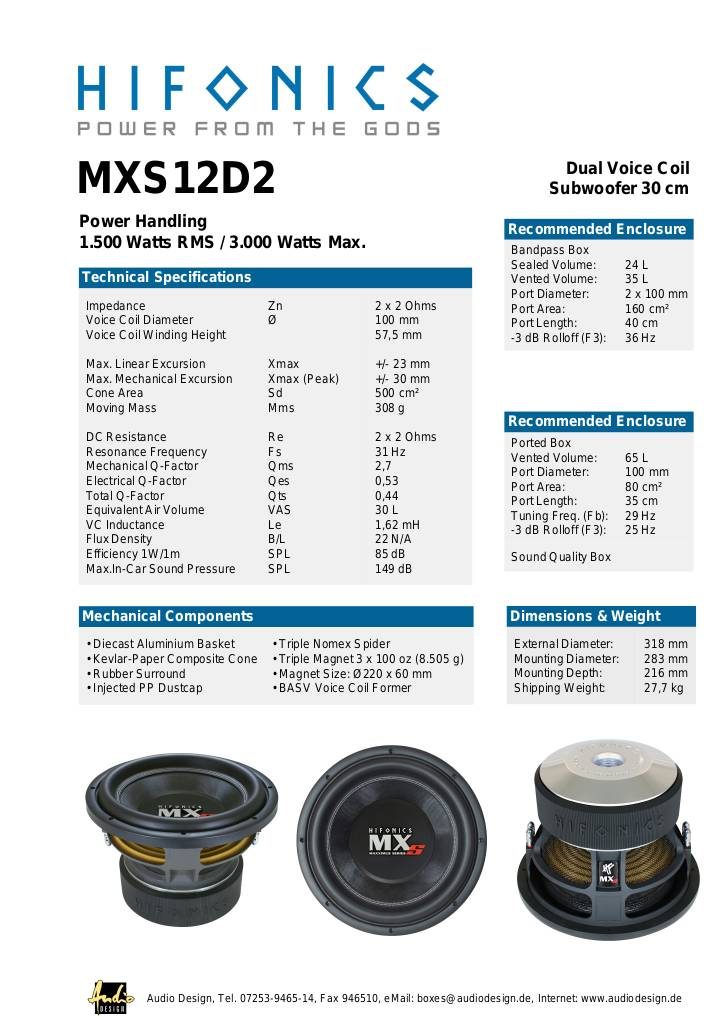

Scheda tecnica

n-20190911155012-mxs12d2.pdf

Hifonics MXS-12D2 technical specifications

Triple ferrite magnet
100 mm dual voice coil with +/- 23 mm Xmax
Sandwich cone made in Kevlar cellulosic composite material
30 cm subwoofer
Impedance 2 + 2 Ohm
Power 1500 Watt RMS, 3000 Watt MAX
Installation diameter 283 mm
Depth 216 mm
Efficiency 85db 1W / 1m

Recommendations for use in various enclosure types:

Band-pass
Sealed volume 24L
Vented volume 35L
Bass reflex tubes 2 x 10 cm diameter 40 cm length

Bass reflex
Enclosure volume 65L
Bass reflex tubes 1 x 10 cm diameter 35 cm length

Sealed enclosure
Enclosure volume 30-40 liters

Discontinued
