MWS822 8" (20 cm) shallow subwoofer

MUSWAY
Your price:
€ 124,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
200 mm
MAX Power
500 Watt
RMS Power
250 Watt
Sensitivity
83 dB
Impedance
2 + 2 Ohm
Installation Depth
78 mm
Woofer Material
Fibra di vetro e carbonio

MUSWAY MWS822 Flat 20 cm (8") Subwoofer

Musway is known for its small yet very powerful products. The two new flat subwoofers also join this tradition. Thanks to their design, they are also suitable for compact installations and when reduced installation dimensions become essential. With an installation depth of 78 mm for the 8" (20 cm) subwoofer and an incredibly low 87 mm for the 10" (25 cm) subwoofer, they are the solution to your problems for special installations.

A particularly flat subwoofer should of course sound good and be robust. This is why Musway uses specially hard cones made from composite materials such as fiberglass and carbon. No savings on 40 or 45 ounce magnets either, driven by 50 mm 2 + 2 ohm dual voice coils, also very long. With Xmax values of +/- 15 mm, both woofers guarantee optimal travel. They can be driven with 250 or 300 watts RMS, and are also very resistant, so no compromises need to be made.

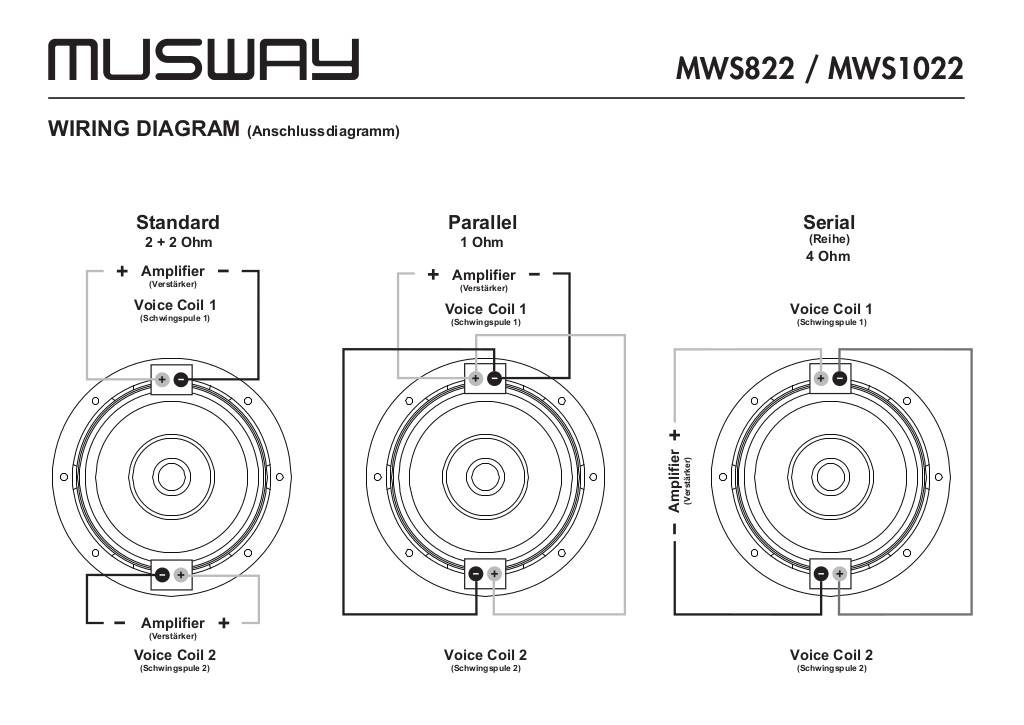

Istruzioni d’uso

n-20211102104914-mws822-mws1022.pdf

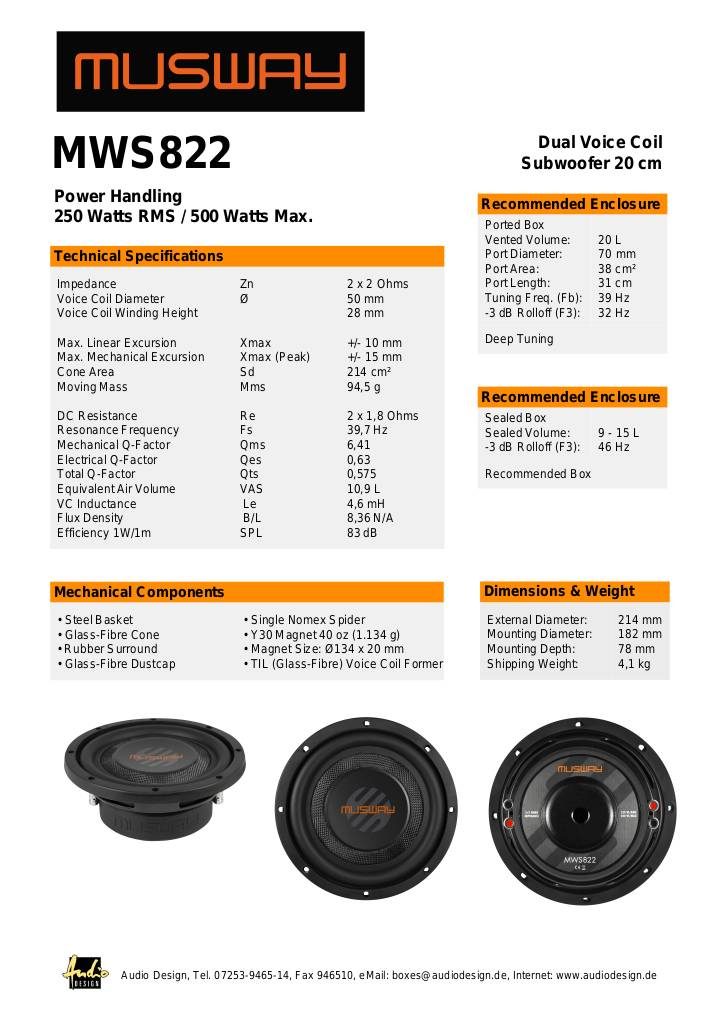

Scheda tecnica

n-20231214104014-scheda-dati.pdf

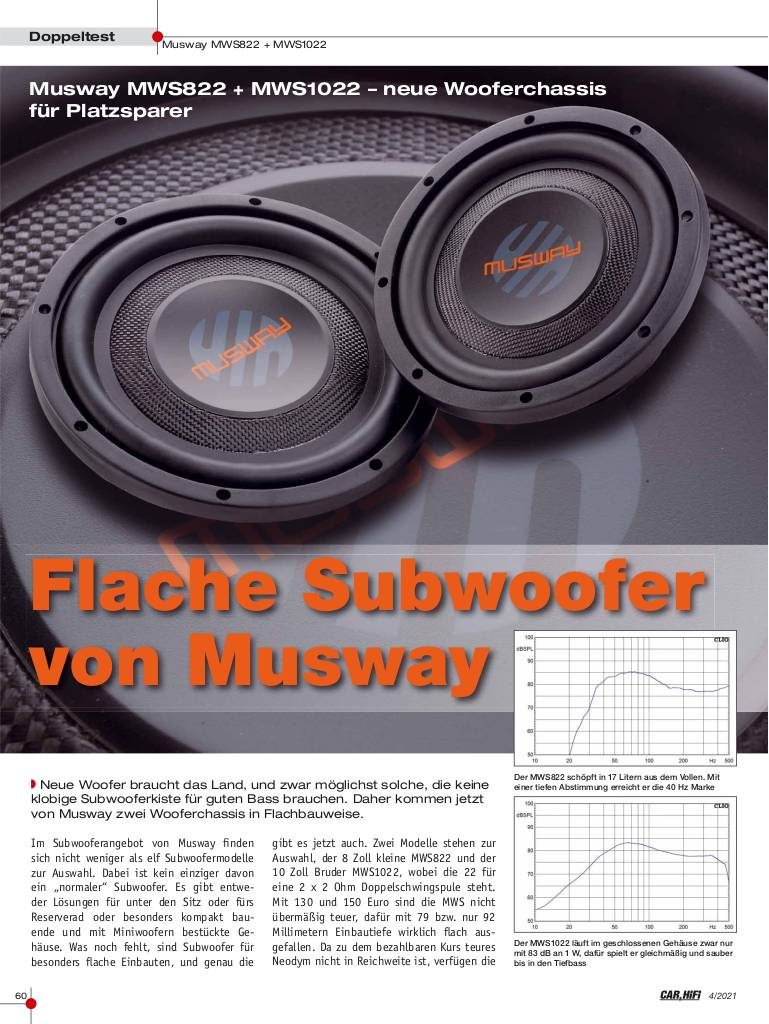

Caratteristiche

n-20231214104014-caratteristiche.pdf

MUSWAY MWS822 Technical Specifications

  • 250 Watt RMS, 500 Watt max.
  • Impedance 2 + 2 Ω
  • Voice coil 50 mm (2")
  • Robust steel basket
  • Magnet 1.13 kg (40 ounces)
  • Fs 39.7 Hz • Qts 0.575 • VAS 10.9 L
  • SPL 83 dB, Xmax +/- 15 mm
  • Installation depth 78 mm
  • Installation hole diameter 182 mm
€ 124,00 Price incl. VAT
