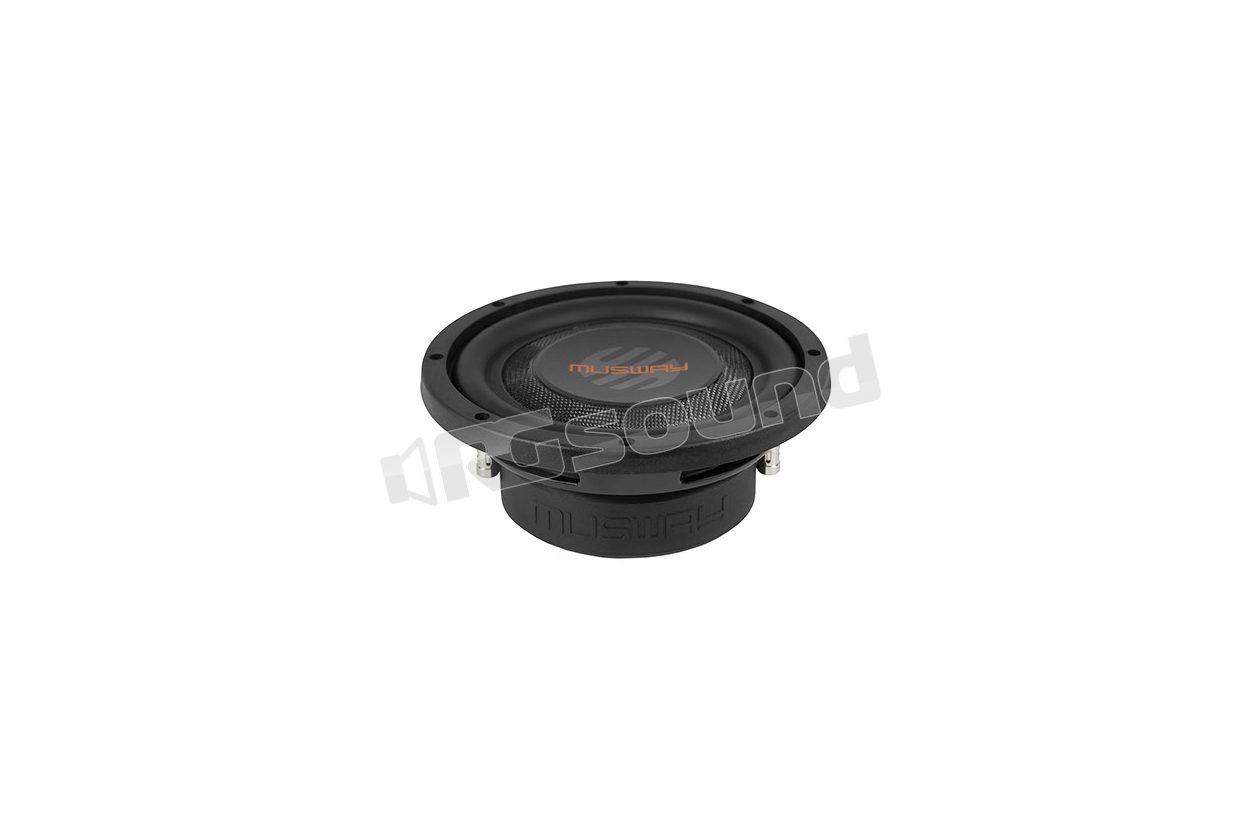

MWS1022 25 cm (10“) DVC 2+2 Ohm shallow subwoofer

MUSWAY
Your price:
€ 143,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
600 Watt
RMS Power
300 Watt
Sensitivity
83 dB
Impedance
2 + 2 Ohm
Installation Depth
87 mm
Woofer Material
Fibra di vetro e carbonio

Musway MWS1022 Flat 25 cm (10") Subwoofer

Musway is known for its small yet very powerful products. The two new flat subwoofers also join this tradition. Thanks to their design, they are also suitable for compact installations and when reduced installation dimensions become essential. With an installation depth of 78 mm for the 8" (20 cm) subwoofer and an incredibly low 87 mm for the 10" (25 cm) subwoofer, they are the solution to your problems for special installations.

A particularly flat subwoofer should obviously sound good and be robust. That's why Musway uses specially hard cones made from composite materials like fiberglass and carbon. No compromise on magnets either, 40 or 45 ounce, guided by 50 mm dual voice coils 2 + 2 ohm, also very long. With Xmax values of +/- 15 mm, both woofers guarantee optimal travel. They can be driven with 250 or 300 watts RMS, and are also very resistant, so no compromises are necessary.

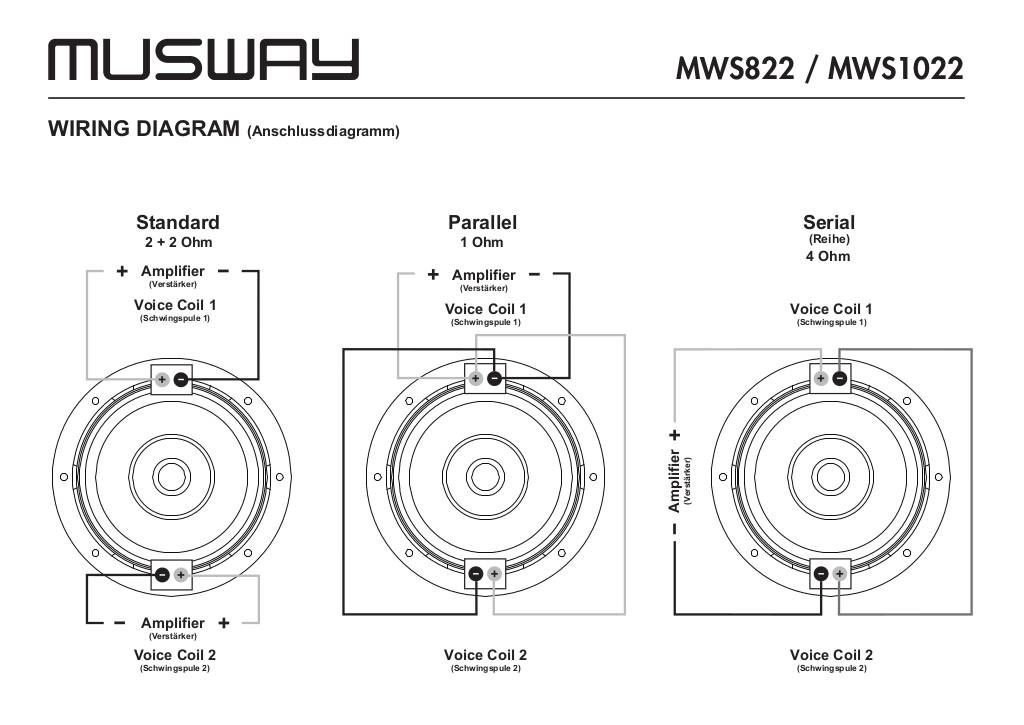

Istruzioni d’uso

n-20211102105528-mws822-mws1022.pdf

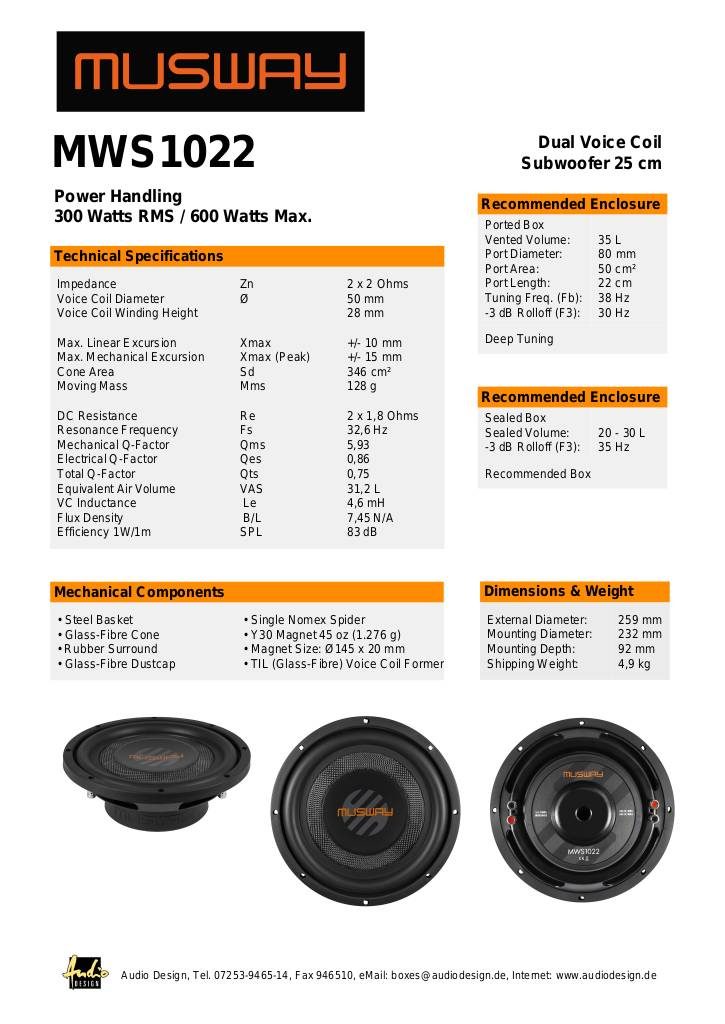

Scheda tecnica

n-20231214103624-scheda-dati.pdf

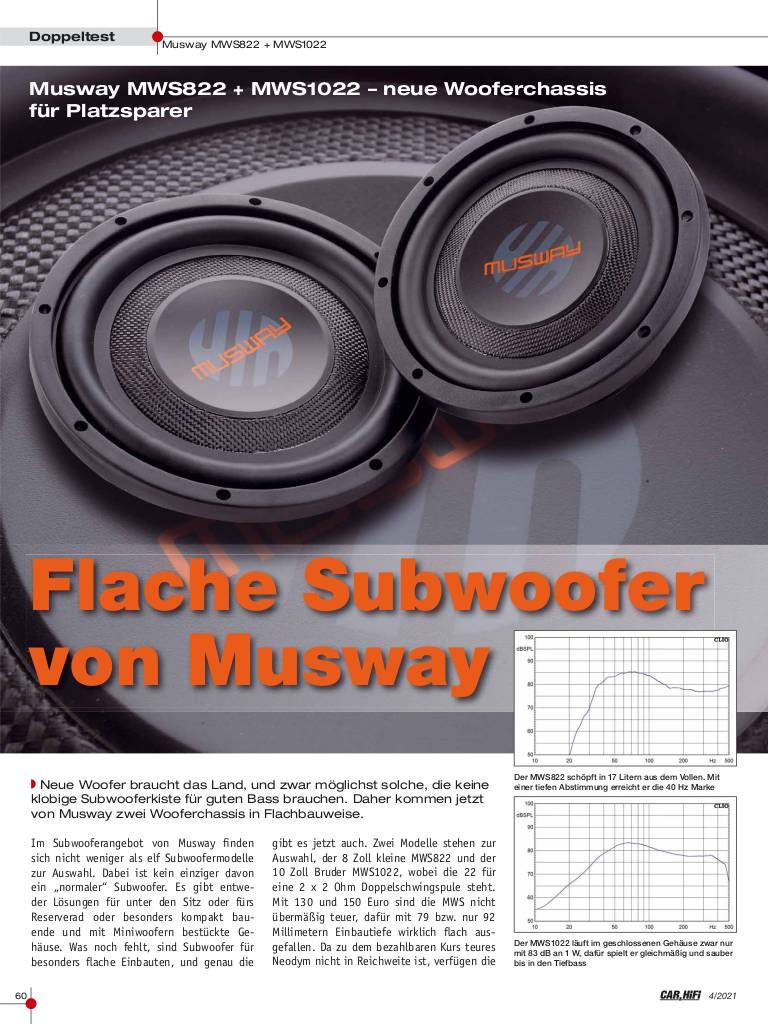

Caratteristiche

n-20231214103624-caratteristiche.pdf

Musway MWS1022 Technical Specifications

  • 300 Watts RMS, 600 Watts max.
  • Impedance 2 + 2 Ω
  • Voice Coil 50 mm (2")
  • Sturdy steel basket
  • Magnet 1.27 kg (45 ounce)
  • Fs 32.6 Hz • Qts 0.75 • VAS 31.2 L
  • SPL 83 dB, Xmax +/- 15 mm
  • Installation depth 87 mm
  • Installation hole diameter 232 mm
€ 143,00 Price incl. VAT
