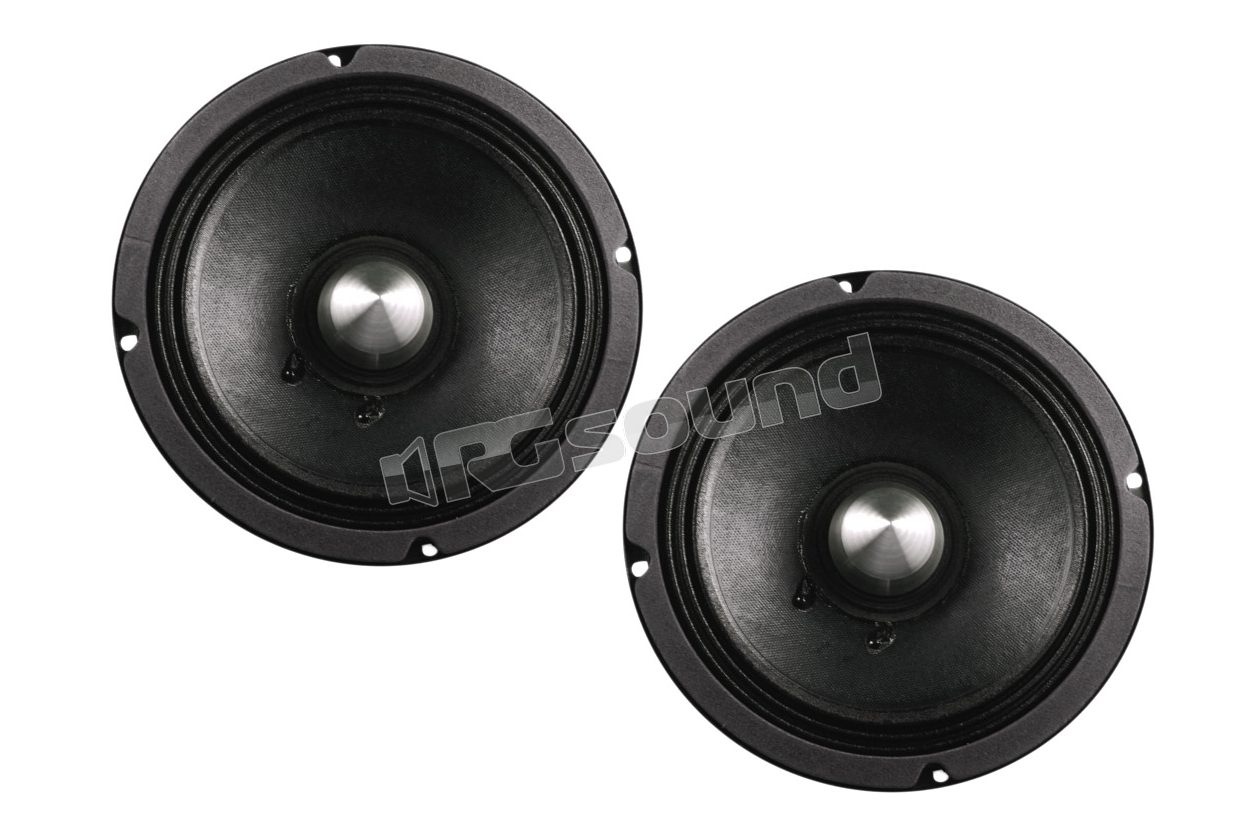

MWFP-200

Proaudio

Discontinued

Your price:
€ 274,30
Price per pair (VAT included)
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
400 Watt
RMS Power
200 Watt
Sensitivity
102 dB
Impedance
4 Ohm
Installation Depth
95 mm
Woofer Material
Polpa di cellulosa

200mm Woofer - Efficiency: 102dB

MWFP-200 TECHNICAL DETAILS:

Basket: Die-cast aluminum with anti-resonance treatment
Magnetic field: Ferrite with magnetic flux linearization system
Voice coil: Multi-wire aluminum alloy on 38mm kapton former
Surround: Pre-treated electrically acrylic
Suspension: Triple wave Nomex treated at differentiated tensions
Phase plug: Full-turned aluminum
Cone: Enhanced cellulose pulp Bullcone®

Power: 200 Watt RMS
Impedance: 4ohm
Sensitivity: 102 dB
Fs: 73 Hz
Re: 3.2 ohm
Vas: 18.65 Lt
Qes: 0.46
Qts: 0.43
Mms: 16.37 gr
Cms: 0.29 mm/N
L: 0.61 mH @ 1 Khz

ACOUSTIC BEHAVIOR:

The "Exceptional" models of high pressure! Like everything born for competition, the MWFP-165 and 200 midwoofers are race machines, designed and built without compromise, capable of producing truly extraordinary pressures. The mechanical balances achieved can be felt: the exclusive wire alloy winding, surrounds, suspension and Bullcone® blend together in a perfectly balanced system, which guarantees superior performance both in terms of speed and tonal quality. It is truly unusual to find beautiful sound in transducers of this category: even at maximum efficiency peaks (111dB the 200) the response remains coherent and pleasant, damped and never harsh, despite the acoustic impact being truly exceptional.



INSTALLATION ADVICE:

Visible installation (avoid recessed positions), in door from 2 to 6 units per side. Strongly recommended are reinforced fiber and resin brackets well built. Thanks to the phase plug/dissipator it is possible to exploit the wide polar response for creative door panels, "falsifying" the inclinations on the plane without losing linearity. Multi-amplification is necessary, especially if the goal is high pressure. We recommend the electronic filter HP@200Hz, but we do not exclude the Sound Quality use of both diameters, filtered passively.

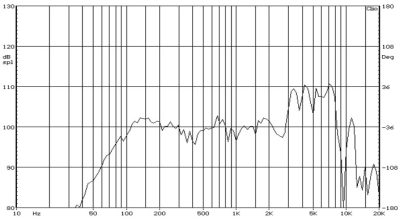

Frequency response

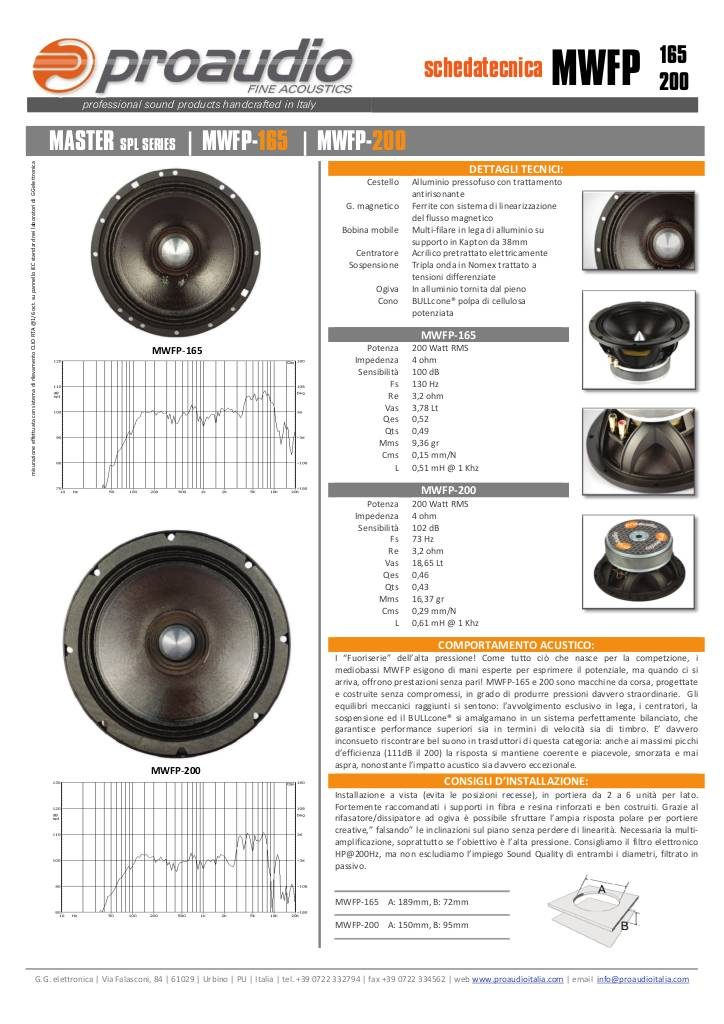

scheda tecnica - specifiche - grafico

20090108154109-master.pdf
Discontinued
