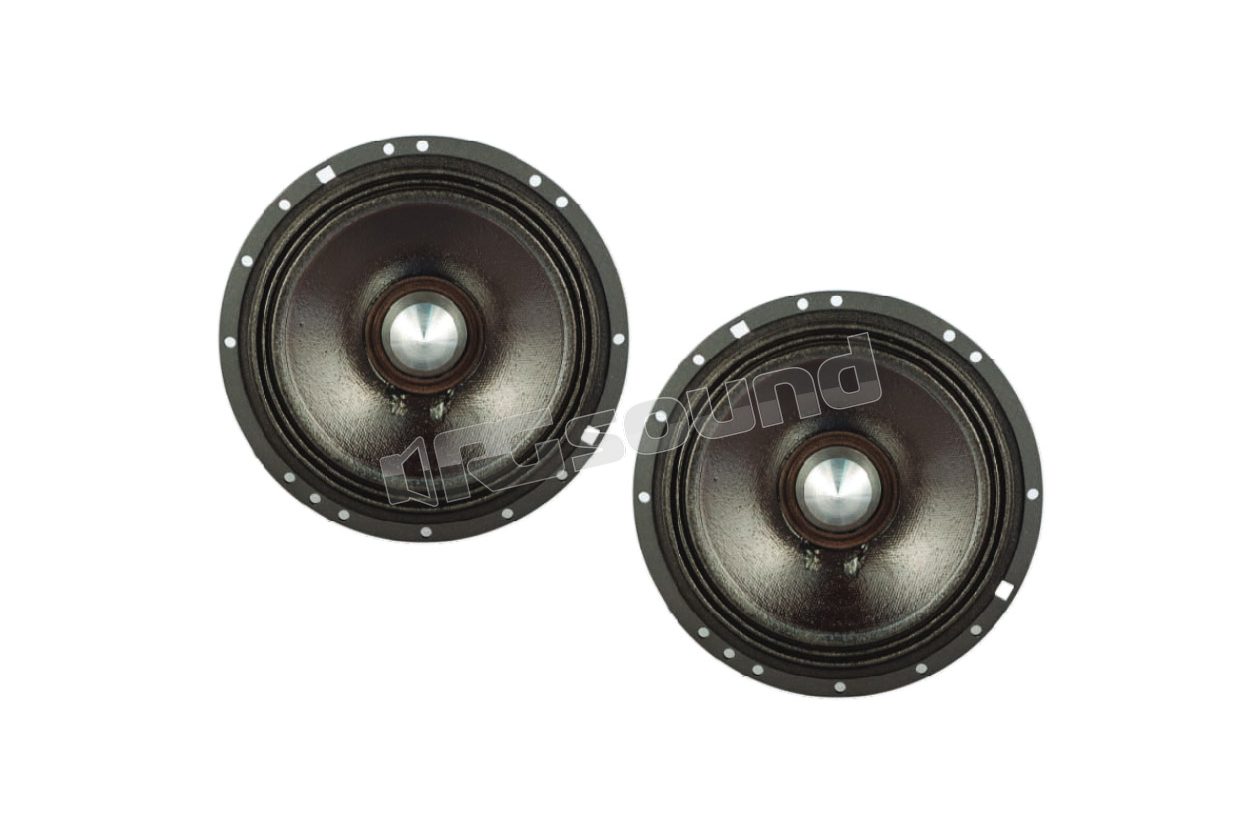

MWFP-165 165mm high-efficiency midrange

Proaudio

Discontinued

Your price:
€ 227,90
Price per pair (VAT included)
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
400 Watt
RMS Power
200 Watt
Sensitivity
100 dB
Impedance
4 Ohm
Installation Depth
72 mm
Woofer Material
Polpa di cellulosa

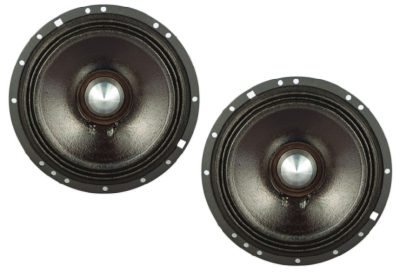

Proaudio MWFP-165 pair of 165mm midrange speakers with extremely high efficiency 100 dB



TECHNICAL DETAILS MWFP-165:


Basket: Die-cast aluminum with anti-resonance treatment
Magnetic field: Ferrite with magnetic flux linearization system
Voice coil: Multi-wire aluminum alloy on 38mm kapton support
Surround: Pre-treated acrylic electrically
Suspension: Triple wave in Nomex treated at differential tensions
Dome: Machined aluminum from solid
Cone: Bullcone® reinforced cellulose pulp

Power: 200 Watts RMS
Impedance: 4ohm
Sensitivity: 100dB
Fs: 130 Hz
Re: 3.2 ohm
Vas: 3.78 Lt
Qes: 0.52
Qts: 0.49
Mms: 9.36 gr
Cms: 0.15 mm/N
L: 0.51 mH @ 1 Khz

ACOUSTIC PERFORMANCE:

The "Out of series" of high pressure! Like everything that is born for competition, the MWFP-165 and 200 midbass speakers are racing machines, designed and built without compromises, capable of producing truly extraordinary pressures. The mechanical balances achieved are felt: the exclusive alloy winding, surrounds, suspension and Bullcone® blend together in a perfectly balanced system, which guarantees superior performance both in terms of speed and tone. It is truly unusual to find beautiful sound in transducers of this category: even at peak efficiency levels (111dB the 200) the response remains coherent and pleasant, dampened and never harsh, despite the acoustic impact being truly exceptional.



INSTALLATION ADVICE:

Visible installation (avoid recessed positions), in door panels from 2 to 6 units per side. Strongly recommended reinforced fiber and resin supports, well constructed. Thanks to the dome phase plug/dissipator, it is possible to exploit the wide polar response for creative door panels, "altering" the inclinations on the plane without losing linearity. Multi-amplification is necessary, especially if the goal is high pressure. We recommend the electronic filter HP@200Hz, but we do not exclude the Sound Quality use of both diameters, filtered passively.

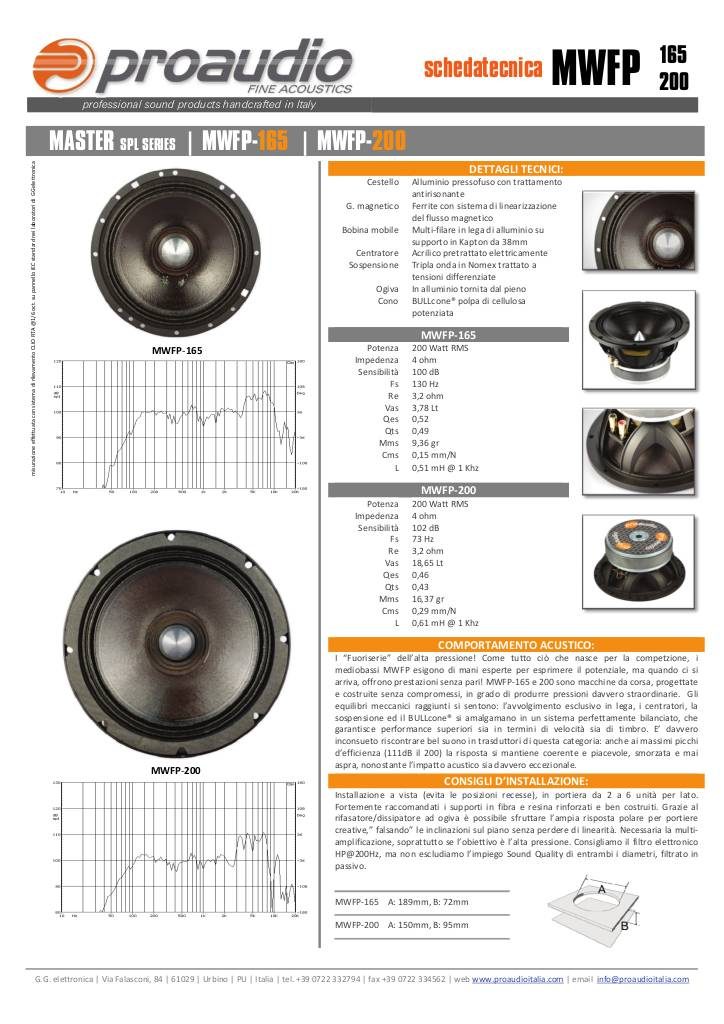

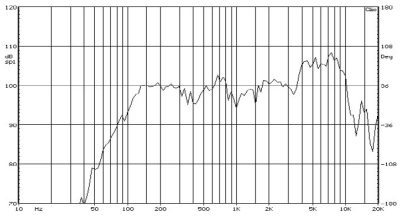

scheda tecnica - grafico

20090108154121-master.pdf
Discontinued
