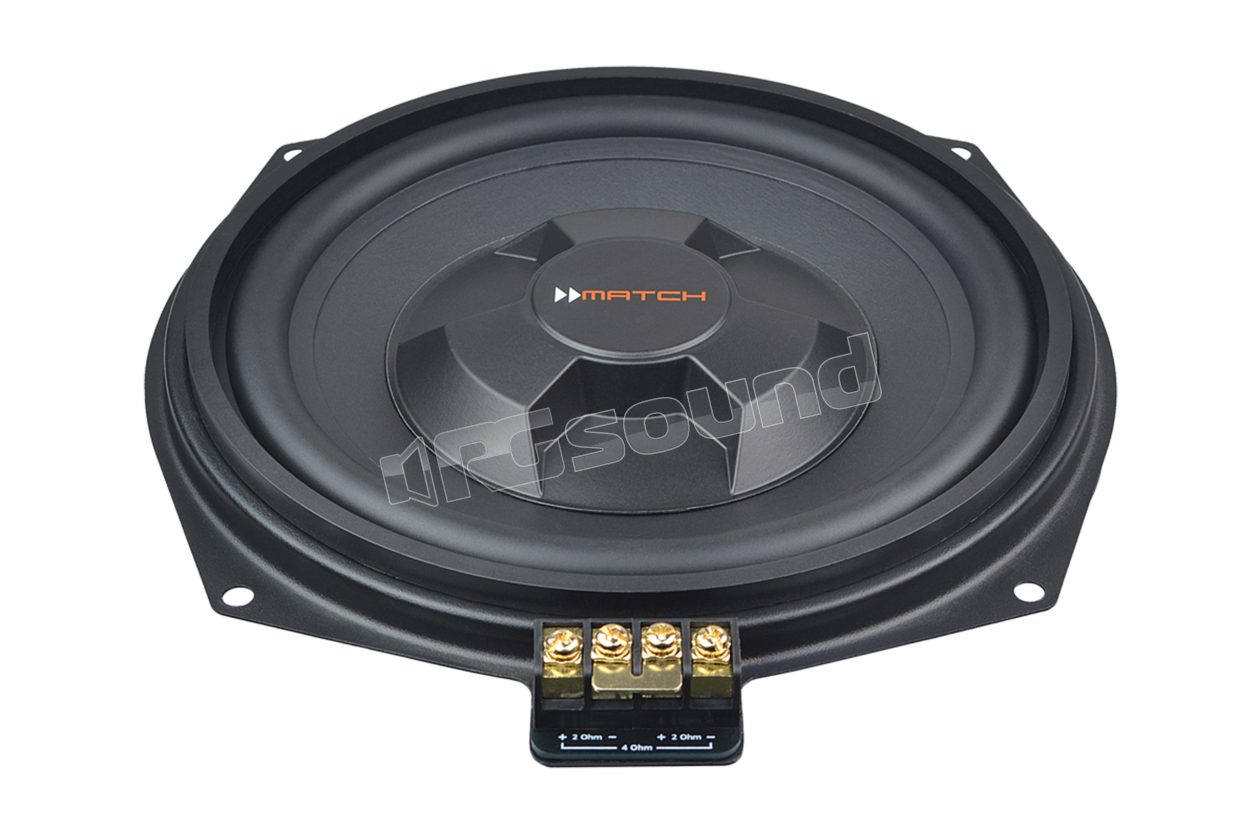

MW 8BMW-D subwoofer for BMW

Match
Your price:
€ 375,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to

The MW 8BMW-D subwoofers are the ideal upgrade for those not satisfied with the bass response in their BMW, with unprecedented space-saving installation.

BMW-specific baskets and Plug & Play connectors allow easy and quick installation in the original mounting positions of all BMW model ranges with under-seat subwoofers.

However, these subwoofers are also perfectly qualified for universal applications. Thanks to the very low mounting depth, the extremely compact sealed enclosures are not a problem at all, while the oversized 1.7" / 42.5 mm voice coil ensures high power handling. Furthermore, the special speaker connector with its gold-plated screw terminals allows two different configurations and thus flexible connection options. With the connection bracket factory-installed the subwoofer has an impedance of 1 x 4 Ohm, otherwise each voice coil can be driven individually (impedance 2 x 2 Ohm) and allows perfect combination with MATCH Plug & Play amplifiers.

See the table for compatibility with BMW car models.

Match Technical SpecificationsMW 8BMW-D:

Power RMS / max.P200 / 400 Watts
Impedance Z2 x 2 Ω
DC resistance Re3.4 Ω
Resonance frequency Fs46 Hz
Mechanical Q factor Qms4.45
Electrical Q factor Qes0.59
Total Q factorQts0.52
ComplianceCms272 µm/N
Equivalent air volumeVas17.3 L
Force factor B*I8.6 Tm
Efficiency 1 W / 1 mSPL90 dB
Cone area Sd214 cm²
Moving mass Mms44.2 g
Cone materialHand-scooped paper cone
Mechanical resistance Rms0.74 kg/s
Voice coil diameterø42.5 mm
Voice coil winding heightHandgeschöpfte Papiermembran
Max. linear excursion Xmax+/- 4.0 mm
Outer diameterø239 mm / 9.41"
Installation diameterø175 mm / 6.89"
Installation depth40 mm / 1.57"
Recommended enclosure volumes
Sealed box
Net volume3 L
Lower limiting frequency (-3dB)63 Hz
DSP settings- Highpass: Butterworth; 12 dB/octave; crossover frequency 40 Hz
- Additional EQ filter: center frequency 90 Hz; Q factor 3.0; gain -4 dB
- Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 - 100 Hz
Vented boxFor one subwooferFor two subwoofers
Net volume12 L24 L
Port diameterø60 mm / 2.36"80 mm / 3.15
Port area28 cm²50 cm²
Port length25 cm / 9.84"20 cm / 3.94"
Port tuning frequencyFb46 Hz46 Hz
Lower limiting frequency (-3dB)45 Hz45 Hz
DSP settings- Highpass: Self-Define; crossover frequency 40 Hz; Q factor 1.3
- Additional EQ filter: center frequency 67 Hz; Q factor 3.0; gain -3 dB
- Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 - 100 Hz


Suitable for all BMW model ranges with under-seat subwoofers and universal use

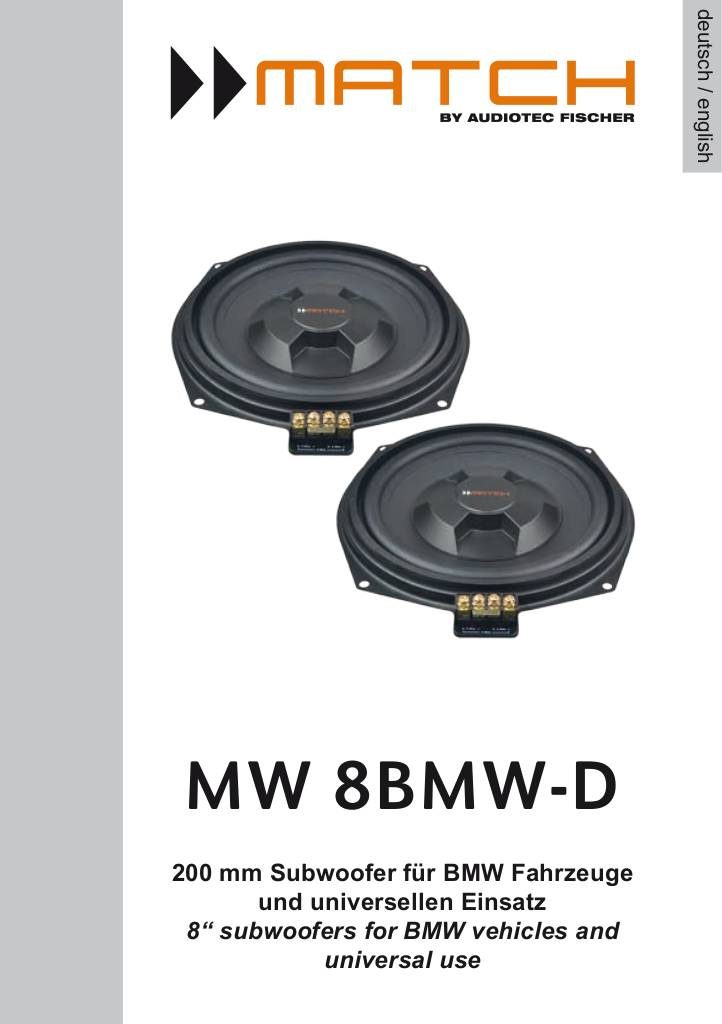

Manuale di installazione

n-20180711143600-ba-mw-8bmw-d.pdf

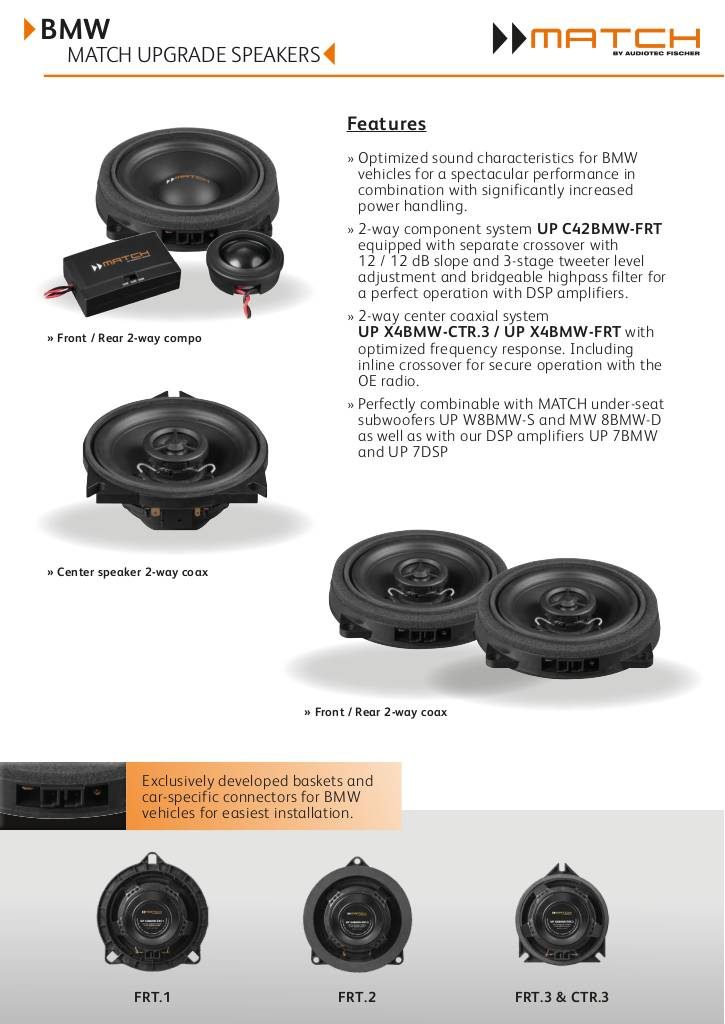

Tabella compatibilità
