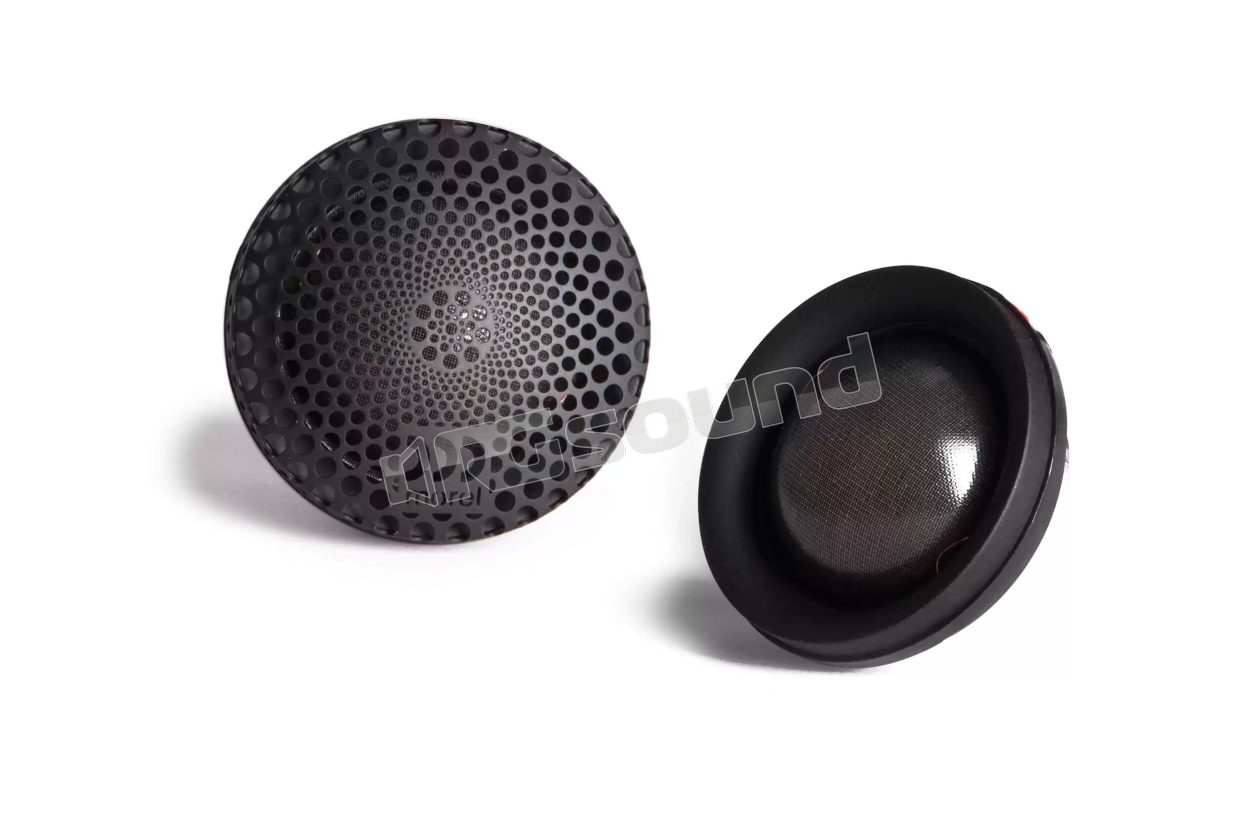

MT120N Pair of compact tweeters with Acuflex silk dome

Morel
Your price:
€ 245,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
28 mm
MAX Power
250 Watt
RMS Power
80 Watt
Frequency Response
1800 - 25000 Hertz
Sensitivity
90 dB
Impedance
8 Ohm
Outer Diameter
47 mm
Installation Depth
13 mm
Tweeter Material
Cupola Acuflex

Morel MT120N Pair of compact tweeters with Acuflex silk soft dome

The new generation MT-120 tweeter offers unrivaled high frequency performance in a compact design with incredible high power handling capabilities at very low distortion levels. While its size allows it to fit most factory locations, surface and flush-mount options with a beautiful lotus grille provide a sleek appearance suitable for modern vehicles.

Hand-crafted Acuflex soft dome

A specially designed damping compound applied by hand to soft domes, adding rigidity and damping, which greatly improves the clarity and bandwidth of the tweeter/midrange. The Acuflex diaphragm features controlled break with cancellation (accurate flex), which means that each break mode is opposed by another in the opposite direction, allowing for a regular frequency response.

Morel MT120N technical specifications

  • Nominal impedance (ohm) 8
  • Power handling Wrms 80
  • Maximum power (10ms) 250 Watt
  • Sensitivity (2.83V/1M) dB 90
  • Frequency response Hz 1800-25000
  • FFS Hz 1200
  • Voice coil diameter mm (inches) 28 (1.125)
  • Voice Coil Ex aluminum
  • Copper wire for voice coil
  • DC resistance ohm 5.2
  • Neodymium magnetic system
  • Dome type Hand-coated Acuflex™ soft dome
  • Dome Material Silk
  • Unit diameter mm (inches) 43 (1.69)
  • Mounting depth mm (inches) 13.20 (0.52)
  • Mounting opening mm (inches) 47 (2.00)
  • Net weight Kg (pounds) 0.07 (0.15)
€ 245,00 Price incl. VAT
