MSF051.22 5"/130mm Midrange

LaVoce

Discontinued

Your price:
€ 21,10
Price per single item (VAT included)
Type
Midrange
Speaker Size
130 mm
MAX Power
140 Watt
RMS Power
70 Watt
Frequency Response
140 - 10000 Hertz
Sensitivity
92 dB
Impedance
8 Ohm
Weight
1,2 Kg
Voice Coil Diameter
32 mm

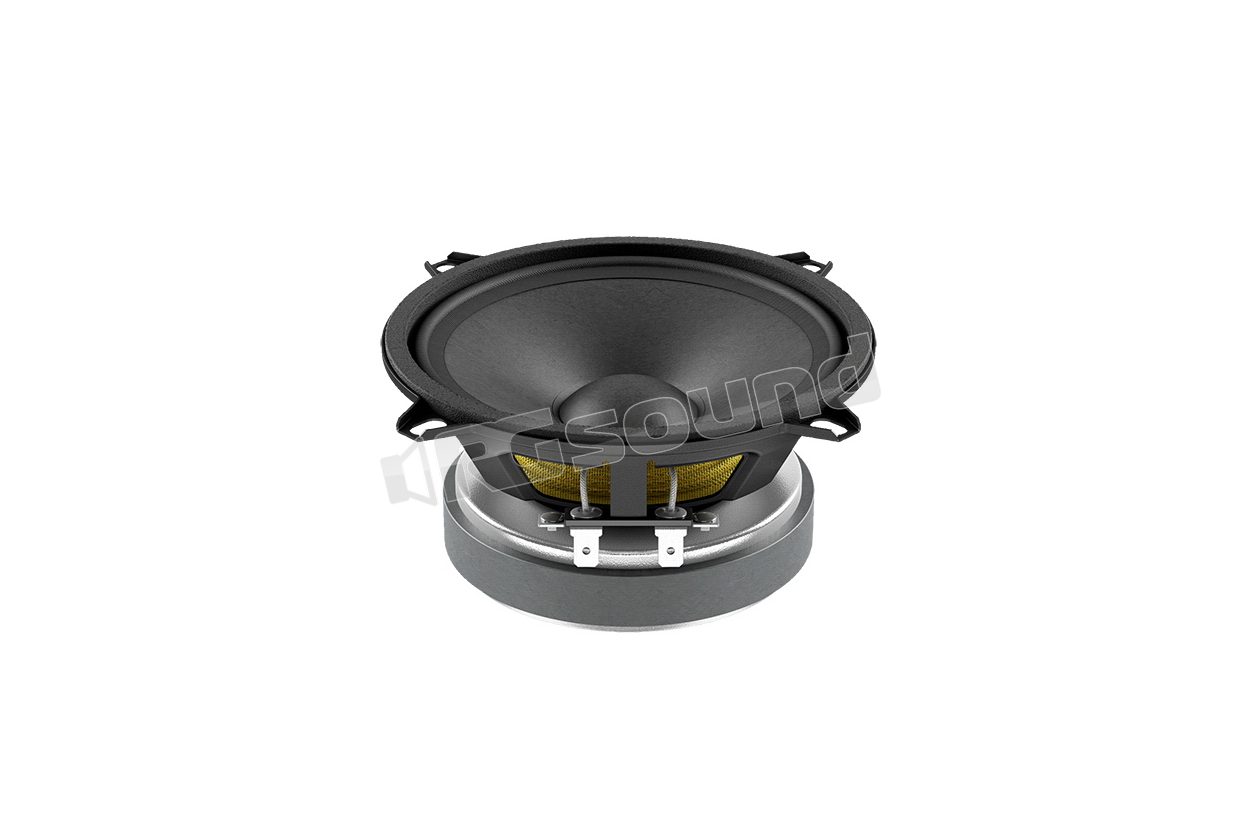

LaVoce MSF051.22 5"/130mm Midrange

LaVoce code 70R02051

MSF051.22 Features

  • 1.25 inch CCAW voice coil
  • Sensitivity 92 db/spl
  • Power handling 140 watt program
  • Motor and suspension optimized for FEM
  • Basket design free of resonances and resistant

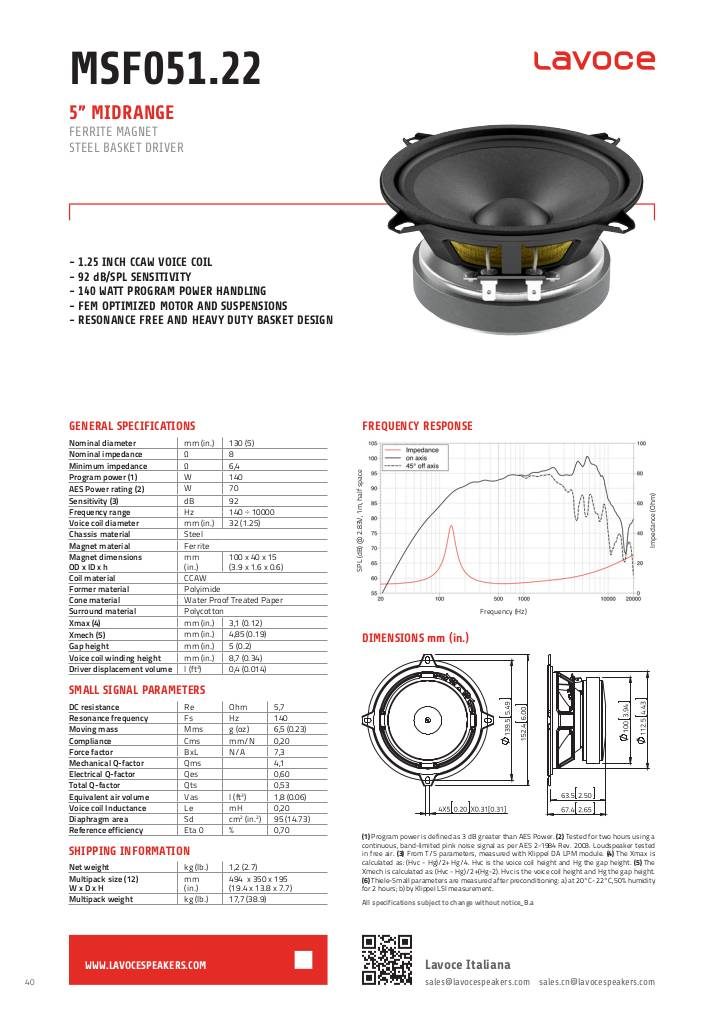

scheda tecnica

1549117549-msf05122-1.pdf

LaVoce MSF051.22 Technical Specifications

  • Nominal diameter mm (in) 130 (5)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.4
  • Program power W 140
  • AES power W 70
  • Sensitivity dB 92
  • Frequency range Hz 140 ÷ 10000
  • Voice coil diameter mm (in) 32 (1.25)
  • Frame material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 100 x 40 x 15 (3.9 x 1.6 x 0.6)
  • Coil material CCAW
  • Molding material Polyamide
  • Cone material Water-resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 3.1 (0.12)
  • Xmech mm (in) 4.85 (0.19)
  • Gap height mm (in) 5 (0.2)
  • Voice coil winding height mm (in) 8.7 (0.34)
  • Driver displacement volume l (ft³) 0.4 (0.014)
  • DC resistance Ohm 5.7
  • Resonance frequency Hz 140
  • Moving mass g (oz) 6.5 (0.23)
  • Compliance mm/N 0.20
  • Force factor N/A 7.3
  • Mechanical Q factor 4.1
  • Electrical Q factor 0.60
  • Total Q factor 0.53
  • Equivalent air volume l (ft3) 1.8 (0.06)
  • Voice coil inductance mH 0.20
  • Diaphragm area cm2 (in.2) 95 (14.73)
  • Reference efficiency 0.7%
  • Net weight kg (lb) 1.2 (2.7)
  • Multipack dimensions L x W x H 494 x 350 x 195 (19.4 x 13.8 x 7.7)
  • Multipack weight kg (lb) 17.7 (38.9)
Discontinued
