MS-12SD2

JBL

Discontinued

Your price:
€ 220,90
Price per pair (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1800 Watt
RMS Power
900 Watt
Frequency Response
30 - 400 Hertz
Sensitivity
87 dB
Impedance
2+2 Ohm
Installation Depth
171 mm
Woofer Material
Polypropylene e alluminio

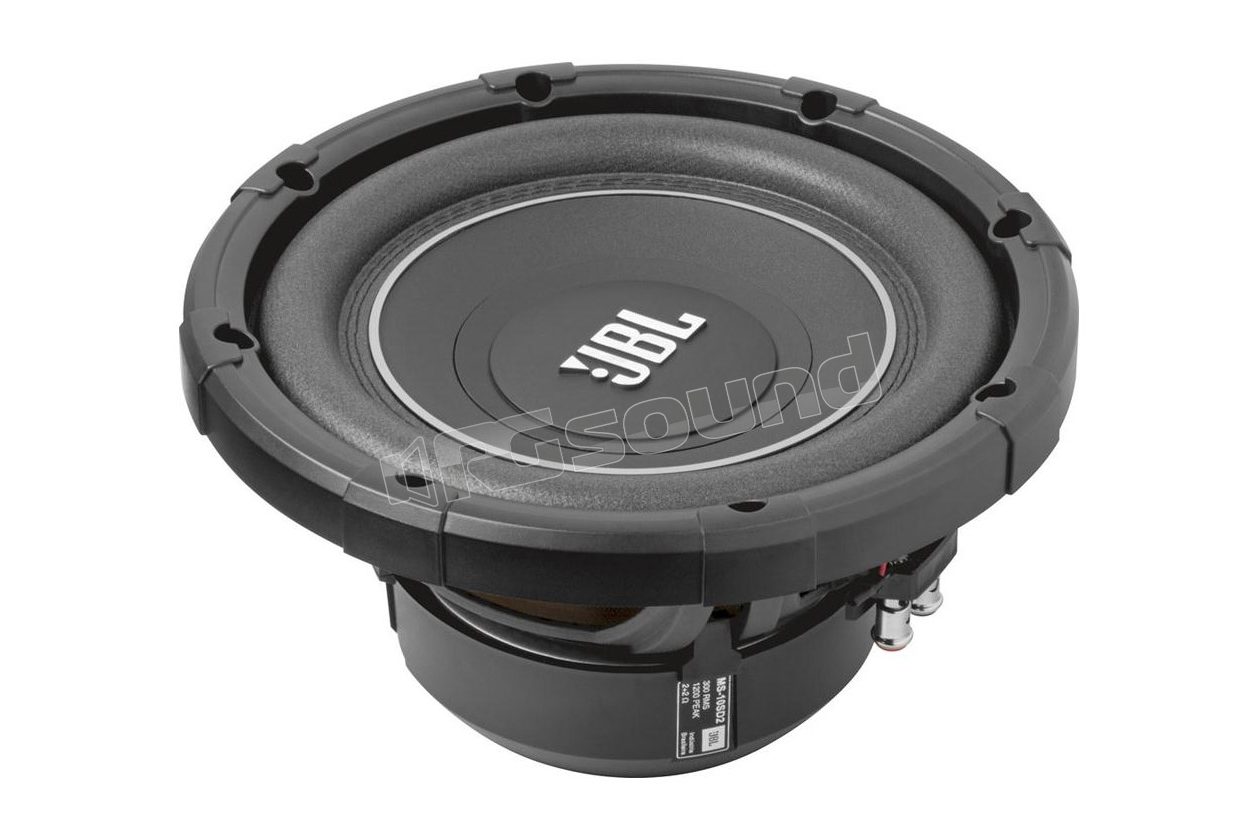

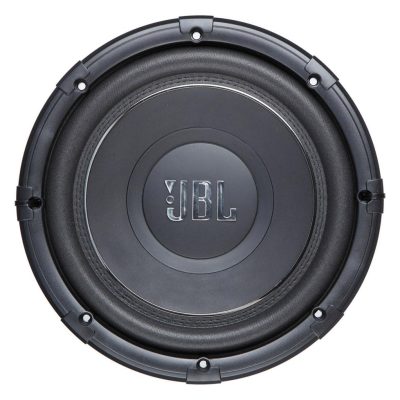

300mm subwoofer, continuous/peak power: 450W / 1800W, dual 2Ω voice coil


  • Standard subwoofer diameter 12" (inches) - 30 cm - 300 mm.

  • MAXIMUM power 1800W.

  • RMS power 900W.

  • Efficiency (1W/1m) 87 dB.

  • Frequency response 30 Hz / 400 Hz.

  • Resonance frequency Fs 35 Hz.

  • X-max +/- 6.5 mm (total both directions 14 mm) - indicates the normal operating excursion.

  • X-lim +/- 29.3 mm (total both directions 58.6 mm) - indicates the limit excursion before breaking.

  • Voice coil 2.5" (inches) - 64 mm.

  • Maximum voice coil operating temperature 237 °C.

  • Reinforced polypropylene cone that ensures excursion without mechanical distortion.

  • Ferrite and barium magnet 1.6 kg.

  • Triple laminated surround, connected to the cone with double stitching.

  • The surround guarantees optimal "stiffness" and "damping", for excellent "control".

  • Progressive (non-linear) spiders, for better excursion and minimum distortion.

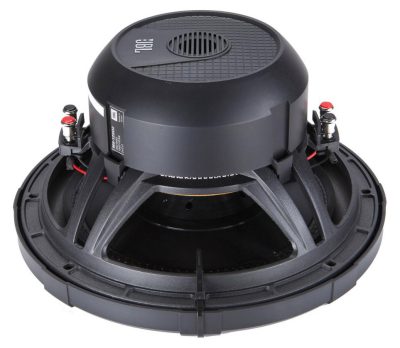

  • Basket in die-cast aluminum, particularly massive and resistant, black finish.

  • The basket has a non-magnetic structure, which does not interfere with the magnet.

  • The assembly of the structure provides excellent voice coil ventilation.

  • The overall structure of the subwoofer is very durable.

  • Spring-loaded sliding connectors "push type".

  • Dual voice coil system. Nominal impedance 2 + 2 ohm.

  • Mounting depth <171 mm.
