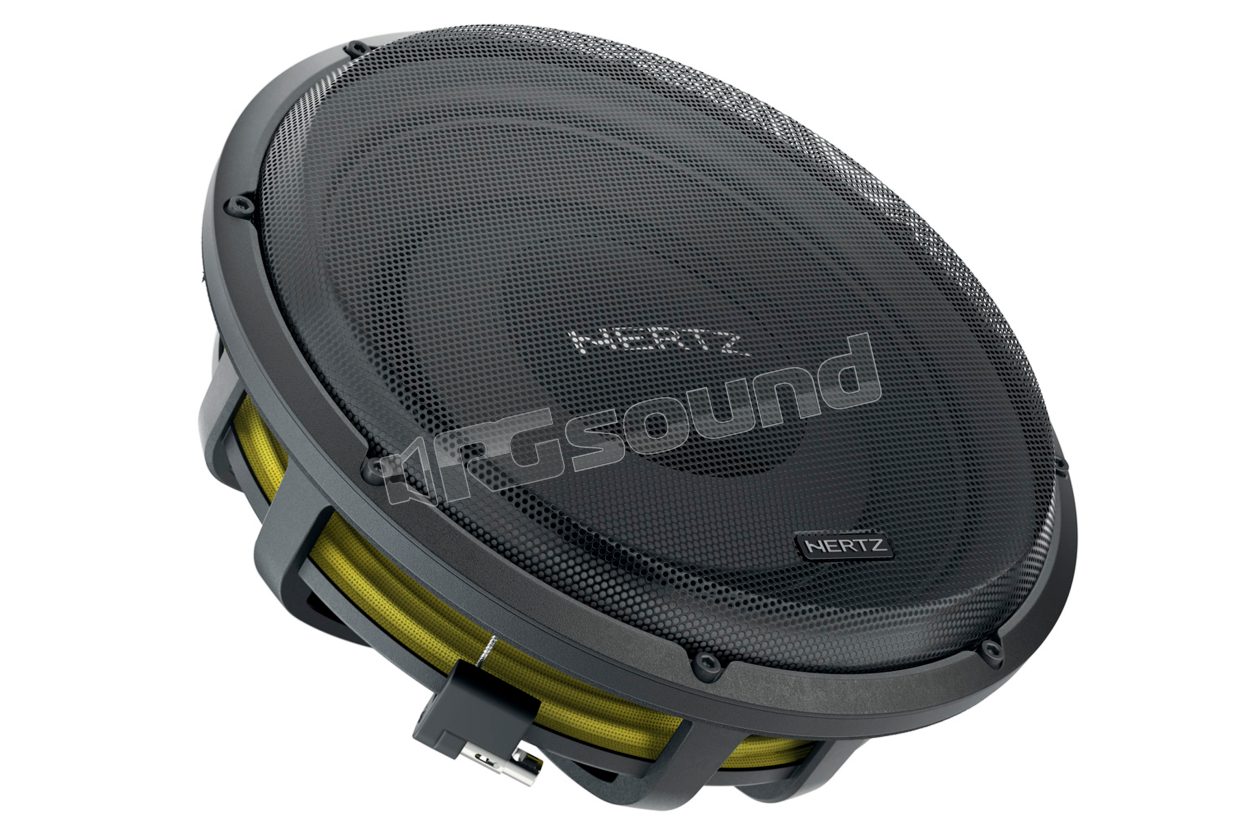

MPS 300 S2 Slim 30cm subwoofer for compact enclosures

Hertz
Your price:
€ 399,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Frequency Response
25 - 400 Hertz
Sensitivity
84,5 dB
Impedance
2 Ohm
Weight
6,6 Kg
Installation Depth
88 mm
Woofer Material
Polipropilene

Hertz MPS 300 S2 Subwoofer 300mm (12"), power 1000 Watt, impedance 2 Ohm

The MPS 300 S2 bass subwoofer was designed to achieve exceptional performance even when the available space for subwoofer installation is very limited.

MPS 300 S2 is optimized to work in ultracompact sealed enclosures starting from just 22.7 Lt (0.8 Cf). A typical example is a subwoofer box under the rear bench of pickup trucks, where space and height are limited.

MPS 300 S2 has a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity of 20% compared to a traditional design.

This exceptional goal was achieved thanks to the ingenious design of the suspension assembly characterized by a dedicated support structure for the spider and coil. This solution allowed the movement of the magnetic assembly inward, reducing its depth while maximizing the linear excursion of the cone at the same time.

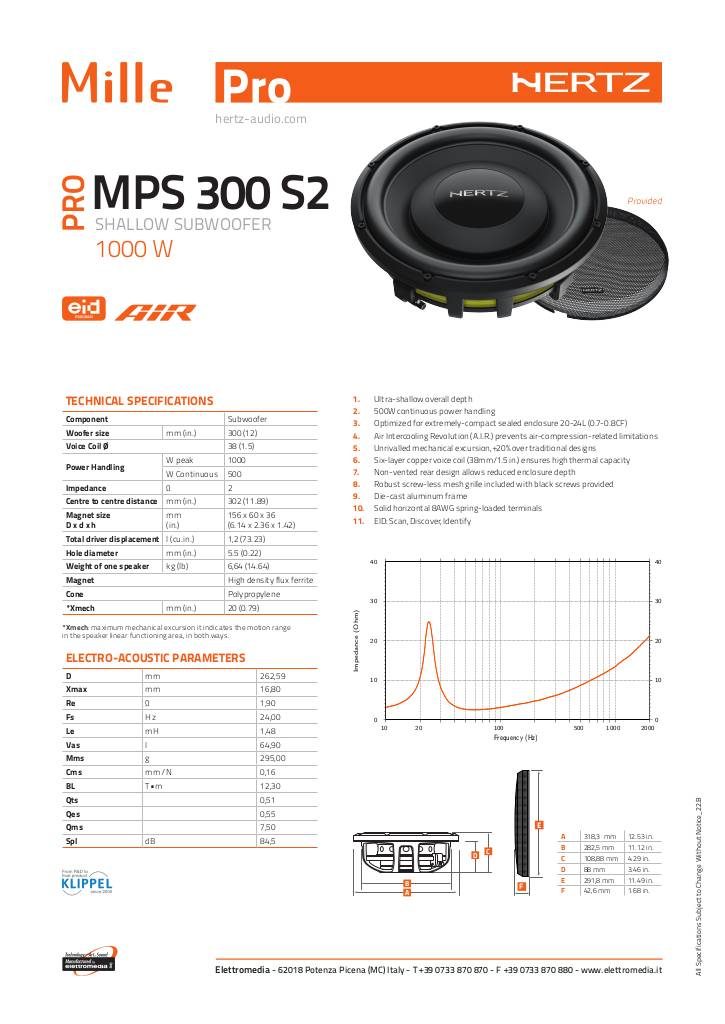

Scheda tecnica

n-20221221095038-hertz-mille-pro-techsheet-mps300-s2-revb.pdf

Hertz MPS 300 S2 Technical specifications

  • Size mm (inches) 300 (12)
  • Power handling - Continuous W 500
  • Power handling - Peak W 1000
  • Impedance Ohm 2
  • Depth 88 mm (3.46")
  • Voice coil type Single
  • Subwoofer component filter None
  • Voice coil Ø 38 (1.5")
  • Frequency response Hz 25 - 400
  • Magnet size 156 x 60 x 36 mm (6.14 x 2.36 x 1.42")
  • Weight per component kg (lb.) 6.64 (14.64)
  • Magnet High flux density Ferrite
  • Cone Polypropylene
  • Xmecc mm (inches) 20 (0.79)
€ 399,00 Price incl. VAT
