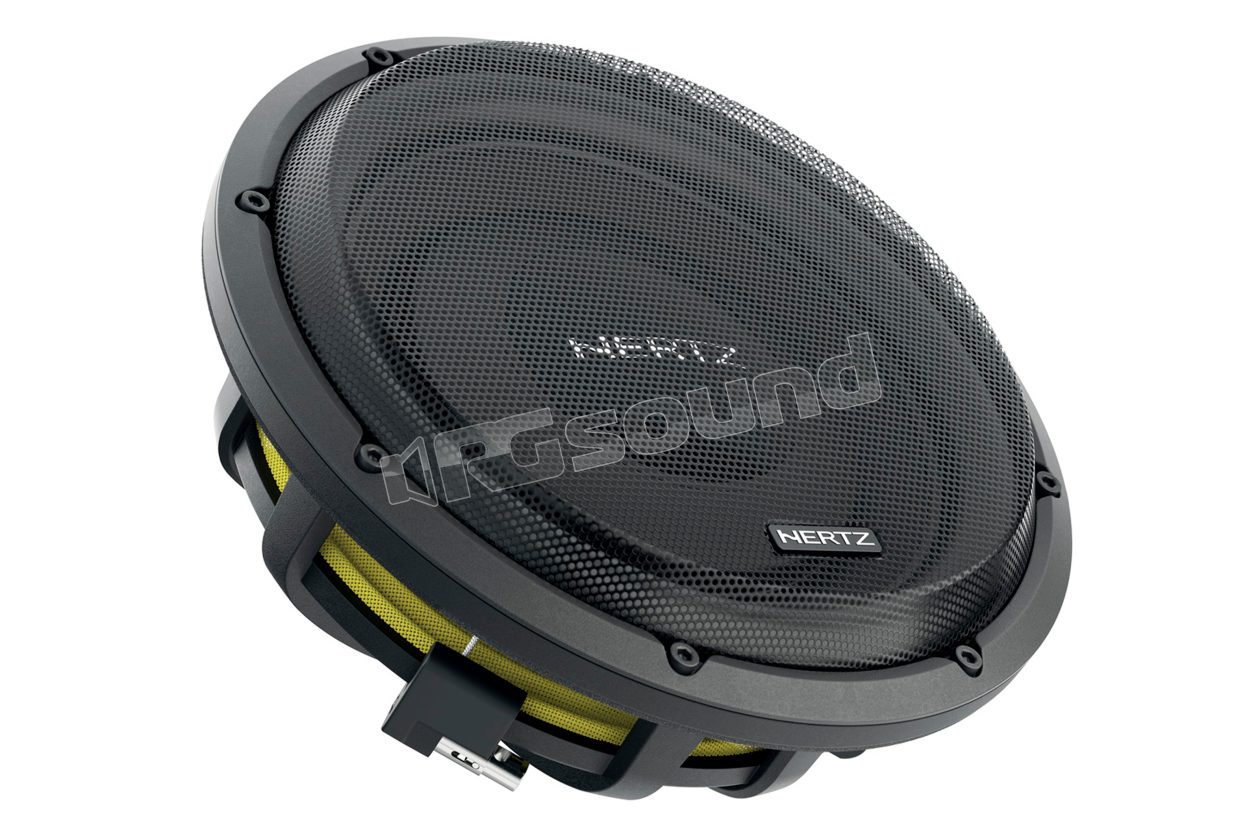

MPS 250 S4 25cm subwoofer with reduced mounting depth

Hertz
Your price:
€ 319,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Frequency Response
25 - 400 Hertz
Impedance
4 Ohm
Installation Depth
82,6 mm

Hertz MPS 250 S4 25cm Subwoofer with Reduced Installation Depth

The Mille PRO bass subwoofers have been designed to achieve exceptional performance even when the available space for subwoofer installation is very limited. MPS 250 S4 is optimized to work in an ultra-compact sealed enclosure starting from just 14 Lt (0.49 Cf). A typical example is a subwoofer enclosure under the rear bench of trucks, where space and height are limited.

Mille PRO subwoofers have a depth/performance ratio never achieved before thanks to the impressive excursion capacity of the cone which is 20% higher than a traditional design. This exceptional achievement was reached thanks to the ingenious design of the suspension assembly characterized by a dedicated support structure for the spider and coil. This solution made it possible to move the magnetic assembly inward, reducing the depth while at the same time maximizing the linear excursion of the cone.


ATTENTION: Grille included

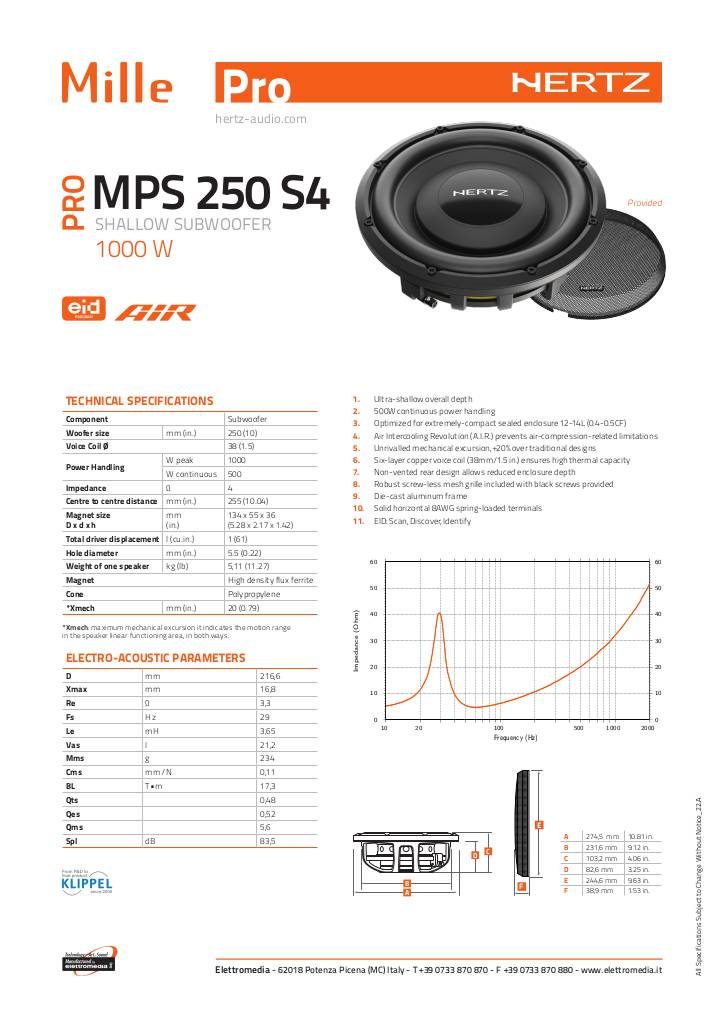

Scheda tecnica

n-20220527114106-hertz-mille-pro-techsheet-mps250-s4.pdf

Hertz MPS 250 S4 Technical Specifications

  • Size mm (inches) 250 (10)
  • Power Handling - Continuous W 500
  • Power Handling - Peak W 1000
  • Impedance Ohm 4
  • Depth mm (inches) 82.6 (3.25)
  • Voice Coil Type Single
  • No subwoofer filter component
  • Voice Coil Ø 38 (1.5)
  • Frequency Response Hz 25 - 400
  • Magnet Size D x d x h mm (inches) 134 x 55 x 36 (5.28 x 2.17 x 1.42)
  • Component Weight kg (lb.) 5.11 (11.27)
  • Magnet High Density Ferrite
  • Cone Polypropylene
  • Xmech mm (inches) 20 (0.79)
€ 319,00 Price incl. VAT
