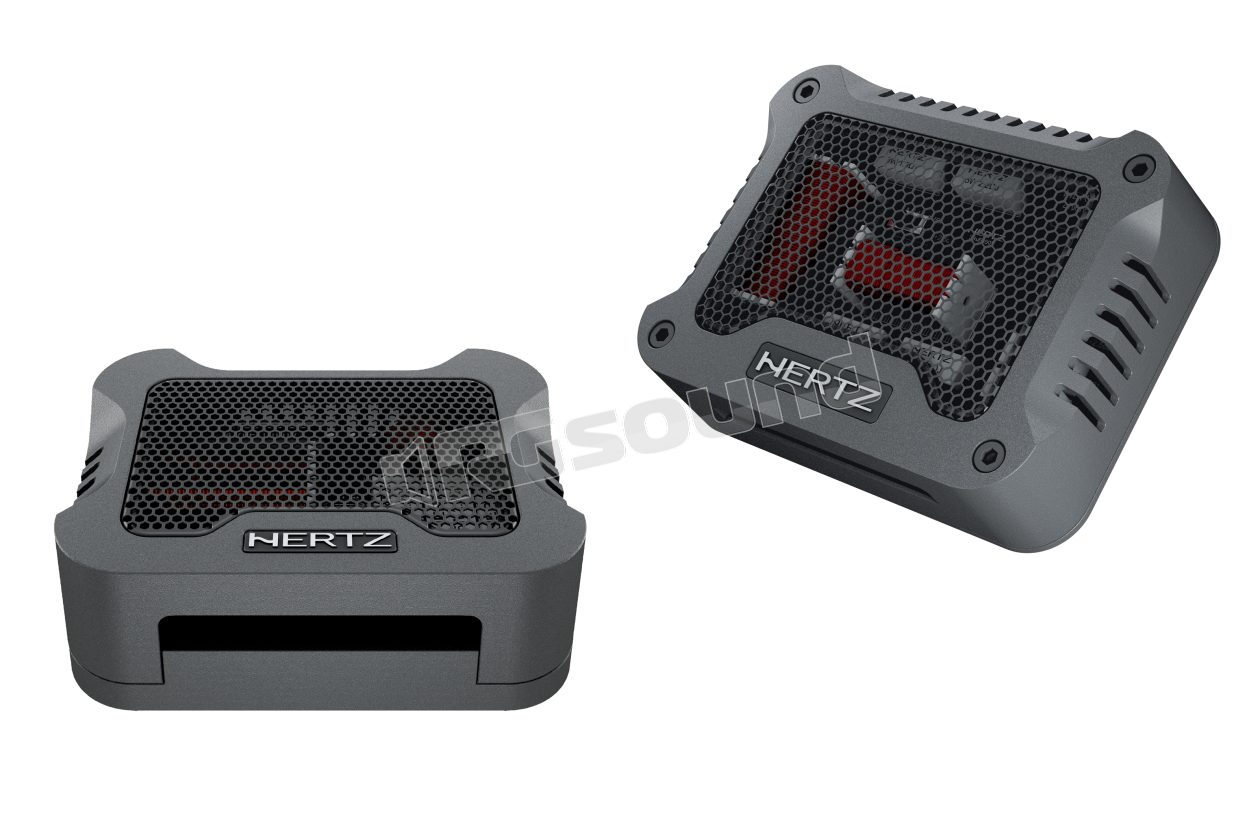

Hertz MPCX 2 TM.3 Pair of passive crossovers for midrange-tweeter Mille Pro Series

These crossovers are designed specifically for the creation of multi-way systems composed of speakers from the Hertz Mille Pro series:

  • Tweeter MP 25.3
  • Midrange MP 70.3

MPCX 2 TM.3 Features

  • Passive crossover developed specifically for the MP 70.3 and MP 25.3 when installed in a multi-amplified 3-way system and combined with a MP 165.3 / MP 165P.3 woofer driven actively.
  • Two-position switch (0 / +2 dB) to adjust the tweeter level and optimize the output of the transducer.
  • Bi-metallized capacitors 160 V polyester film of extremely high quality with an ultra-low DF value, for maximum sound transparency and clear high frequencies.
  • Pure copper coils 1 mm in diameter with low series resistance for reduced dissipation losses in the woofer section where high-current transients are required.
  • Compact design for the benefit of installation simplicity, with ventilation grid on the upper side for efficient heat dissipation.

Scheda tecnica

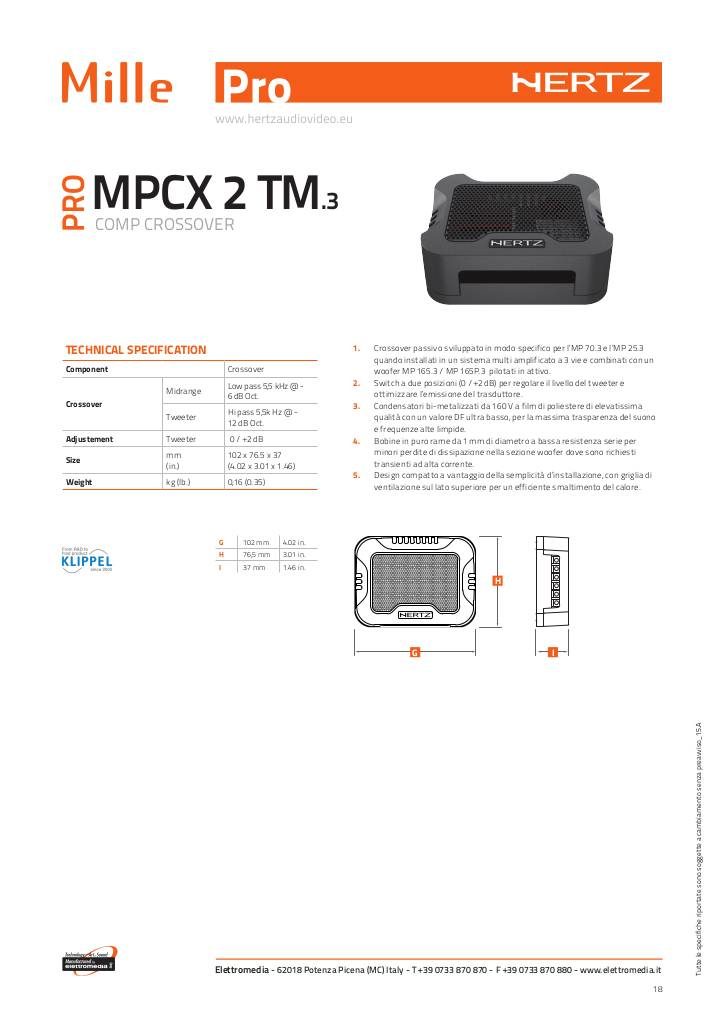

20151014173239-mpcx2-tm-3.pdf

Hertz MPCX 2 TM.3 Technical Specifications

  • Component crossover
  • Tweeter adjustment 0 / +2 dB
  • Crossover
    • Midrange Low pass 5.5 kHz @ - 6 dB Oct.
    • Tweeter Hi pass 5.5 kHz @ - 12 dB Oct.
  • Dimensions 102 x 76.5 x 37 mm
  • Weight 0.16 Kg
