MOVE 12-400A

ETON

Discontinued

Your price:
€ 249,00
Price per single item (VAT included)

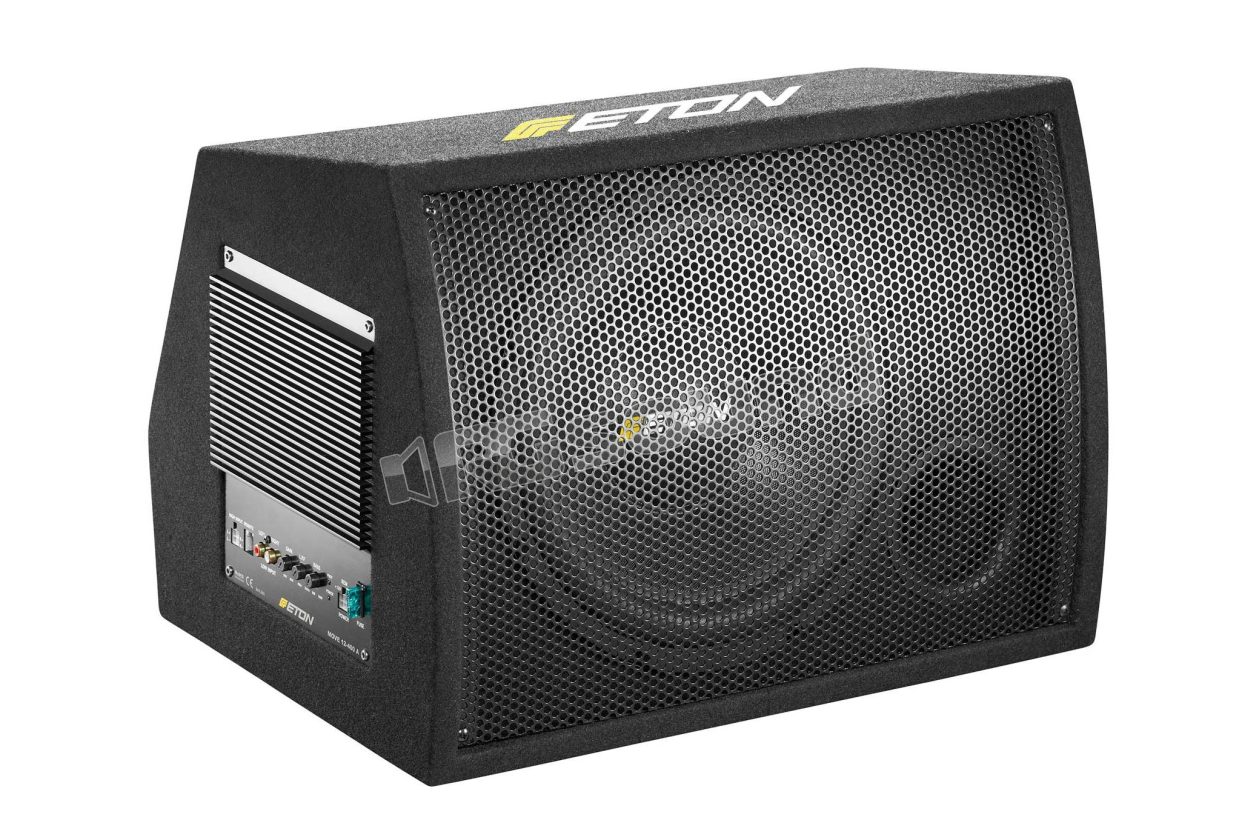

ETON ETON MOVE 12-400A

30 centimeter subwoofer in bass reflex enclosure with integrated amplifier

compact body, covered with durable carpet

integrated amplifier module with 200 W RMS

Controller for input gain, low-pass (40-250 Hz) and bass EQ

Variable Bass Boost 0-18 dB at 45 Hz

high-level inputs with automatic turn-on and low-level inputs

included remote control, woofer grill, accessories for professional installation

The equipment of the active speaker system includes a wired remote control (of which 5 m of cable), with which, however, not the bass level, but the bass boost of 0
can be controlled dB to 18 dB at 45 Hz.

2x2ohms Zn nominal impedance

Maximum amplifier power 200W

mid-range SPL 1W / 1m 87.4 dB

72 millimeter coil diameter

Dimensions (LxWxH) 500 x 350 x 365 mm

INPUT 1 HIGH

Use the 4-pin Molex connector at high level, if you want to connect the speaker outputs of a factory radio directly. (Do not use this connection if you are using the RCA inputs).

2. REMOTE GAIN (RJ45 jack)

This is the connection for the remote control level so that also from the level

can adjust the driver's seat.

3. bass input jack (RCA) RCA

These jacks can be used if the radio has corresponding RCA outputs.

Radios with output levels between 500 mV to 4 V can be connected

be.

4. GAIN CONTROL

Set the amplifier sensitivity in response to the radio output voltage. Note that the volume level is set, but the correct adjustment of the radio used.

5. LPF (Low Pass Filter) CONTROL

Such frequencies between 40 and 250 Hz. Which are reproduced

should. A setting of about 40 Hz. If only reproduce the lowest frequencies,

however, a rectification above 100 250 Hz a lower "incisive"

causes can but also be localizable.

6. BASS EQ CONTROL

This EQ circuit used for the response of the low range, depending on the

increase the size of the vehicle at 45 Hz according to personal taste.

Remember, if you need to exploit the adjustment range of + 18dB of

Amplifier sample the performance of 10 times

Technical characteristics 12-400A

Membrane diameter 300 mm
Mounting depth 200 mm
RMS power handling per voice coil 2 x 500 W
Efficiency 1W / 1mtr. 87.4 dB
Number of voice coils 2
Impedance per voice coil 2 x 2 Ohm
Membrane material glass fibre
Basket material aluminium diecast
Voice coil diameter (mm) 72

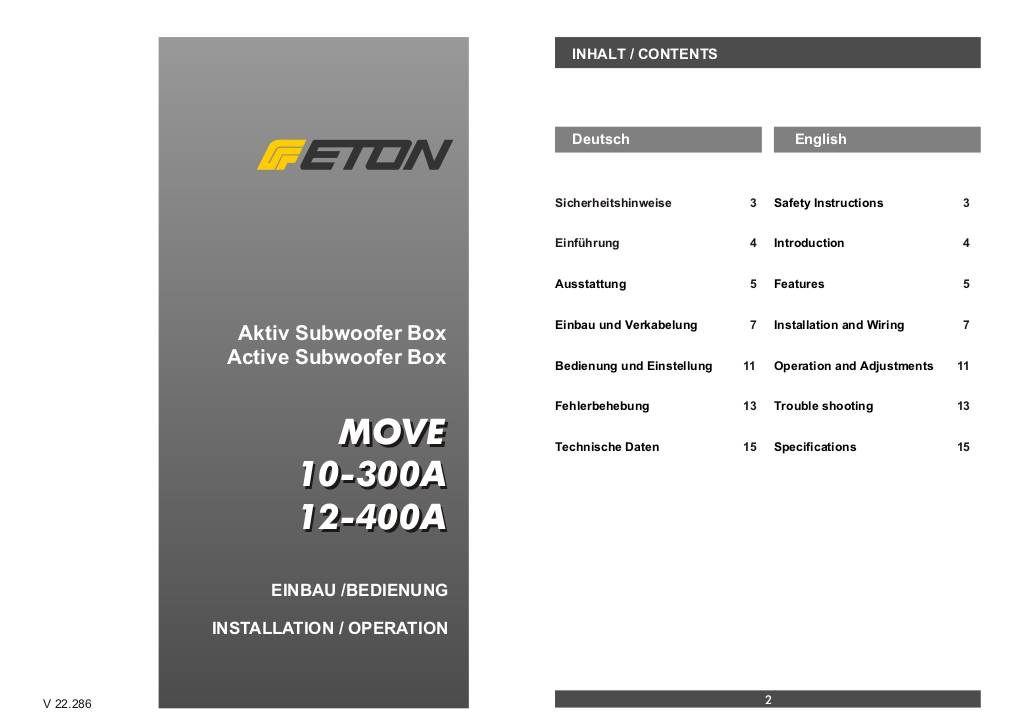

Manuale utente

20160519175612-eton-move-12-400a-bedienungsanleitung-53e16e.pdf
