MOVE 10-300A

ETON

Discontinued

Your price:
€ 219,00
Price per single item (VAT included)

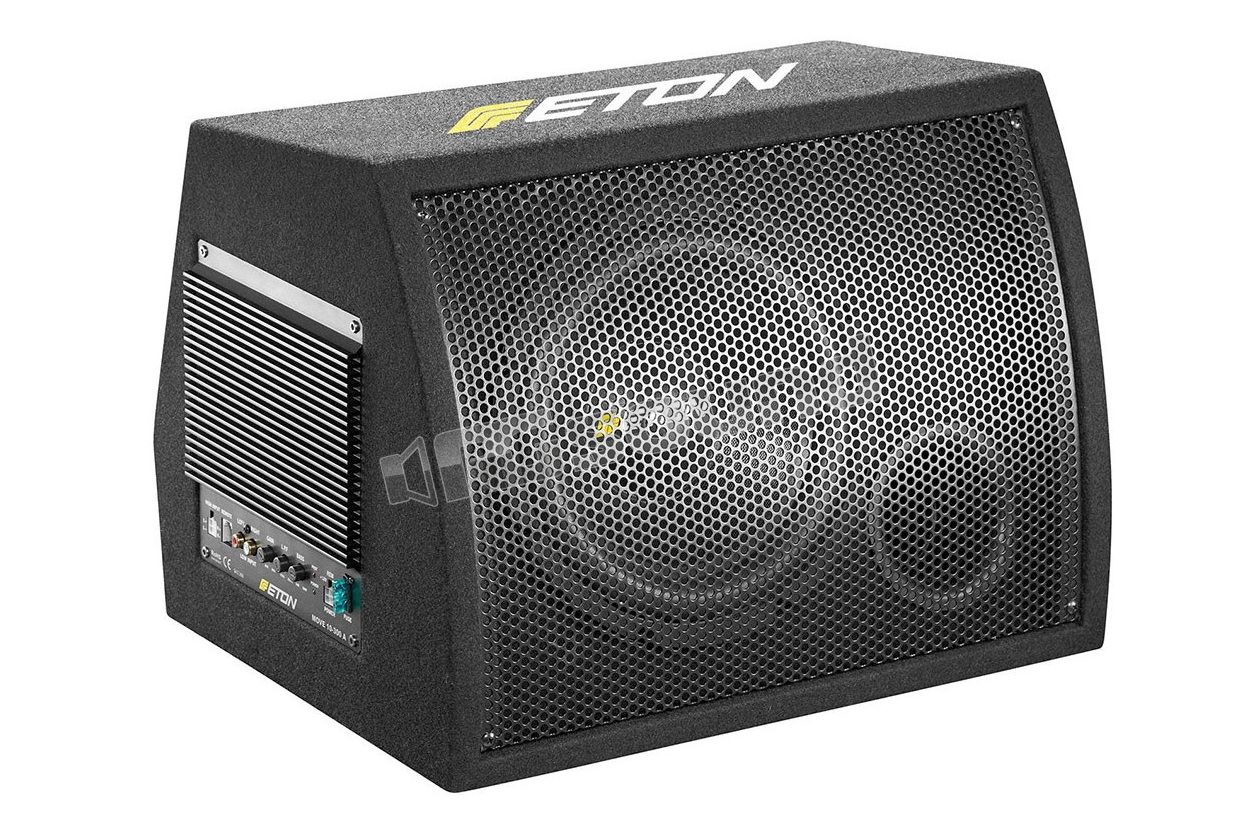

ETON MOVE 10-300A compact powered subwoofer in closed carpeted enclosure. RMS power 150W

Controller for input gain, low-pass (40-250 Hz) and bass EQ

Variable Bass Boost 0-18 dB at 45 Hz

high level inputs with automatic turn-on and low level inputs

includes remote control, woofer grill, accessories for professional installation

The equipment of the active speaker system includes a wired remote control (of which 5 m of cable), with which, however, not the bass level, but the bass boost of 0 can be controlled dB to 18 dB at 45 Hz.

2x2ohms Zn nominal impedance

Maximum amplifier power 150W

Average SPL 1W / 1m 87.4 dB

72 millimeters coil diameter

Dimensions (LxWxH) 450x330x333mm

INPUT 1 HIGH

Use the 4-pin Molex connector at high level if you want to connect the speaker outputs of a factory radio directly. (Do not use this connection if you are using the RCA inputs).

With Remote Auto

2. REMOTE GAIN (RJ45 jack)

This is the connection for the remote control level so that the level can also be adjusted from the driver's seat.

3. bass input jack (RCA) RCA

These jacks can be used if the radio has corresponding RCA outputs.

Radios with output levels between 500 mV to 4 V can be connected.

4. GAIN CONTROL

Set the sensitivity of the amplifier in response to the radio output voltage. Note that the volume level is set, but the correct adaptation of the radio used.

5. LPF (Low Pass Filter) control

Such frequencies between 40 and 250 Hz. Which are reproduced should. A setting of approximately 40 Hz. If only reproduce the lowest frequencies, however, a correction above 100 250 Hz a lower "incisive" causes can but also be locatable.

6. BASS EQ control

This EQ circuit is used for the response of the bass range, depending on the increase in the size of the vehicle at 45 Hz according to personal taste.

Remember, if you need to take advantage of the adjustment range of + 18dB of the amplifier, the performance of the subwoofer must be 10 times active with a lot of bass - ETON MOVE 10-300A / Eton MOVE 12-400A

Technical Features 10-300A

Membrane diameter 300 mm
Mounting depth 200 mm
RMS power handling per voice coil 2 x 500 W
Efficiency 1W / 1mtr. 87.4 dB
Number of voice coils 2
Impedance per voice coil 2 x 2 Ohm
Membrane material glass fibre
Basket material aluminium diecast
Voice coil diameter (mm) 72

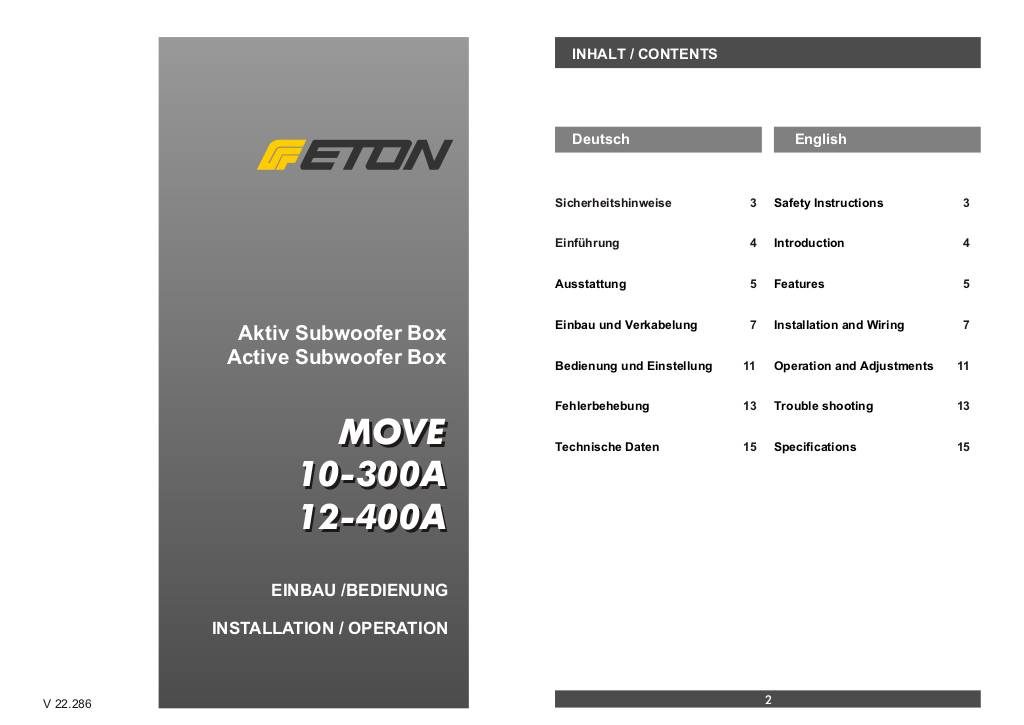

Manuale utente

20160519174326-eton-move-12-400a-bedienungsanleitung-53e16e.pdf
