MLCX3 Reference 3-way crossover 900/4550 Hz - MILLE series

Hertz

Discontinued

Your price:
€ 685,70
Price per pair (VAT included)

Crossover for Hertz ML1600 + ML500R + ML280

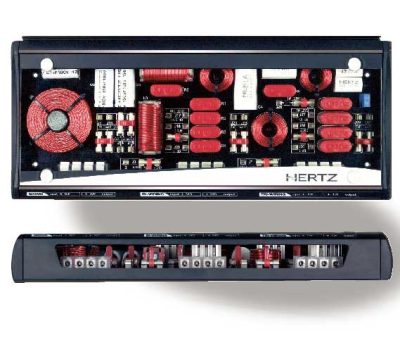

Central frame in die-cast aluminum. Nothing should be left to chance: the filter housing, with a hidden fastening system, is made of inert material to offer high vibration rejection.

Aluminum heat sink for resistors. The metal oxide resistors are connected in parallel and mounted on a special heat sink that increases their performance and power handling. This configuration improves the temperature stabilization of the resistors during operation, significantly improving the acoustic result.

TAD® + HFC®: system for time alignment and listening point optimization. A car interior is a rigidly fixed environment in terms of listening positions and sometimes the forced installation of components places them at different distances and unfavorable angles. With these adjustments both the driver side and passenger side can fully enjoy the acoustic response of the components simply by setting the correct adjustment on the filter.


The filters are designed to expand the possibilities of connection to multi-amplification. The ability to set an infinite number of configurations makes these crossovers truly versatile and universal.

Inductors: Quadralitz copper coils with 1mm wire, low series resistance, high saturation current; Capacitors: polyester film, 100Vdc, very low DF; Layout: FR2 1.7mm shockproof with high thickness tracks.

The filters are equipped with a sensitivity control for the tweeter and midrange. The attenuations are in 1.5 dB steps to be able to calibrate with extremely fine adjustment the emission of the transducer in any car and adapt it to your needs.

scheda tecnica - specifiche - grafico

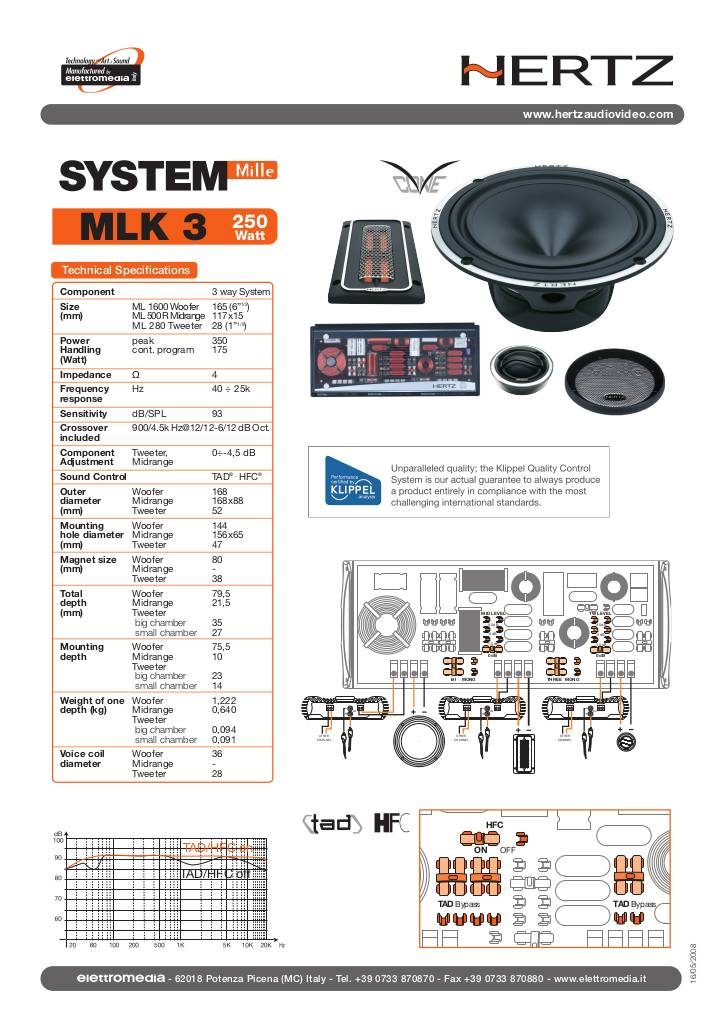

20090403124355-pdf-mlk3-web.pdf
Discontinued
