MLCX 2 TW.3 Legend

Hertz

Discontinued

Your price:
€ 199,00
Price per pair (VAT included)

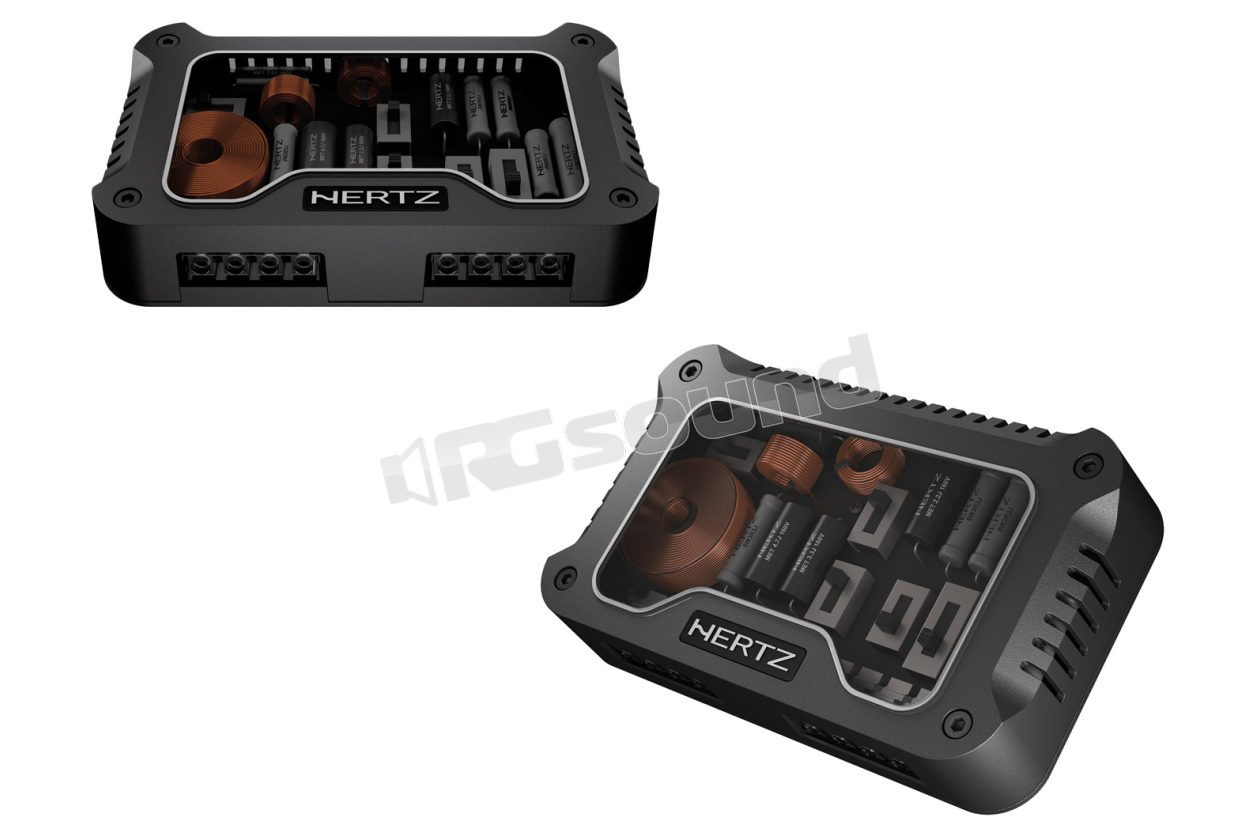

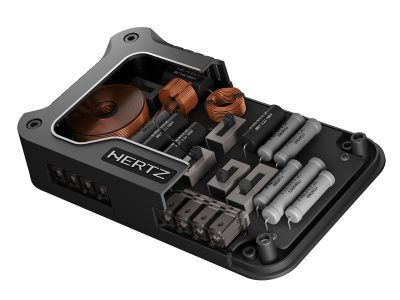

Hertz MLCX 2 TW.3 Legend pair of 2-way passive crossovers, bi-amplifiable.

Dedicated for the new Hertz Mille series:

  • ML 1650.3 + ML 280.3
  • ML 1800.3 + ML 280.3

Hertz MLCX 2 TW.3 Features

1. Possibility of bi-amplification, selectable through a dedicated switch with high current capacity.

2. "Mid-Contour" control with two positions to linearize the mid-bass frequency response based on the woofer placement in the cabin and the listener's preferred sound.

3. "Hi-Contour" control with two positions to linearize the high frequency response based on the tweeter placement in the cabin and the listener's preferred sound.

4. The "Mid-Contour" together with the "Hi-Contour" allows you to use the MLCX 2 TW.3 to build a two-way system based on the ML 1650.3 or ML 1800.3 woofers together with the ML 280.3 tweeter.

5. Tweeter sensitivity control with three positions, with attenuation in 2 dB steps via selector, to fine-tune the transducer emission.

6. "Hi-Boost" control activatable via selector to provide more linear tweeter emission above 10 kHz, when positioned off-axis with the listeners.

7. High-quality bi-metallized 160v polyester film capacitors with ultra-low DF value, for maximum sound transparency and detailed mid-high frequencies.

8. Inductors made with air-wound coils with pure copper wire 1 mm in diameter, for a high threshold of magnetic flux saturation and low losses in the woofer areas where high transient currents are required.

9. High-power Wirewound resistors, to ensure maximum performance stability even at high operating temperatures. Wirewound construction allows for low parasitic series inductance to reduce loss at high frequencies, especially for resistors in series with the tweeter.

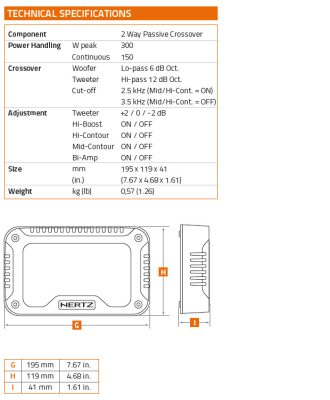

Scheda tecnica

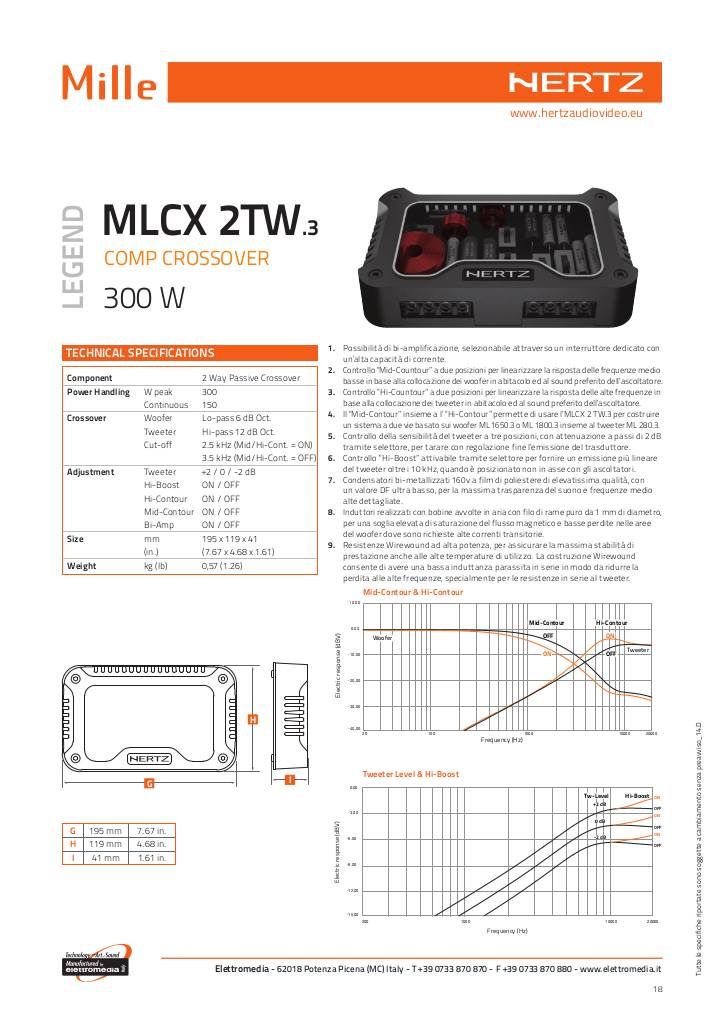

20141023095543-hertz-mlcx-2tw-3-mille-3.pdf

Manuale

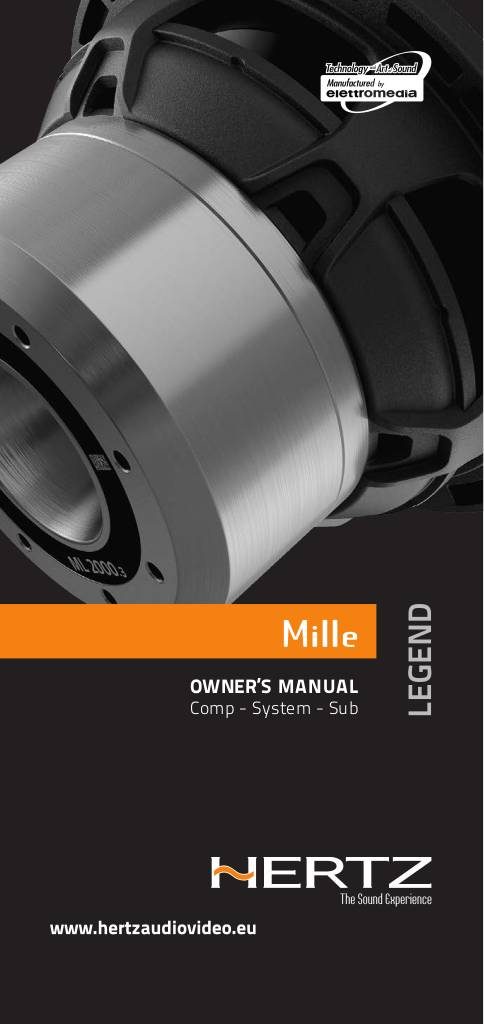

20141205091139-esec-owners-manual-speaker-mille-revc-web.pdf

Pair crossover MLCX 2TW.3
Discontinued
