MLCX 2 Reference 2-way crossover 2800 Hz - MILLE series

Hertz

Discontinued

Your price:
€ 494,10
Price per pair (VAT included)

Crossover for Hertz ML1600 + ML280

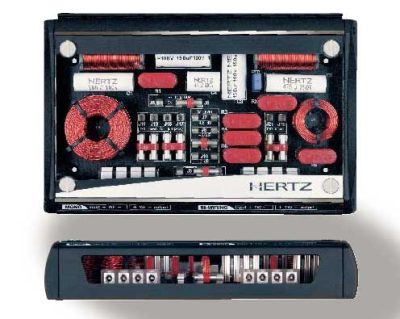

Central frame in aluminum die-casting. Nothing should be left to chance: the filter housing, with a concealed fastening system, is made of inert material to offer high vibration rejection.

Aluminum heatsink for resistors. Metal oxide resistors are connected in parallel and mounted on a special heatsink that increases their performance and power handling. This configuration increases the temperature stabilization of the resistors during operation, significantly improving the acoustic result.

TAD® + HFC®: system for temporal alignment and listening point optimization. A car interior is an environment with rigidly fixed listening positions and sometimes the forced installation of components places them at different distances and unfavorable angles. With these adjustments both the driver side and passenger side will be able to fully enjoy the acoustic response of the components simply by setting the correct adjustment on the filter.



The filters are designed to expand the connection possibilities for multi-amplification. The ability to set an infinite number of configurations makes these crossovers truly versatile and universal.

Inductors: Quadralitz copper coils with 1mm wire, low series resistance, high saturation current; Capacitors: polyester film, 100Vdc, very low DF; Layout: FR2 at 1.7mm shockproof with high thickness tracks.

The filters are equipped with sensitivity control for the tweeter and midrange. The attenuations are in 1.5 dB steps to allow extremely fine adjustment of the transducer output in any car and adapt it to your needs.

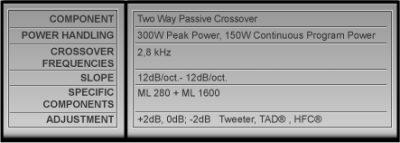

scheda tecnica - specifiche - grafico

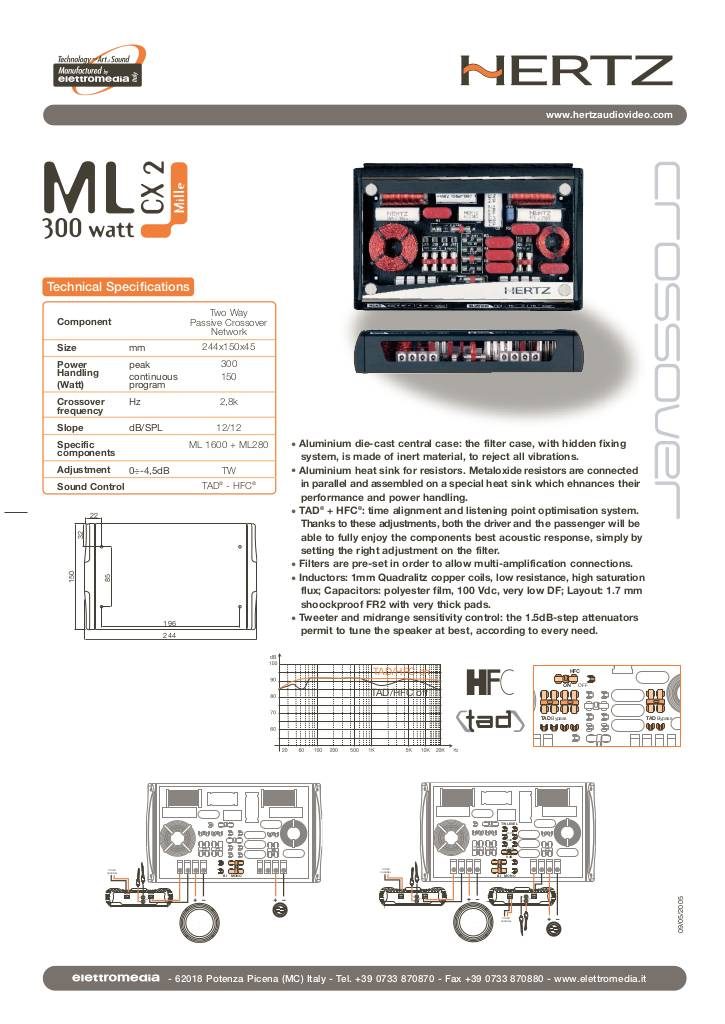

20061014195618-pdf-mlcx2-web.pdf
Discontinued
