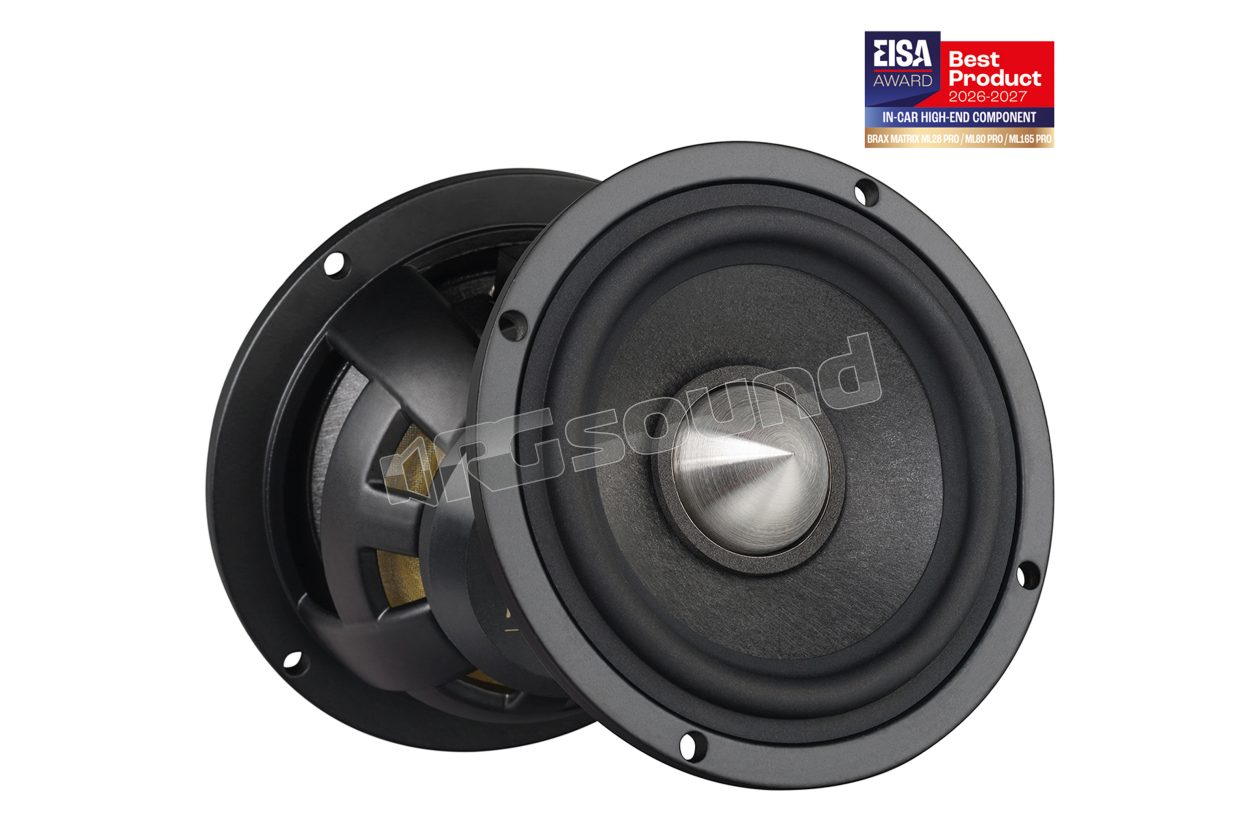

ML80 PRO Pair of High-End 80 mm midranges

Brax
Your price:
€ 940,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
80 mm
MAX Power
150 Watt
RMS Power
100 Watt
Frequency Response
250 - 6000 Hertz
Sensitivity
91 dB
Impedance
4 Ohm
Installation Depth
34 mm
Midrange Cone Material
Fibra di carbonio

BRAX ML80 PRO 80 mm High-End Midrange Handcrafted with Phase Plug

With the MATRIX ML80 PRO, BRAX takes midrange reproduction to a completely new level. As a completely redesigned successor to the MATRIX ML3, it carries forward the same uncompromising philosophy, but with an entirely new concept, cutting-edge materials, and meticulous attention to detail. The result is a midrange speaker that reproduces music with absolute purity, dynamics, and emotional depth.

Multi-layer Carbon Fabric Cone: Lightweight, Rigid, and Resonance-Free

The newly conceived multi-layer carbon fabric cone of the ML80 PRO model was designed and manufactured in close collaboration with renowned expert Dr. Kurt Müller. Its carbon layer structure combines extreme rigidity with minimal mass, effectively reducing unwanted resonances.

A specially shaped reinforcement collar on the rear - right at the transition with the surround - significantly increases torsional rigidity and prevents deformation even at high excursion levels. The straight cone geometry at the voice coil area optimizes power transfer and ensures exceptionally precise and controlled sound radiation.

The fine-weave front coating with closed-pore surface gives the cone an elegant, silk-like matte appearance with a refined tactile feel, while ensuring maximum dimensional stability and long-term durability.

ML80 PRO Features

  • Ultra-lightweight multi-layer carbon fiber cone - combines excellent stiffness-to-weight ratio with reduced resonance for precise, natural, and highly dynamic sound reproduction
  • Solid stainless steel integrated phase plug - ensures perfectly controlled dispersion and precise midrange reproduction
  • Newly conceived high-damping rubber surround - made from high-quality butyl rubber for maximum cone control, reduced distortion, and exceptional sound reproduction
  • Aerodynamically shaped cast aluminum basket - enables ideal voice coil ventilation while minimizing air flow noise for consistently high performance even at demanding levels
  • High-strength Nomex spider - made from meta-aramid fabric to ensure exceptional dimensional stability and long-term reliability even under extreme conditions
  • Neodymium push-pull magnetic system machined with extreme precision - ensures excellent magnetic linearity for minimal distortion, clean dynamics, and maximum control at high power levels
  • Vented spider - improves air flow between the spider and magnetic system for consistent performance even at elevated sound pressure levels
  • 24-karat gold-plated terminals - ensure maximum conductivity and signal quality
  • Optional stainless steel support ring with grille (MR3) - adds a refined aesthetic touch and offers a secure and elegant mounting solution
  • Made in Germany - developed and manufactured for uncompromising reference-level sound quality

BRAX MATRIX ML80 PRO Technical Specifications

  • RMS / Max Power P 100 / 150 Watt (high-pass filter > 300 Hz at 24 dB/oct.)
  • Impedance Z 4 Ω
  • DC Resistance Re 3.4 Ω
  • Frequency Response 250 Hz - 6,000 Hz
  • Resonance Frequency Fs 114 Hz
  • Mechanical Q Factor Qms 1.71
  • Electrical Q Factor Qes 0.46
  • Total Q Factor Qts 0.36
  • Air Volume Vas 1.15 L
  • Sensitivity SPL
    • 91 dB at 2.83 V / 1 m
    • 88 dB at 1 W / 1 m
  • Moving Mass Mms 3.0 g
  • Multi-layer Carbon Fabric Cone
  • Mechanical Resistance Rms 1.26 kg/s
  • Voice Coil Diameter ø 25 mm / 0.75"
  • Maximum Linear Excursion Xlin +/- 1.5 mm
  • Maximum Mechanical Excursion Xmax +/- 4.0 mm
  • Outer Diameter ø 92 mm / 3.6"
  • Mounting Hole Diameter ø 76 mm / 3.0"
  • Mounting Depth 34 mm / 1.4"
