ML8 SUB High-efficiency 20cm subwoofer

Brax
Your price:
€ 1064,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
200 mm
MAX Power
800 Watt
RMS Power
400 Watt
Sensitivity
83 dB
Impedance
2 + 2 Ohm
Installation Depth
92 mm
Woofer Material
Cono MicroSphere

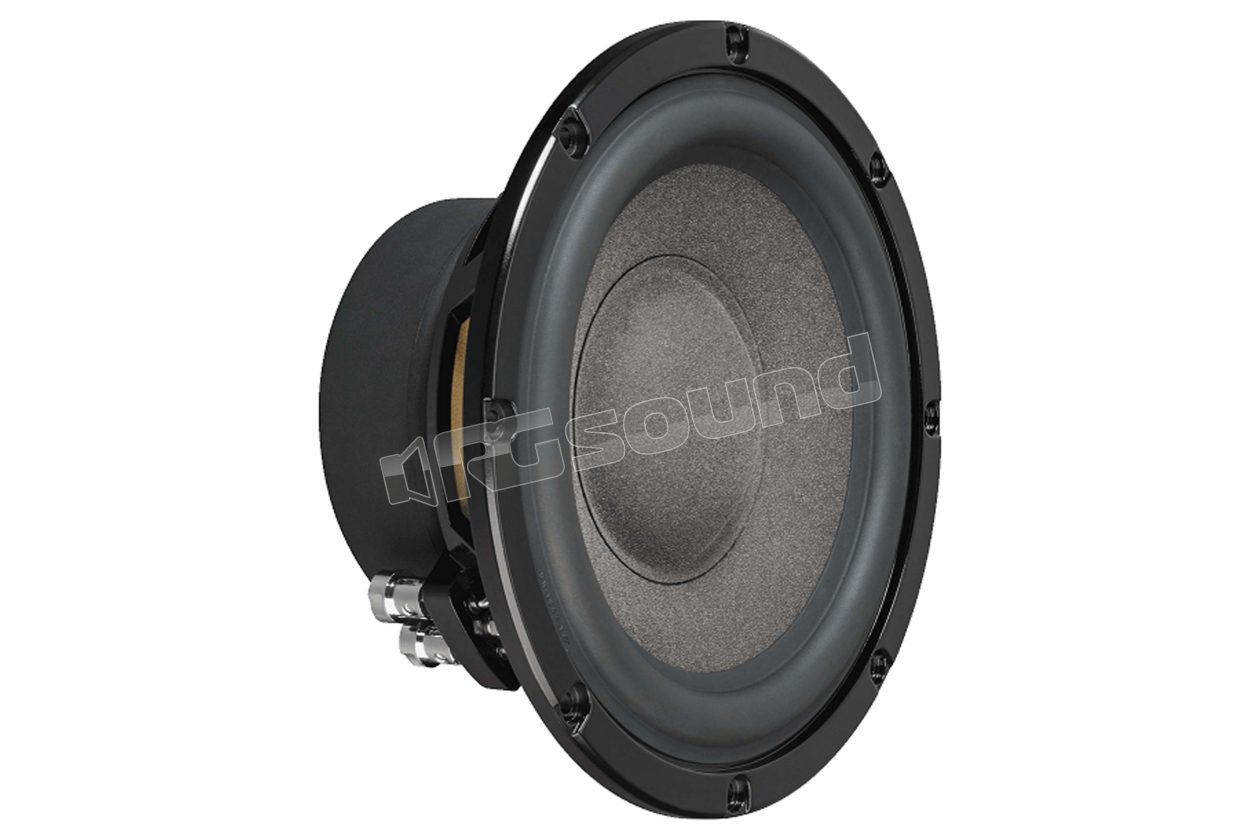

Brax ML8 SUB 200 mm (8") high efficiency subwoofer with dual voice coil

The BRAX Matrix ML8 subwoofer sets new standards for precise and controlled bass response. It stands out, among other things, with a unique cone and the brand new "MicroSphere" coating. This patented technology forms hollow ceramic spheres with a diameter of only 75 micron in a polyamide layer applied to the cone. The special coating not only improves the rigidity of the hand-made cone, but also significantly improves its internal damping.

The high rigidity combined with lower weight results in a lower total Q factor and thus better impulse response. This unit reproduces sound with the highest precision and unparalleled depth and dynamics, which is of course also why this unit is used in one of the best Hi-Fi cars in the world.

Brax ML8 SUB Technical Specifications

  • RMS / max. power 400/800 Watt
  • Impedance 2 x 2 Ω
  • DC resistance Re 3.4 Ω
  • Resonance frequency Fs 32 Hz
  • Mechanical Q factor Qms 12.14
  • Electrical Q factor Qes 0.61
  • Total Q factor Qts 0.57
  • Compliance Cms 351 µm / N
  • Equivalent air volume Vas 22 L
  • Force factor B * I 7.40 Tm
  • Efficiency 1 W / 1 m SPL 83 dB
  • Cone area Sd 219 cm²
  • Moving mass Mms 33.9 g
  • Cone material Paper cone with "MicroSphere" coating consisting of micro ceramic hollow spheres embedded in a polymer layer
  • Mechanical resistance Rms 0.81 kg / s
  • Voice coil diameter ø 50 mm / 2.0 "
  • Voice coil winding height 18 mm / 0.71 "
  • Max. linear excursion Xmax +/- 6 mm
  • External diameter ø 222 mm / 8.7 "
  • Installation diameter ø 191 mm / 7.5 "
  • Installation depth 92 mm / 3.6 "

Recommended enclosure volumes

  • Sealed enclosure
    • Net volume 22 L
    • Lower limit frequency (-3dB) 60 Hz
  • Vented enclosure: not recommended
€ 1064,00 Price incl. VAT
