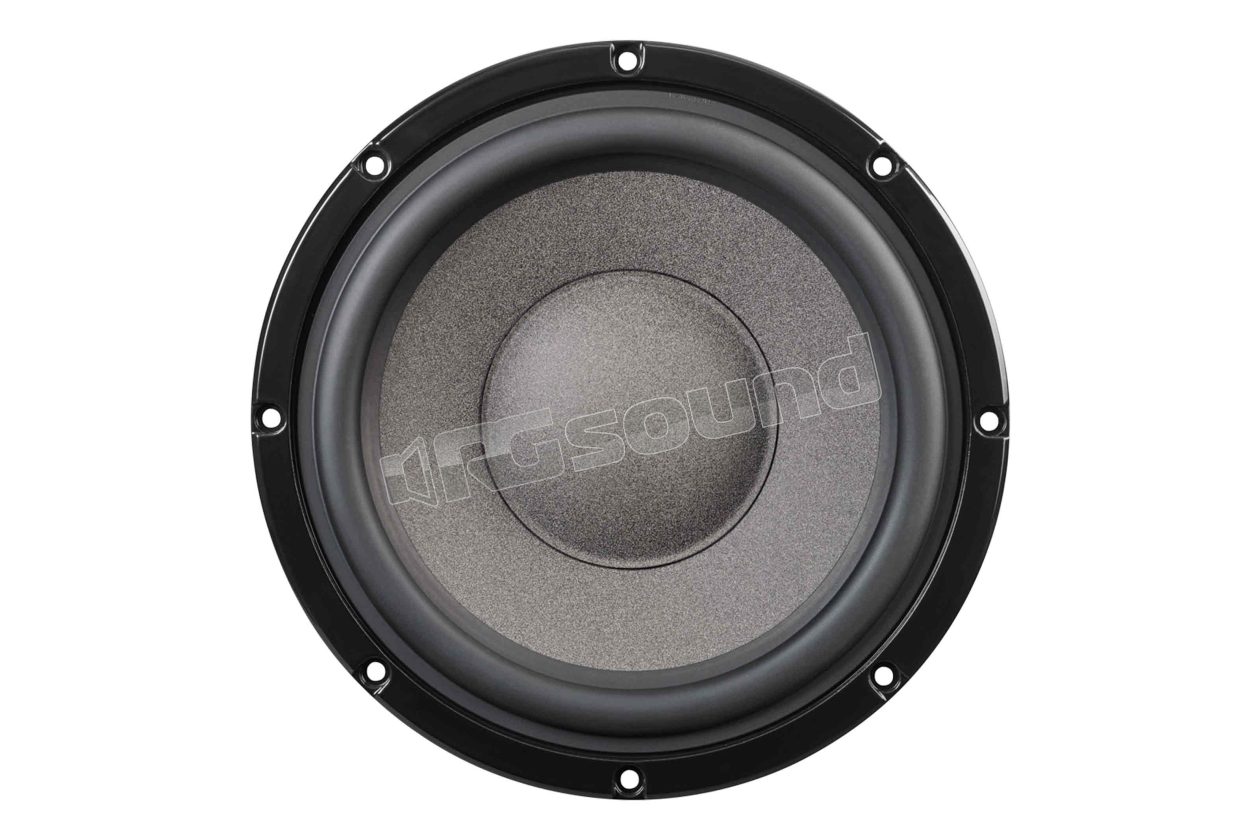

ML10 SUB 25 cm high-end subwoofer with 2 x 2 Ohm dual voice coil

Brax
Your price:
€ 1140,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1200 Watt
RMS Power
600 Watt
Sensitivity
87 dB
Impedance
4 Ohm
Installation Depth
114 mm
Woofer Material
Cono MicroSphere

Brax Matrix ML10 Subwoofer high-end 10 inch with dual voice coil 2 x 2 Ohm

The legendary BRAX MATRIX speaker series, for many years synonymous with cutting-edge sound quality, is now completed with the ML10 SUB. Developed and produced without compromises like all BRAX speakers, this subwoofer is the acoustic reference point to measure up to. Thanks to the use of the new dual voice coil 2 x 2 Ohm, the ML10 SUB subwoofer allows for extremely flexible connection configurations and thus achieves an extremely clean and maximally controlled bass reproduction, like never before.

The separate voice coils with four massive connection terminals allow three different configurations: 1 x 4 Ohm, 2 x 2 Ohm or 1 x 1 Ohm with extraordinary power handling up to 1,200 Watt. One of the secrets of the BRAX ML10 SUB lies in its unique cone, more precisely in its "MicroSphere" coating. This coating gives the hand-carved cone the highest level of acoustic precision for an incomparable reproduction. This patented technology incorporates hollow ceramic spheres with a diameter of just 75 µm in a polyamide layer applied to the cone. This special coating not only improves rigidity, but also the internal damping of the cone.

However, these stabilization measures do not increase the moving mass. Compared to other car hifi subwoofers, the cone is even lighter, which not only results in a lower total Q factor, but further improves the impulse response. Every BRAX product stands out for its puristic design and perfect workmanship in every detail - and of course the BRAX ML10 SUB is no exception! The extremely linear drive of the magnet with precisely machined pole plates for minimum distortion, the large and multi-ventilated voice coil for maximum electrical power handling and the aerodynamically optimized and stable die-cast basket guarantee uncompromised bass reproduction at the highest levels. Of course, the ML10 SUB comes in a noble wooden box with its own serial number, which is registered in a service database.

Matrix ML10 SUB Features

  • The exceptionally rigid paper cone hand-crafted with the exclusive "MicroSphere" coating, consisting of hollow ceramic microspheres inserted in a polymer layer, offers the best possible impulse response
  • Specially shaped rubber surround for long linear cone excursion
  • Dual voice coil 2 x 2 Ohm with exceptional winding height for high linear excursion and minimum possible distortion
  • Optimized voice coil ventilation through large mesh-protected holes in the T-yoke and basket for almost no compression effect and maximum heat dissipation
  • Specially developed die-cast aluminum basket, aerodynamically optimized and extremely solid
  • Extremely powerful and precisely machined magnet system for maximum magnetic flux linearity
  • Massive push terminals for large gauge wires

Manuale utente

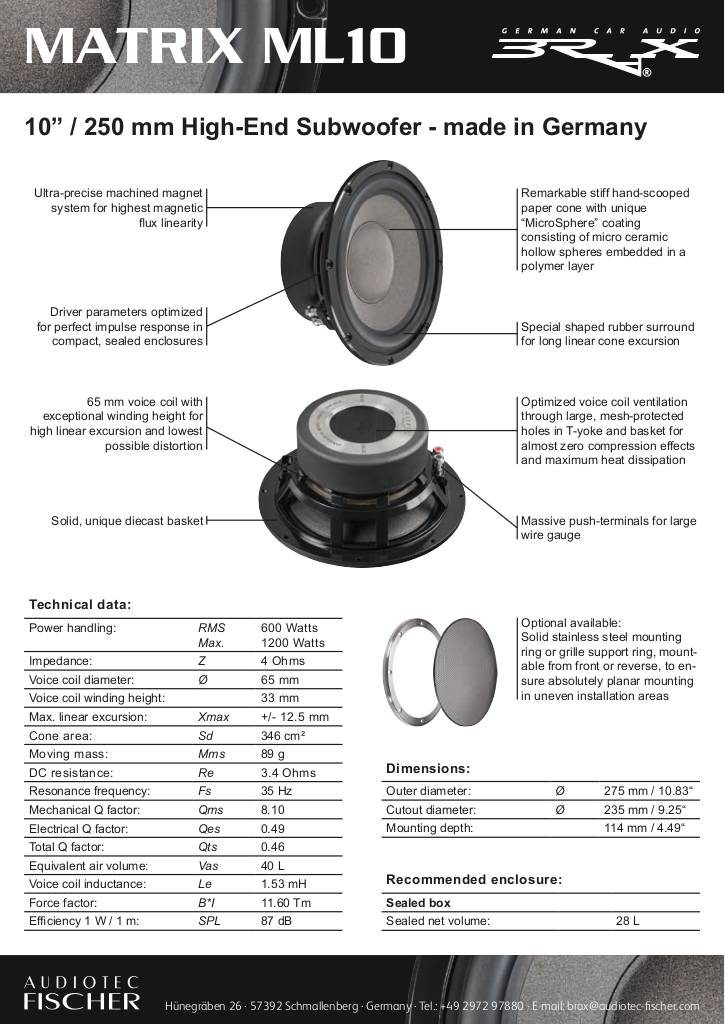

n-20180720163643-db-brax-matrix-ml10.pdf

Brax Matrix ML10 SUB Technical Specifications

  • RMS / max. Power P 600/1200 Watt
  • Impedance Z 4 Ω
  • DC Resistance Re 3.4 Ω
  • Resonance Frequency Fs 35 Hz
  • Mechanical Q Factor Qms 8.10
  • Electrical Q Factor Qes 0.49
  • Total Q Factor Qts 0.46
  • Compliance Cms 241 μm / N
  • Equivalent Air Volume Vas 40 L
  • Force Factor B * I 11.60 Tm
  • Efficiency 1 W / 1 m SPL 87 dB
  • Cone Area Sd 346 cm²
  • Moving Mass Mms 89 g
  • Paper cone with "MicroSphere" cone consisting of micro hollow ceramic spheres incorporated in a polymer layer
  • Mechanical Resistance Rms 2.37 kg / s
  • Voice Coil Diameter ø 65 mm / 2.6 "
  • Voice Coil Winding Height 33 mm / 1.3 "
  • Max. Linear Excursion Xmax +/- 12.5 mm
  • Outer Diameter ø 275 mm / 10.8 "
  • Installation Diameter ø 235 mm / 9.3 "
  • Installation Depth 114 mm / 4.5 "

Recommended Volumes

  • Sealed box
  • Net Volume 28 L
  • Lower Limit Frequency (-3 dB) 45 Hz
€ 1140,00 Price incl. VAT
