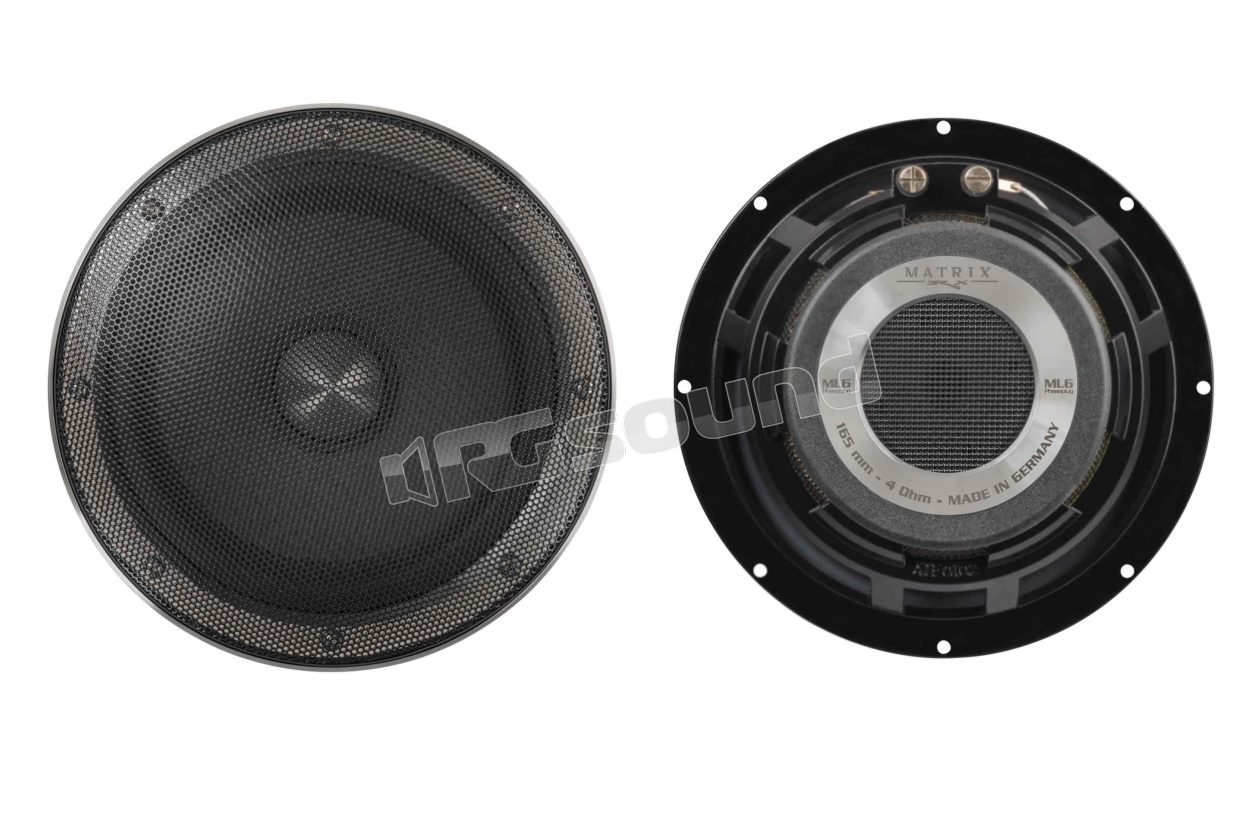

ML 6P 165mm woofer with Microsphere cone, Matrix series

Brax

Discontinued

Your price:
€ 1121,00
Price per pair (VAT included)
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
170 Watt
RMS Power
120 Watt
Sensitivity
88,5 dB
Impedance
4 Ohm
Installation Depth
64 mm
Woofer Material
Cono MicroSphere

Brax ML 6P 165mm Woofer with Microsphere Cone Matrix Series

165 mm woofer based on cutting-edge technology and sophisticated materials to meet the requirements of the BRAX brand: pure and precise sound reproduction.

The exclusive "Microsphere" coating of the ML6P cone ensures excellent precision in sound reproduction. This patented technology incorporates hollow ceramic spheres with a diameter of only 75 μm in a polyamide layer applied to the cone. The special coating ensures perfect internal damping without negatively affecting cone weight. This innovative coating increases the rigidity of the hand-carved cone and allows the woofer to perform with a more dynamic and pronounced range.

The delicate and valuable appearance reveals a series of intelligent details such as the solid stainless steel phase plug for improved off-axis response and further reduced compression effects, the perfectly linear magnet structure for the least possible distortion, the ventilated multiple voice-coil for high power handling as well as the rigid and aerodynamically efficient die-cast basket. Used as a low-frequency provider, ML6P perfects audiophile audio concepts designed entirely for authentic musical reproduction and enjoyment.

As with every MATRIX product, each speaker set receives its unique serial number, registered in our service database. The exclusive wooden packaging further emphasizes the high-end character of BRAX.

An optional stainless steel mounting ring set with grille is also available (MR6). The solid stainless steel ring can be used as a mounting ring or grill support ring depending on the mounting position.

ML 6P Features

  • Very rigid and light paper cone with unique "MicroSphere" coating made up of micro hollow ceramic spheres embedded in a polymer layer offers the best possible impulse response without any sound coloration
  • Solid stainless steel phase plug improves off-axis response and further reduces compression effects
  • Shaped rubber surrounds for long linear cone excursion
  • 24 karat gold-plated terminals for maximum conductivity
  • Aerodynamic aluminum die-cast basket with optimized voice coil ventilation
  • Magnet system with extremely precise machining for maximum linearity of magnetic flux

Scheda tecnica

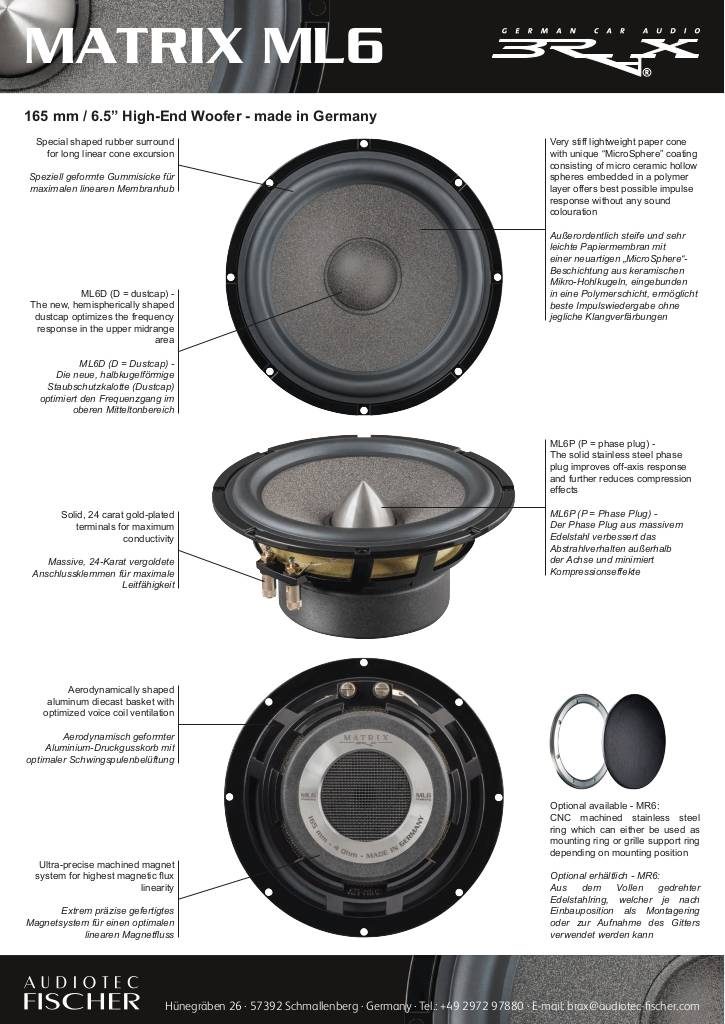

n-20180720162906-db-brax-matrix-ml6.pdf

Brax ML 6P Technical Specifications

  • RMS / max. Power 120/170 Watt
  • Impedance 4 Ω
  • DC Resistance 3.6 Ω
  • Resonance Frequency 50 Hz
  • Mechanical Q Factor 6.20
  • Electrical Q Factor 0.52
  • Total Q Factor 0.48
  • Compliance 670 μm / N
  • Equivalent Air Volume 17.6 L
  • Force Factor 5.7 Tm
  • Efficiency SPL 88.5 dB
  • Cone Area 137 cm²
  • Moving Mass 14.8 g
  • Paper cone with "MicroSphere" cone made of micro hollow ceramic spheres embedded in a polymer layer
  • Mechanical Resistance 0.76 kg/s
  • Voice Coil Diameter 37 mm / 1.5"
  • Voice Coil Winding Height 14 mm / 0.6"
  • Max. Linear Excursion Xmax +/- 4.0 mm
  • Outer Diameter ø 167 mm / 6.5 "
  • Installation Diameter ø 143 mm / 5.6"
  • Installation Depth 64 mm / 2.5"

Recommended Volumes

  • Sealed Enclosure
    • Net Volume 8 L
    • Lower Limit Frequency (-3 dB) 68 Hz
  • Ported Enclosure
    • Net Volume 15 L
    • Port Diameter ø 60 mm / 2.4"
    • Port Area 28 cm²
    • Port Length 19 cm / 7.5"
    • Port Tuning Frequency Fb 45 Hz
    • Lower Limit Frequency (-3 dB) 48 Hz
