ML 500R

Hertz

Discontinued

Your price:
€ 329,00
Price per pair (VAT included)

The Hertz ML500R are ribbon midrange drivers of outstanding audio quality; extremely performant and fast, they stand out for their high angular dispersion and dynamics.

This loudspeaker is decidedly faster than traditional cone midrange drivers, even though, clearly, it cannot replicate their characteristics on the way down. The minimum usage frequency is indeed stated at 700Hz, although we recommend starting around 1000Hz with a decisive cut, preferably electronic.
If on one hand the Hertz ML 500R cannot go down much lower, on the other hand it behaves quite differently on the high end, in fact it rises up to 35000Hz, making the use of a tweeter effectively superfluous provided proper positioning on the pillar or dashboard is carried out.
These midranges allow you to recreate a vivid and realistic soundstage, a precise arrangement of sound planes marked out to be combined with a surprising three-dimensionality of listening.
Its presence in two-way systems requires an installation perfectly in axis with the listening point.
So configured it displays an enviable response, but its technical characteristics express maximum performance in three-way systems, where integration with woofer and tweeter is extremely natural, giving life to a system without compromises.

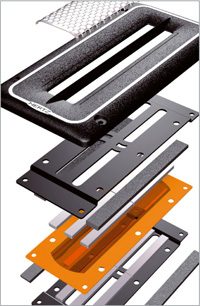

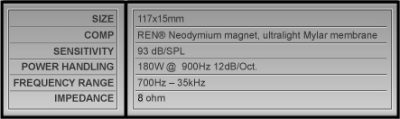

Technical characteristics:

  • Acoustically transparent aluminum grille
  • Die-cast aluminum chassis with exponential design for excellent off-axis response.
  • Ultra-lightweight Mylar membrane with silver surface deposit for an extraordinarily linear response
  • Magnet in Push-pull REN® configuration consisting of 12 neodymium magnetic pads for stunning performance.
  • Rubber seals on the loudspeaker basket to dampen resonances.
  • Extremely linear dipole emission.
  • Installation dimensions: 168x88 mm
  • Thickness: 21.5 mm
  • Max power: 180 W
  • Sensitivity 93 dB
  • Frequency response: 180-35000 Hz
  • Impedance: 7.5 Ohm

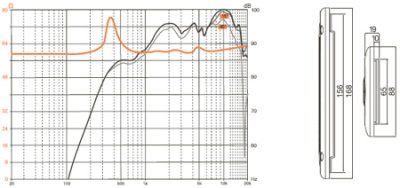

scheda tecnica - specifiche - grafico

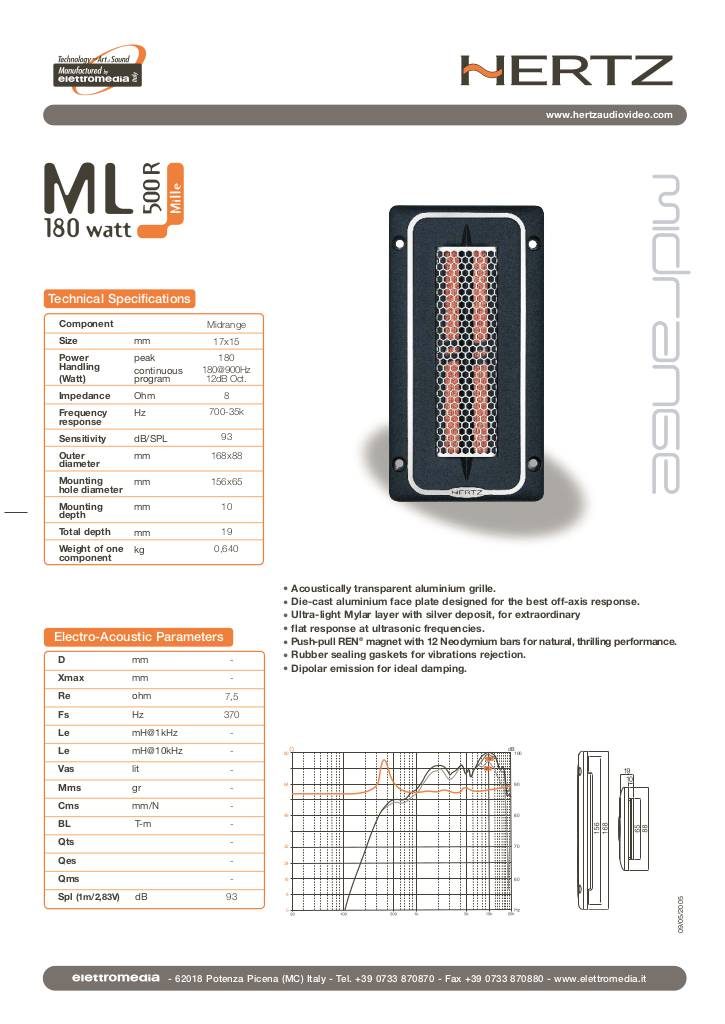

20061005184535-pdf-ml500r-web.pdf
Discontinued
