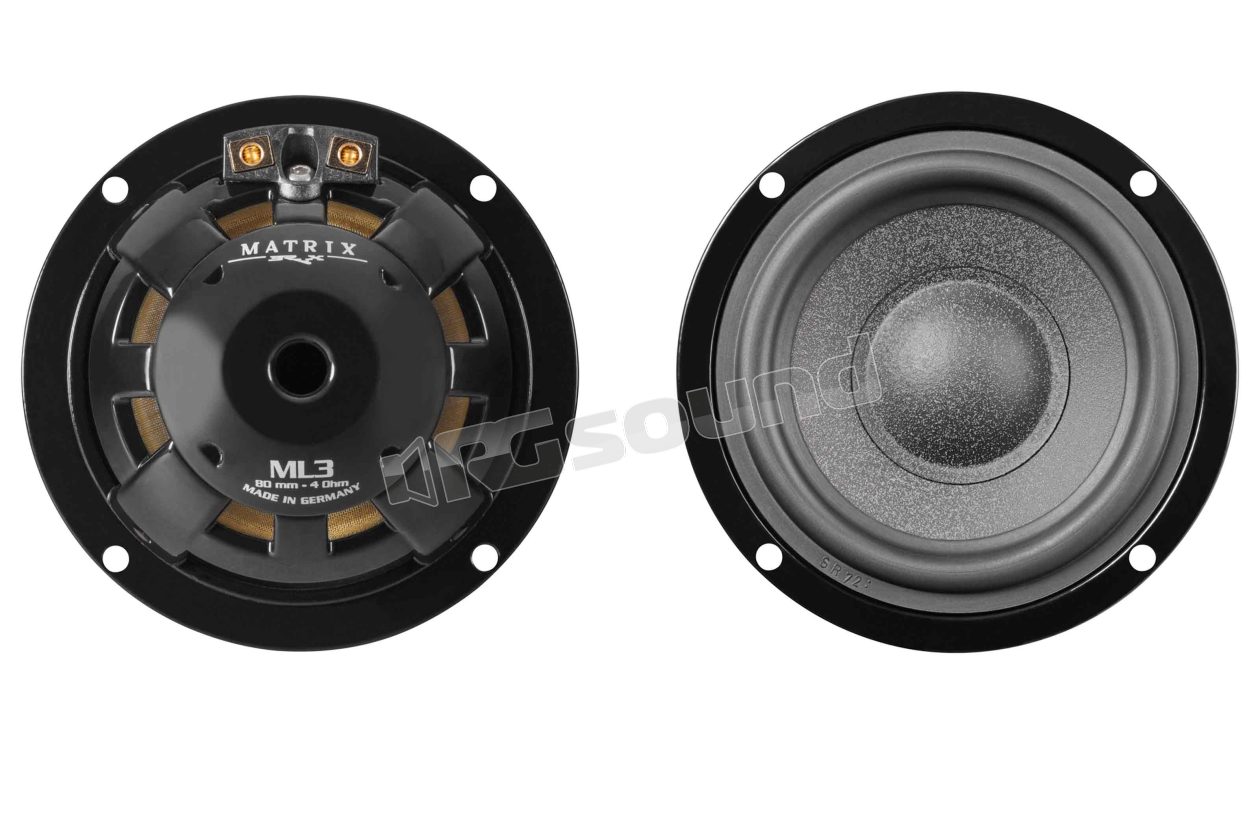

ML 3 Matrix midrange 80 mm

Brax

Discontinued

Your price:
€ 570,00
Price per pair (VAT included)
Type
Midrange
Speaker Size
80 mm
MAX Power
150 Watt
RMS Power
100 Watt
Sensitivity
87 dB
Impedance
4 Ohm
Installation Depth
34 mm
Midrange Cone Material
Cono MicroSphere

Brax martix ML 3 pair of 80mm conical midrange drivers handcrafted in Germany with the most advanced technology and the finest materials

When these drivers are implemented as part of a fully active audio system, it becomes clear that they are something perfect. When this happens, the ML3 drivers are a powerful force that is hard to do without. Their extraordinary sound and output capabilities are to be expected from a product that bears the BRAX name.

The design signals high quality; selected "made in Germany" components guarantee the best functionality and clean sound reproduction. The aerodynamically shaped die-cast aluminum basket ensures ideal voice coil ventilation and a low-reflection rubber surround ensures unrivaled smooth high-frequency roll-off. The very rigid and lightweight paper cone with its revolutionary "Microsphere" coating provides further contribution to quality and reliability. This patented technology incorporates hollow ceramic spheres with a diameter of only 75 μm into a polyamide layer applied to the cone. The special coating not only improves cone rigidity but also internal damping. However, this unique stabilization does not increase weight but ensures lightness and a low total Q factor and excellent precision in sound reproduction.

To meet high quality requirements and to achieve perfect tonal interaction, each set of drivers is selected and matched by hand based on its acoustic parameters. Only after the selection process does each set of drivers receive its unique serial number registered in our service database. Once packaged in a precious wooden box, it is now complete and ready for shipment and this once again underscores BRAX's high-level philosophy.

An optional stainless steel mounting ring set with grille (MR3) is also available. The solid stainless steel ring can be used as a mounting ring or grill support ring depending on the mounting position.

Brax Martix ML 3 key features

Ultra-lightweight very rigid paper cone with unique "MicroSphere" coating composed of micro hollow ceramic spheres embedded in a polymer layer
Low-reflection rubber surround for high-frequency roll-off
Aerodynamic die-cast aluminum basket with optimized voice coil ventilation
Vented neodymium magnet system with ultra-precise machining for maximum magnetic flux linearity

Brax Martix ML 3 technical specifications

RMS / max. power P100 / 150 Watt (high-pass > 300 Hz at 24 dB / oct.)

Impedance 4 Ω

DC resistance 3.4 Ω

Resonance frequency 80 Hz

Mechanical Q factor 2.21

Electrical Q factor 0.33

Total Q factor 0.29

Compliance 1220 μm / N

Equivalent air volume 2.09 L

Force factor 4.1 Tm

Efficiency SPL 87 dB

Cone area 35 cm²

Moving mass 3.3 g

Paper cone with "MicroSphere" cone composed of micro hollow ceramic spheres embedded in a polymer layer

Mechanical resistance 0.74 kg / s

Voice coil diameter 25 mm / 1"

Voice coil winding height 6 mm / 0.2"

Max. linear excursion Xmax +/- 1.5 mm

Outer diameter 92 mm / 3.6"

Installation diameter 76 mm / 3.0"

Installation depth 34 mm / 1.3"

Recommended volumes

Sealed box with minimum net volume of 250 ml

Net volumes Recommended DSP / amplifier settings

0.4 liters (System resonance: 200 Hz) Crossover frequency: 350 Hz
Min. filter slope: 12 dB / oct.

0.8 liters (System resonance: 155 Hz) Crossover frequency: 300 Hz
Min. filter slope: 12 dB / oct.

1.2 liters (System resonance: 140 Hz) Crossover frequency: 250 Hz
Min. filter slope: 24 dB / oct.

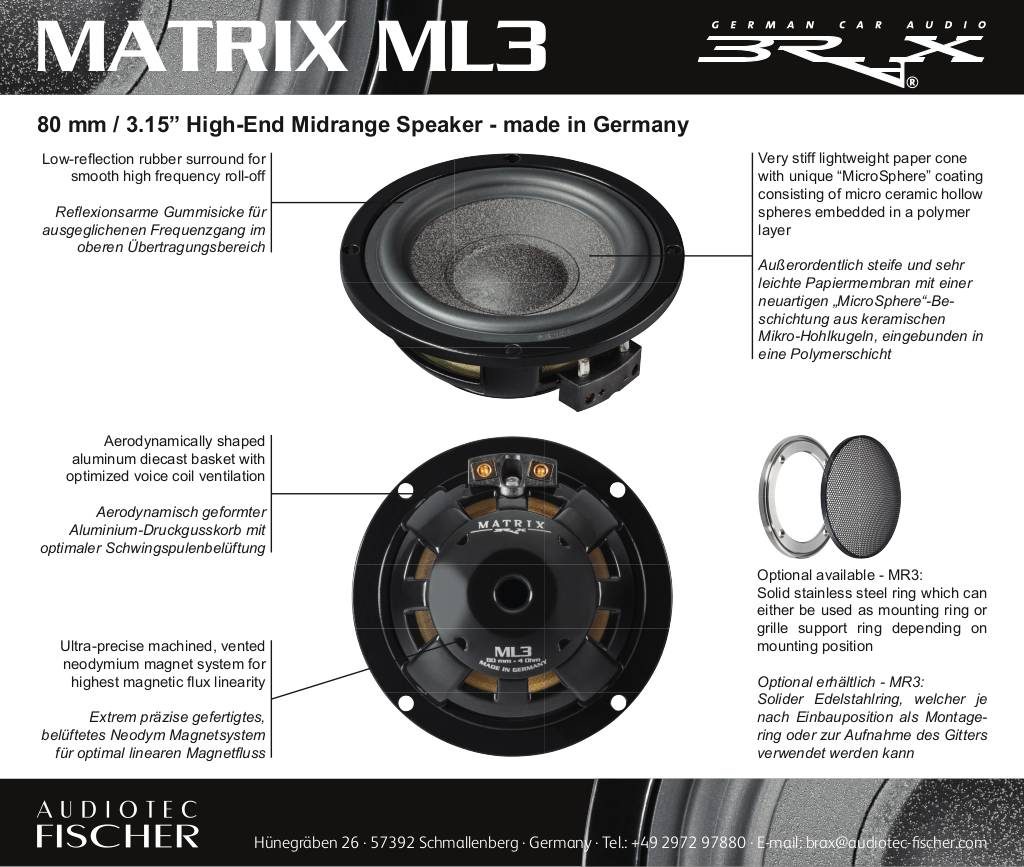

Scheda tecnica
