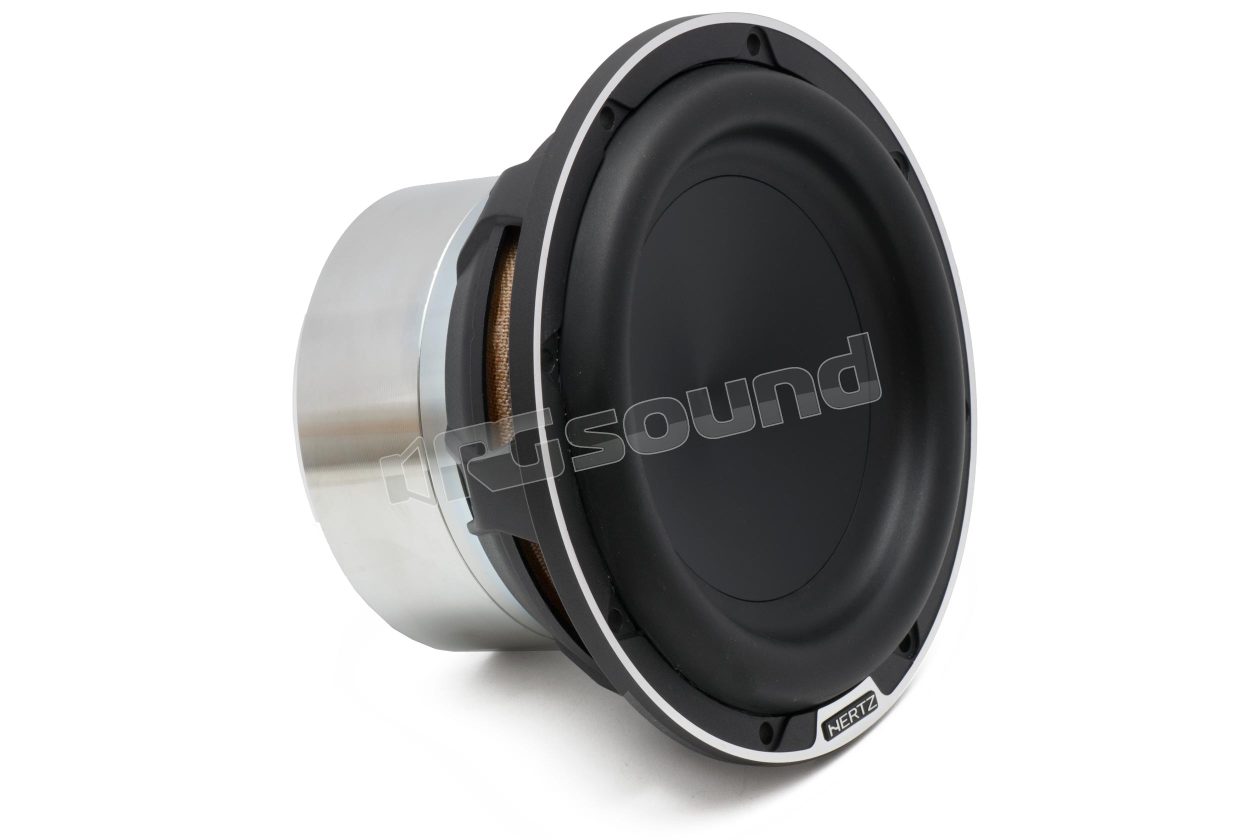

ML 2000.3 200mm subwoofer for enclosure use from the new Mille series

Hertz
Your price:
€ 559,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
200 mm
MAX Power
1400 Watt
RMS Power
700 Watt
Frequency Response
30 - 600 Hertz
Sensitivity
86 dB
Impedance
4 Ohm
Weight
6,12 Kg
Installation Depth
117 mm
Woofer Material
Fibra di cellulosa e minerali

Hertz ML 2000.3 Legend Subwoofer 200mm for use in enclosure of the new Mille series

Music enthusiasts who attend concerts know well the emotions evoked by listening to low frequencies without distortion and free from dynamic compression. For this reason the Hertz R&D team created the ML 2000.3 Legend, reference subwoofer of the Mille.3 Legend line.

During the long development phase the designers set themselves a single ambitious objective: to transfer the emotions of a live performance into the vehicle's cabin.
Thanks to a completely redesigned project, the subwoofers have extremely compact dimensions and are optimized to sound in sealed enclosure with reduced boxes. This design choice combines two requirements that were previously difficult to achieve: reference performance and ease of installation.

ML 2000.3 Features

  • Extraordinarily sized neodymium magnet, optimized with FEA simulations, to guarantee magnetic field stability even during high excursions.
  • Steel pole pieces with very low carbon content with CNC machining to guarantee very high magnetic permeability reducing distortion at high power levels.
  • Magnet inside the coil with high dimension/performance ratio to maximize efficiency.
  • 100 mm (4") CCAW coil capable of handling musical power of 1400 W while maintaining very low operating temperature and thus allowing to minimize the dynamic compression phenomenon.
  • Coil winding with In/Out technique for even cooling of the various coil layers.
  • Coil support made of TIL: this fiberglass material combines the heat dissipation characteristics of aluminum and the rigidity of Polyamide for uncompromised acoustic performance.
  • Aluminum ring inside the pole "Aluminium Shorting Ring" to minimize distortion and maximize extension to low frequencies.
  • "Boundary Free Surround" suspension in IIR rubber that allows producing greater SPL at equal subwoofer external diameter.
  • V-cone® with optimized geometry for high cone rigidity and great resistance to deformation even at maximum excursions.
  • Cone in cellulose fiber with injection of mineral powders for superior rigidity and damping.
  • Basket in aluminum alloy with six spokes with self-supporting and antiresonant structure with high acoustic transparency with decompression holes integrated under the spider.
  • Elegant knurling of the basket edge with integrated logo machined with CNC.
  • Ultra-compact ergonomic design and set of electroacoustic parameters optimized for use in sealed enclosure with box from 10 to 17 lt.

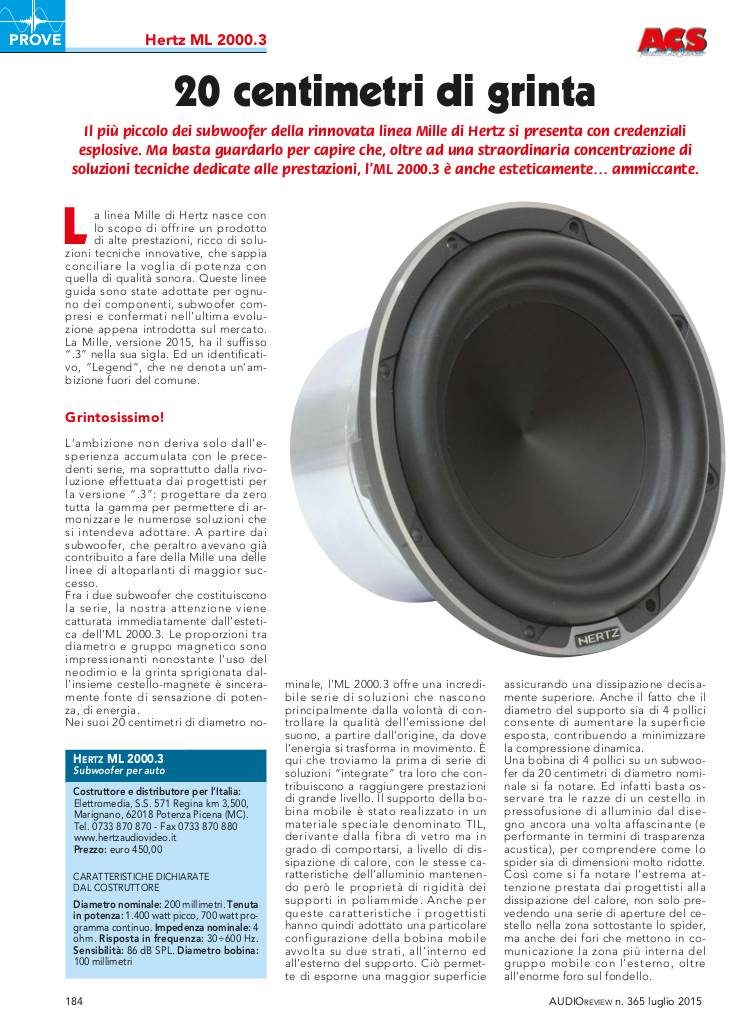

test ACS Hertz ML 2000.3

20150708164939-hertz-ml2000-ar365-mac.pdf

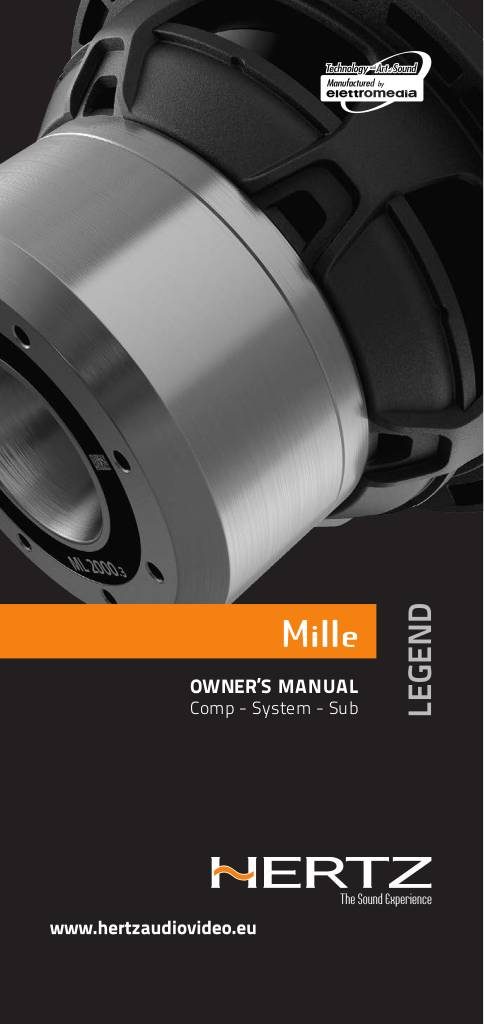

Manuale

20141205091258-esec-owners-manual-speaker-mille-revc-web.pdf

Hertz ML 2000.3 Technical specifications

  • Dimensions mm 200
  • Continuous power handling W 700
  • Peak power handling W 1400
  • Impedance Ohm 4
  • Voice coil Type single
  • No filter Component Subwoofer
  • Voice coil Ø 100
  • Frequency response Hz 30 ÷ 600
  • Magnet dimensions D x d x h mm 95 x 28 x 5
  • Component weight kg 6.120
  • Magnet Neodymium
  • Cone Cone in pressed cellulose pulp with mineral powders
  • Xmech mm ±23
€ 559,00 Price incl. VAT
