MK 165

Coral Electronic

Discontinued

Your price:
€ 132,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
50 - 20000 Hertz
Woofer Size
165 mm
Tweeter Size
49 millimetri
MAX Power
240 Watt
RMS Power
120 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Woofer Material
Mica-polypropylene injection
Tweeter Material
Neodymium - treated silk dome

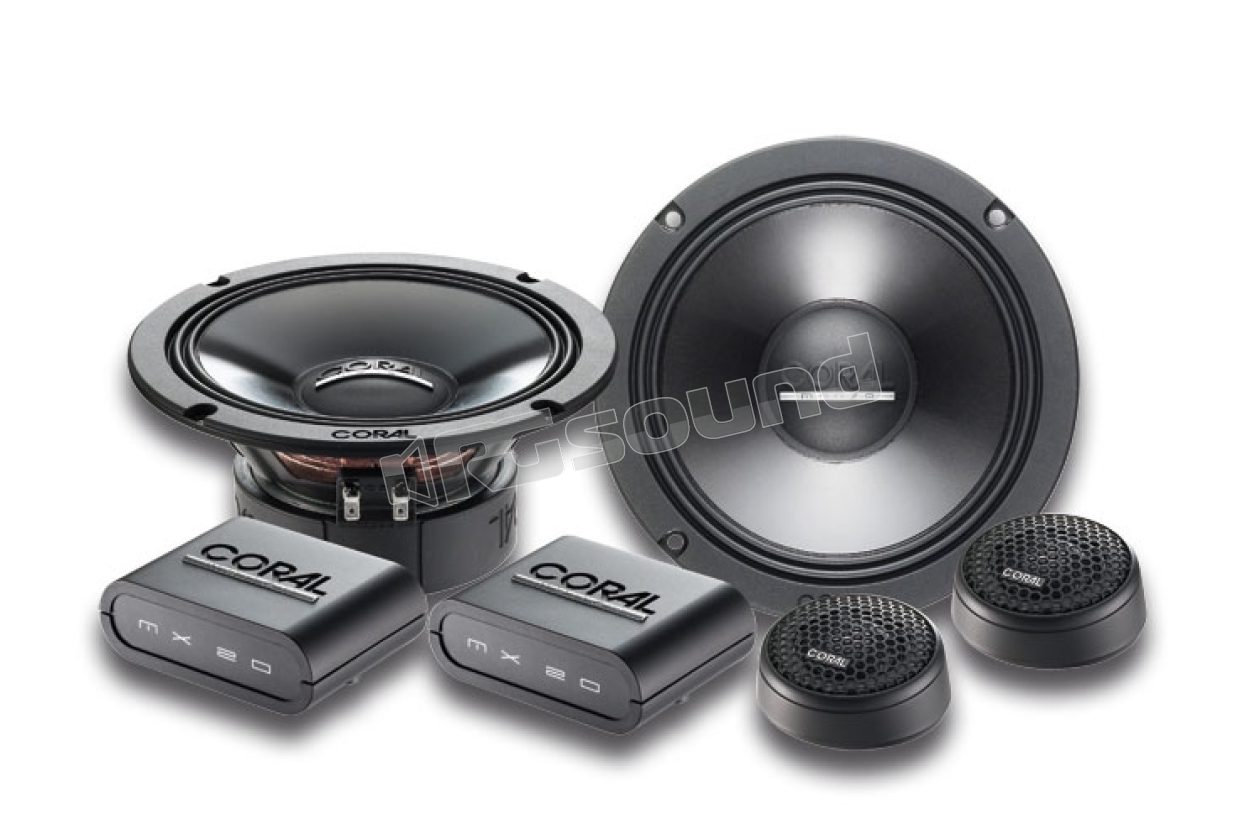

Coral MK 165 2-way speaker system with 165mm midwoofer and silk tweeter

The components of the Monza line have been developed to deliver very good performance, combined with ease of installation. Deep knowledge of the issues connected to car audio systems, careful development of every detail and the use of innovative technologies and materials form the solid foundation of these components. The mica-polypropylene cone and the double-wave rubber suspension, combined with the high flux of the magnetic assembly, provide extended and linear response, high speed and absolute control of transients, along with transparency and tonal neutrality.

The kit MONZA MK 165 consists of:

pair of Woofers: MW 165

  • Max Power: 240 Watt (Pm)
  • RMS Power: 120 Watt (Pn)
  • Nominal Impedance: 4 Ohm
  • Frequency Response: 50 ÷ 6.000 Hz
  • Sensitivity: 92 dB (2.83 V/1 m)
  • Resonance Frequency: 67 Hertz
  • Voice Coil Diameter: 26 mm
  • Cone Construction Material: mica-polypropylene
  • Double-wave butyl rubber suspension
  • Die-cast aluminum basket
  • External Diameter: 166 mm
  • Installation Hole: 142 mm
  • Depth: 70 mm

pair of Tweeters: MT 25

  • Max Power: 250 Watt (Pm)
  • RMS Power: 100 Watt (Pn)
  • Nominal Impedance: 4 Ohm
  • Frequency Response: 2.500 ÷ 20.000 Hz
  • Sensitivity: 92 dB (2.83 V/1 m)
  • Resonance Frequency: 1.400 Hertz
  • Voice Coil Diameter: 26 mm
  • Cone Construction Material: mica-polypropylene
  • Double-wave butyl rubber suspension
  • Die-cast aluminum basket
  • External Diameter: 49 mm
  • Installation Hole: 43 mm
  • Depth: 10 mm

pair of Crossovers: MX 20

  • Max Power: 260 Watt (Pm)
  • RMS Power: 130 Watt (Pn)
  • Nominal Impedance: 4 Ohm
  • Crossover Frequency: 3.100 Hz
  • Slope: 6 / 12 dB/oct
  • 3-level tweeter adjustment: -2dB, 0dB, +2dB
  • Electronic limiter in the tweeter section
  • Dimensions: 65 x 90 x 30 mm

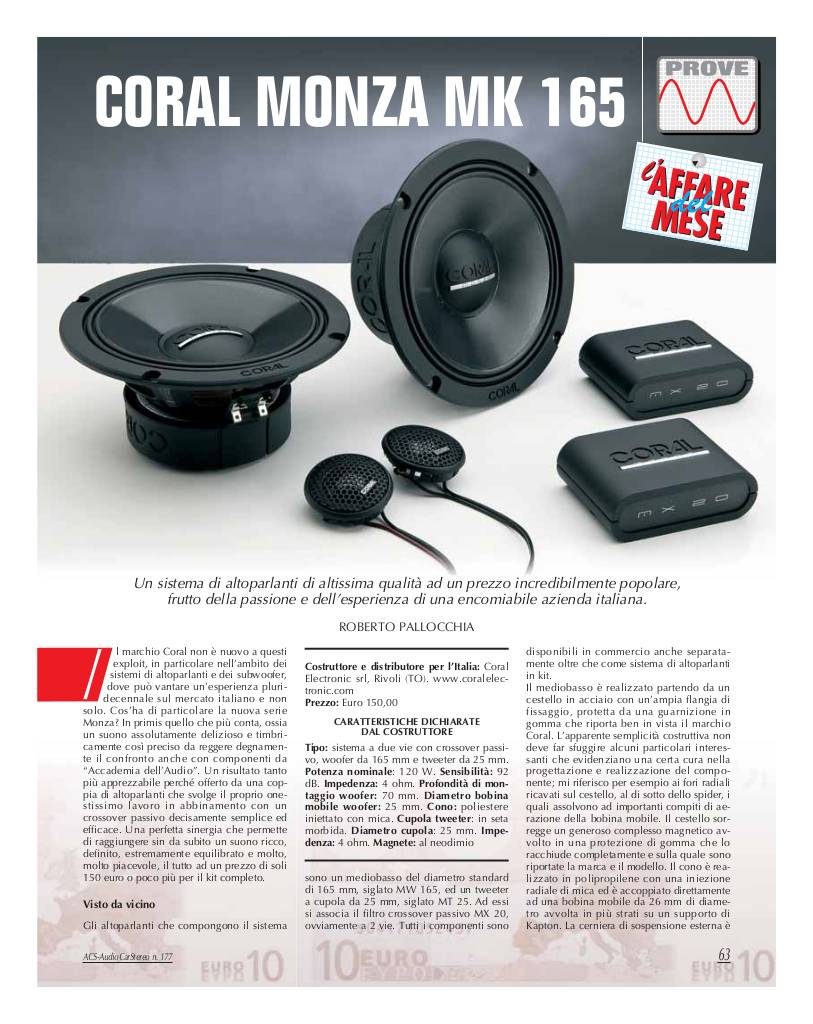

Test MK 165 effettuato dalla rivista ACS

20120105235837-mk-165-test-acs.pdf

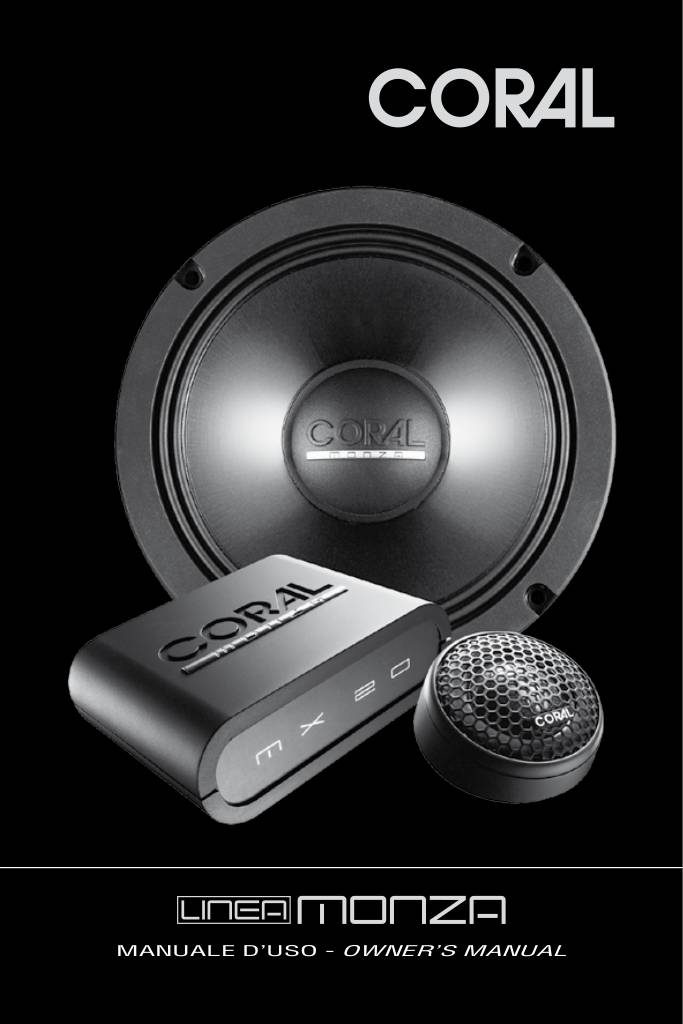

Manuale di installazione

20131126121130-monza-line-manual.pdf

2 woofers 2 tweeters 2 crossovers accessories instructions
Discontinued
