MGS 180 High End two-way system

ETON

Discontinued

Your price:
€ 1150,10
Price per single item (VAT included)
Type
2-way separate kit
Woofer Size
165 mm
Tweeter Size
28 millimetri
RMS Power
100 Watt
Sensitivity
89 dB
Impedance
4 Ohm
Woofer Material
Exacone
Tweeter Material
Magnesio - Keronite

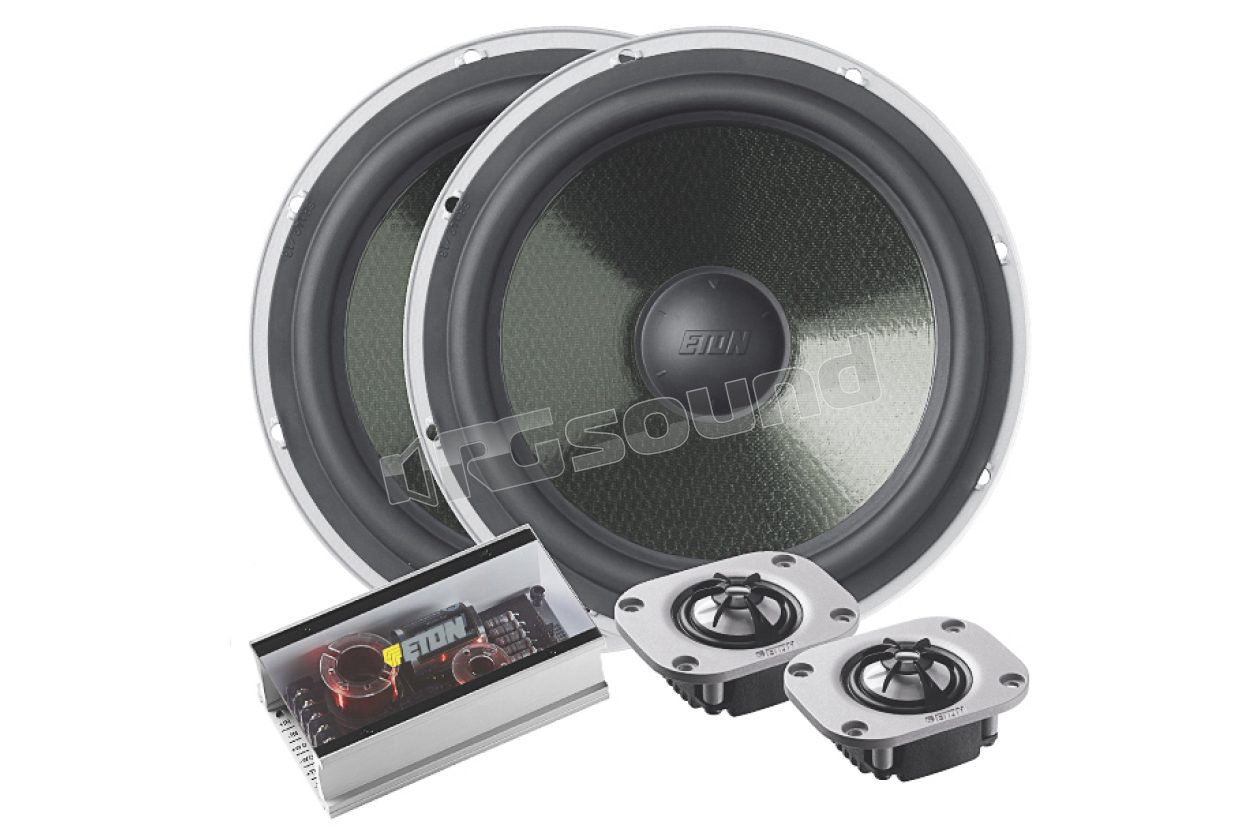

ETON MGS 180 2-way High End system composed of:

Pair of 165 mm woofers with 32 mm voice coil and Exacone cone

Pair of tweeters with 28 mm Magnesium-Keronite dome and decompression chamber

This kit can be expanded to a 3-way system by adding the pair of High End 80mm midrange 3-401A4 dedicated.

ETON uses exclusive materials, proprietary technologies and exclusive materials, many of which are patent protected. This makes the ETON sound unique and distinctive.

MGS 180 Features

External diameter165mm
Mounting hole143mm
Installation depth66mm
Nominal impedanceZn4 Ω
DC resistanceRe3.3 Ω
Sensitivity 1W / 1m89dB SPL
RMS power70W/100W
Resonance frequency 1 Wattfr60 Hz
Effective piston areaSD137 cm2
Suspension complianceCMS0.21 mm/N
Mechanical Q factorQMS4.46
Electrical Q factorQES0.54
Total Q factorQTS0.48
Equivalent air volume of suspensionVAS5.5 dm3
Mech. resistanceRMS2.48 kg/s
Total moving mass (including air mass)MMD25.3 g
Voice coil diameter32 mm
Voice coil carrierAluminium
Wrapping amplitude155 mm
Nr. of layers1
Voice coil inductanceLe53 mH
Magnetic inductanceB10 Tesla
Power factorBL x I7 Tm
Height of pole8 mm
Magnetic ring diameter102 mm
Magnetic ring height22 mm
Mass of speaker1.95 kg

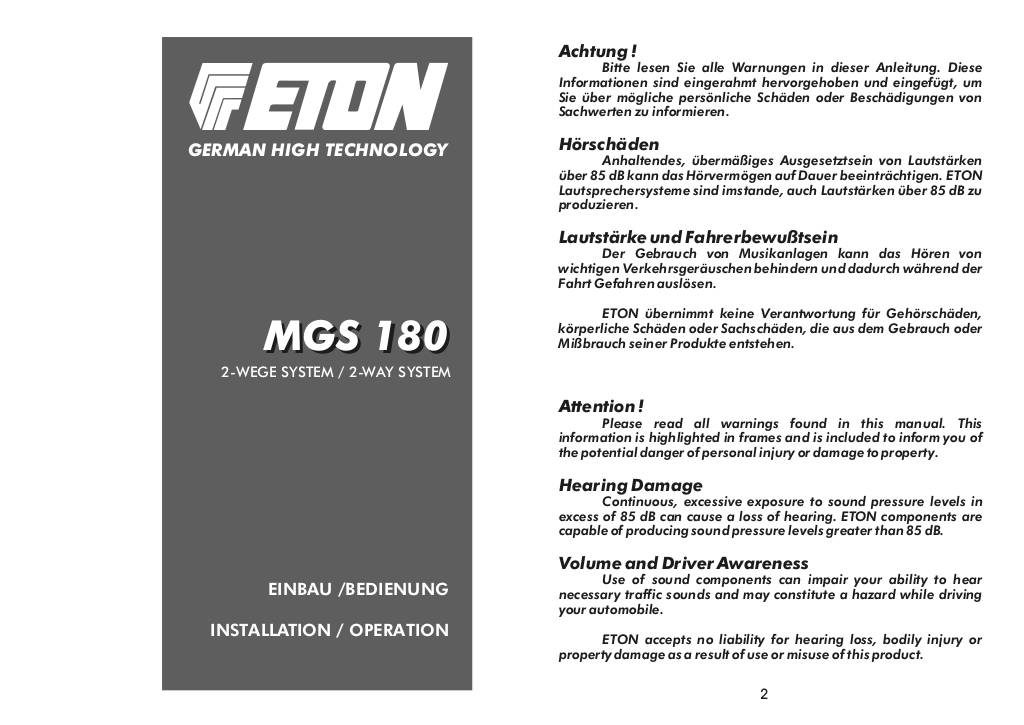

Scheda tecnica

20150609170223-mgs180-01.pdf
Discontinued
