MCW5Z

Electronic Melody

Discontinued

Your price:
€ 16,20
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
130 mm
MAX Power
100 Watt
RMS Power
50 Watt
Sensitivity
88 dB
Impedance
4 Ohm
Installation Depth
48 mm
Woofer Material
Cellulosa trattata

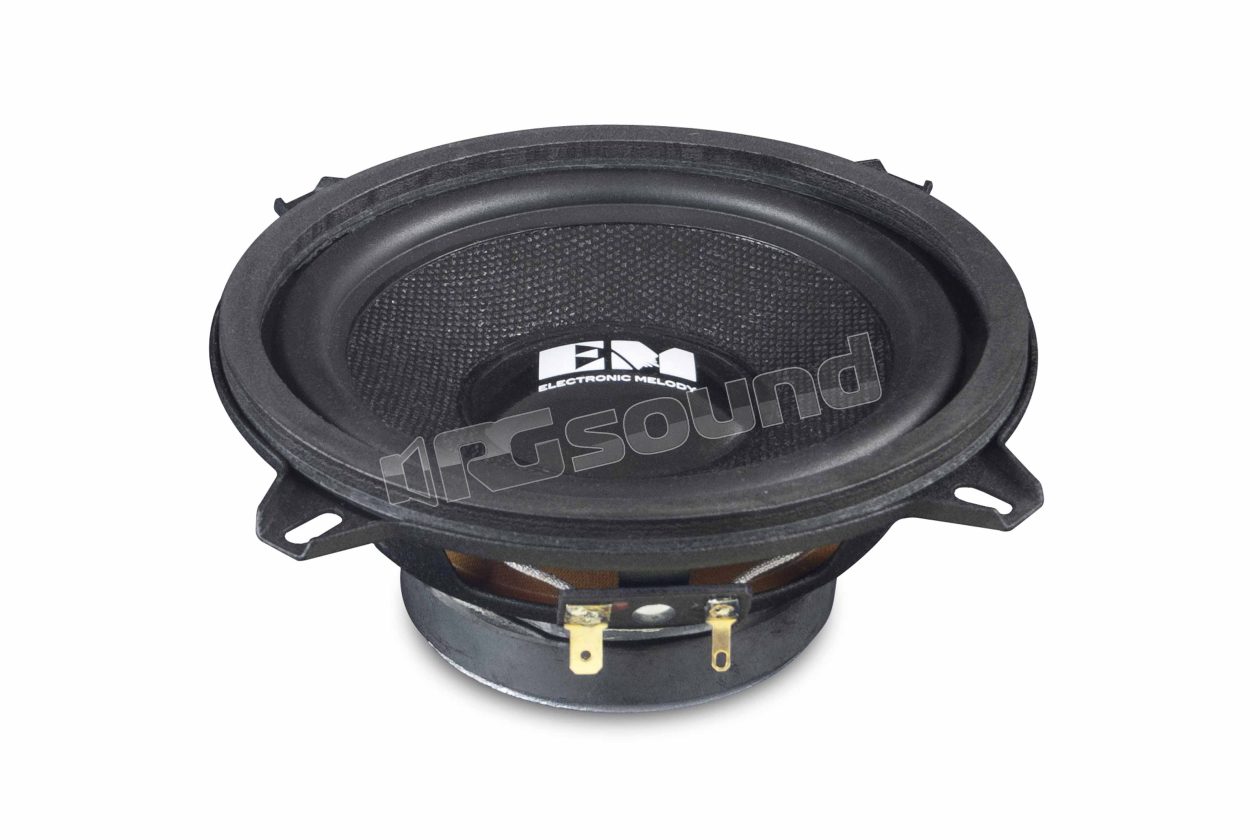

Electronic Melody MCW5Z woofer 127 mm (5") with damped cellulose membrane, rubber suspension, 4 Ohm impedance.

MCW5Z Technical Features

Max Power 100 W
RMS Power 50 W
Panel Hole Ø 112 mm
Sensitivity (1W/1m) 88 dB
Nominal Impedance 4 Ω
Voice Coil Ø 25 mm
D 100 mm
Re 3.40 Ω
Fs 108.07 Hz

MCW5Z Dimensions

Speaker Diameter 127 mm
Magnet Diameter 71 mm
Installation Hole Diameter 112 mm
Installation Depth 48 mm

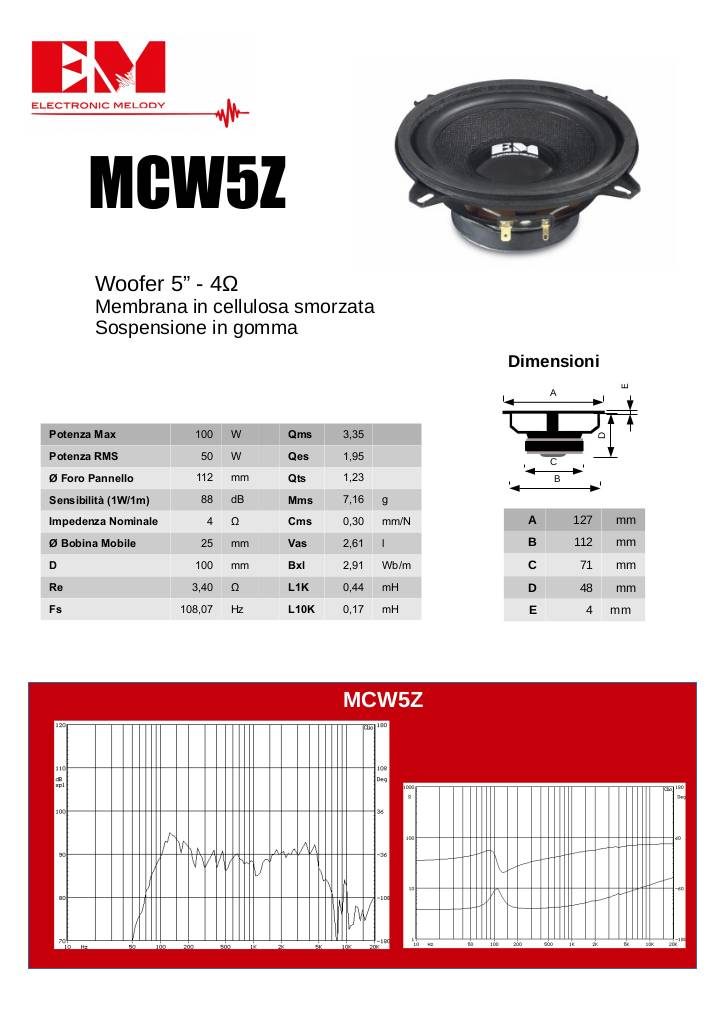

Scheda tecnica

n-20160908112721-mcw5z.pdf
Discontinued
