MCW5

Electronic Melody

Discontinued

Your price:
€ 40,50
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
130 mm
MAX Power
180 Watt
RMS Power
70 Watt
Sensitivity
89 dB
Impedance
4 Ohm
Installation Depth
63 mm
Woofer Material
Cellulosa trattata

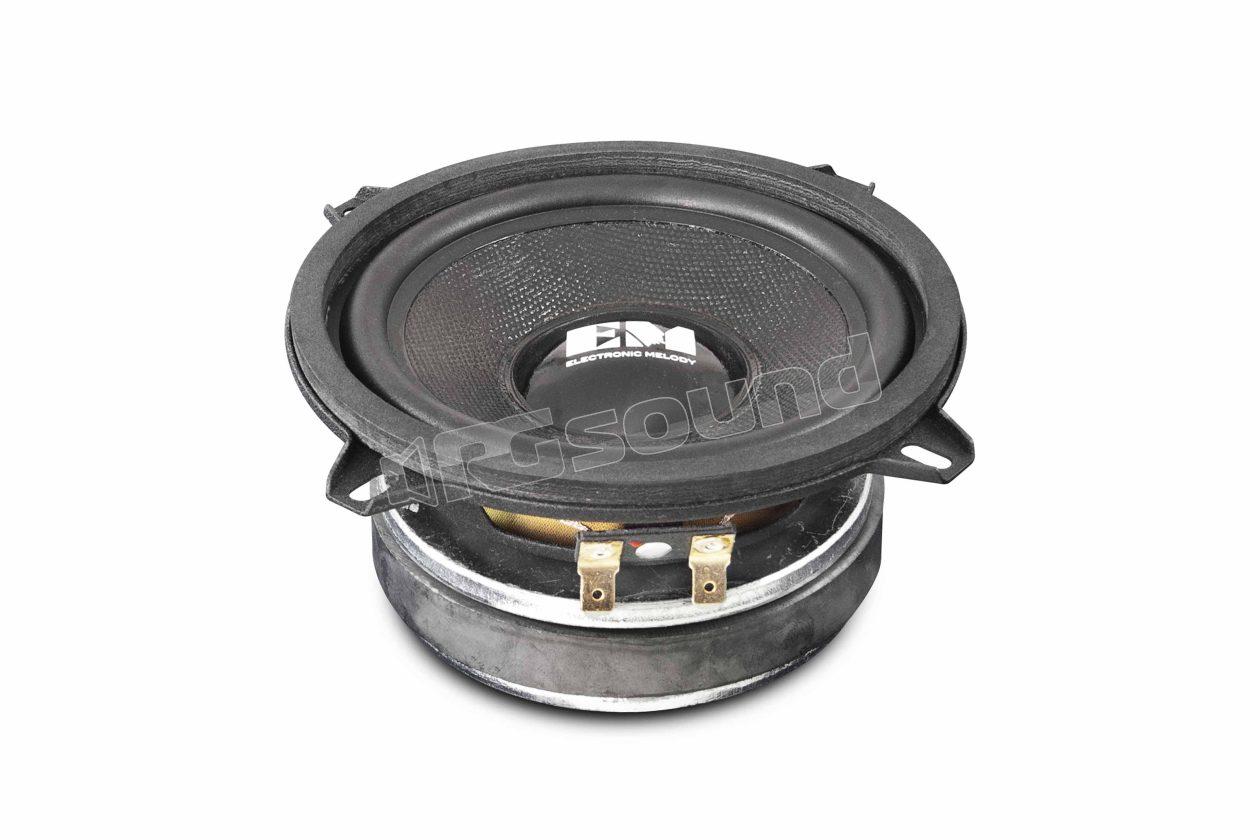

Electronic Melody MCW5 woofer 130 mm (5") with damped cellulose diaphragm, rubber suspension, 4 Ohm impedance.

MCW5 Technical Features

Max Power 180 W
RMS Power 70 W
Panel Hole Ø 112 mm
Sensitivity (1W/1m) 89 dB
Nominal Impedance 4 Ω
Voice Coil Ø 32 mm
D 100.00 mm
Re 3.60 Ω
Fs 67.47 Hz

MCW5 Dimensions

Speaker Diameter 130 mm
Magnet Diameter 102 mm
Installation Hole Diameter 112 mm
Installation Depth 63 mm

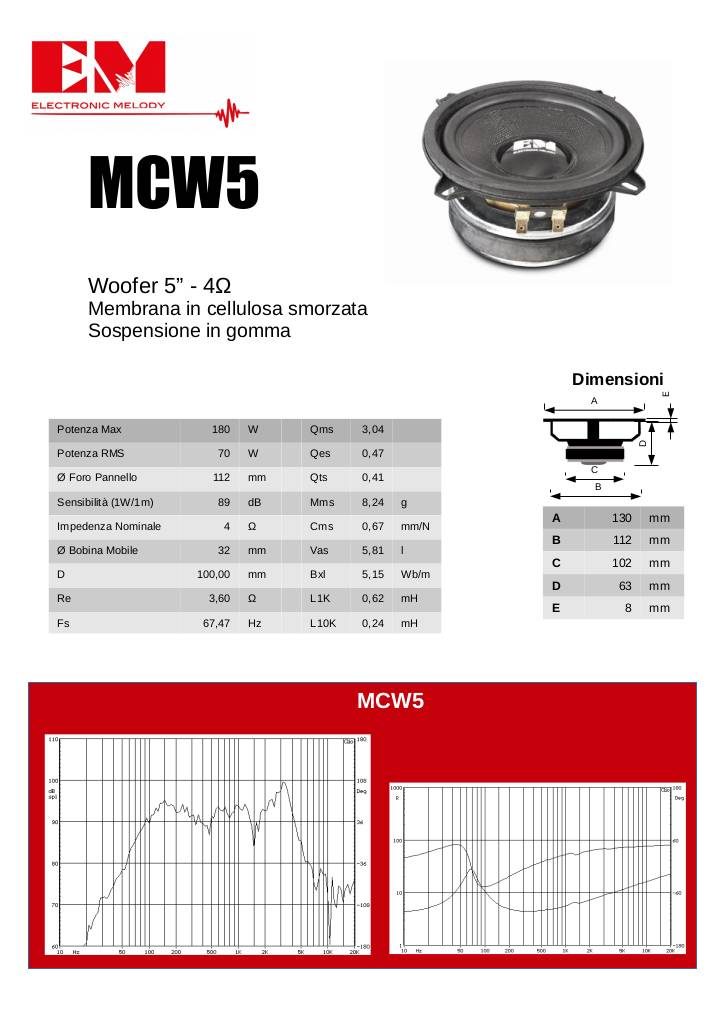

Scheda tecnica

n-20160908112316-mcw5.pdf
Discontinued
