MCW4Z

Electronic Melody

Discontinued

Your price:
€ 17,10
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
100 mm
MAX Power
100 Watt
RMS Power
40 Watt
Sensitivity
87 dB
Impedance
4 Ohm
Installation Depth
91 mm
Woofer Material
Cellulosa trattata

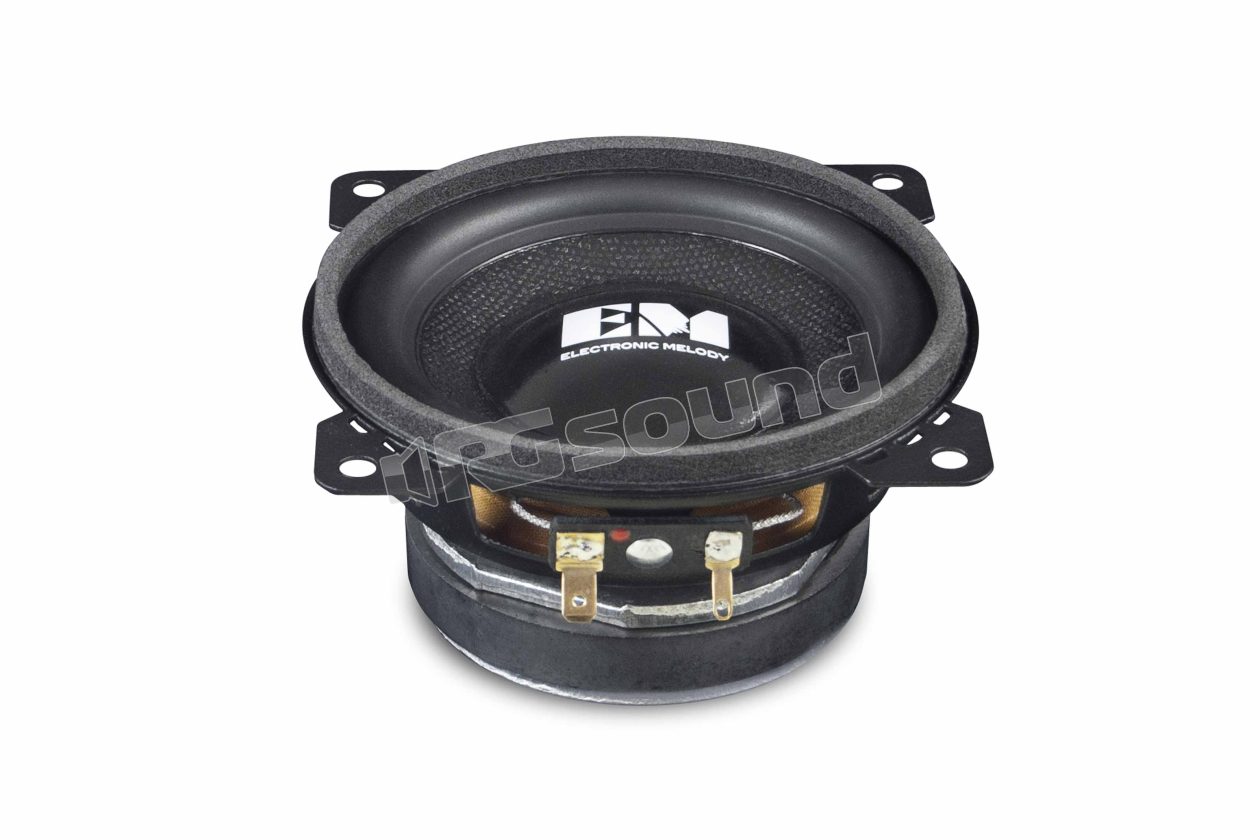

Electronic Melody MCW4Z woofer 100 mm (4") with damped cellulose membrane, rubber suspension, 4 Ohm impedance.

MCW4Z Technical Specifications

Max Power 100 W
RMS Power 40 W
Panel Hole Ø 91 mm
Sensitivity (1W/1m) 87 dB
Nominal Impedance 4 Ω
Voice Coil Ø 25 mm
D 80 mm
Re 3.40 Ω
Fs 136.06 Hz

MCW4Z Dimensions

Speaker Diameter 100 mm
Magnet Diameter 71 mm
Installation Hole Diameter 91 mm
Installation Depth 53 mm

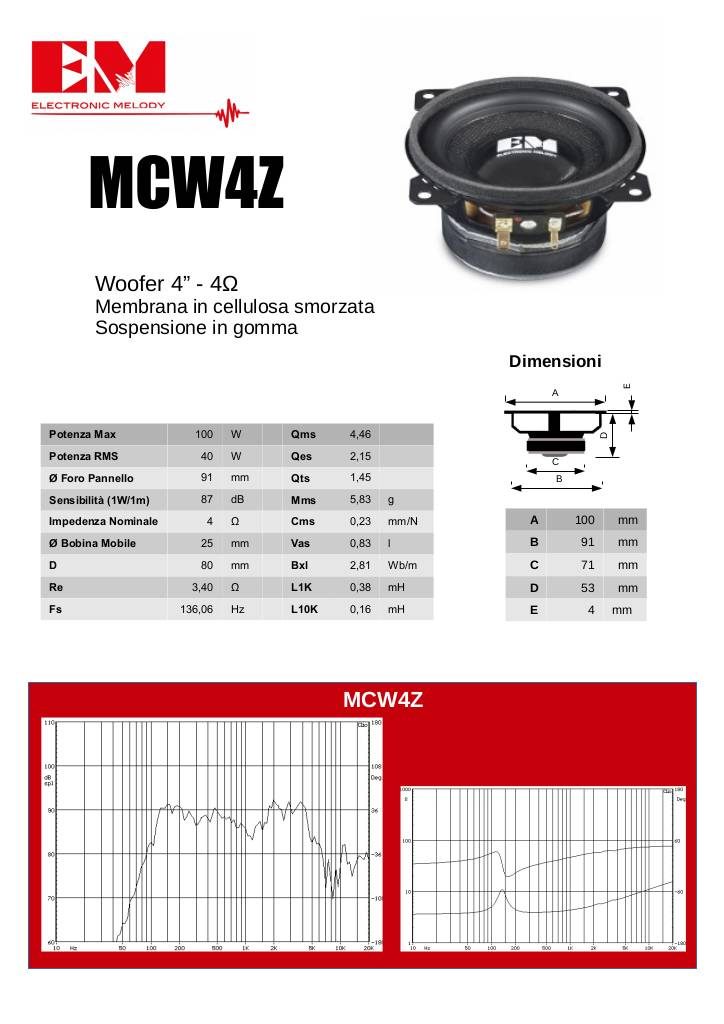

Scheda tecnica

n-20160908111848-mcw4z.pdf
Discontinued
