MB 690 6x9" woofer 40 mm voice coil - 94.8dB - 2 Ohm

BLAM
Your price:
€ 1250,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
6x9''
MAX Power
250 Watt
RMS Power
125 Watt
Frequency Response
55 Hz – 4,5 KHz Hertz
Impedance
2 Ohm

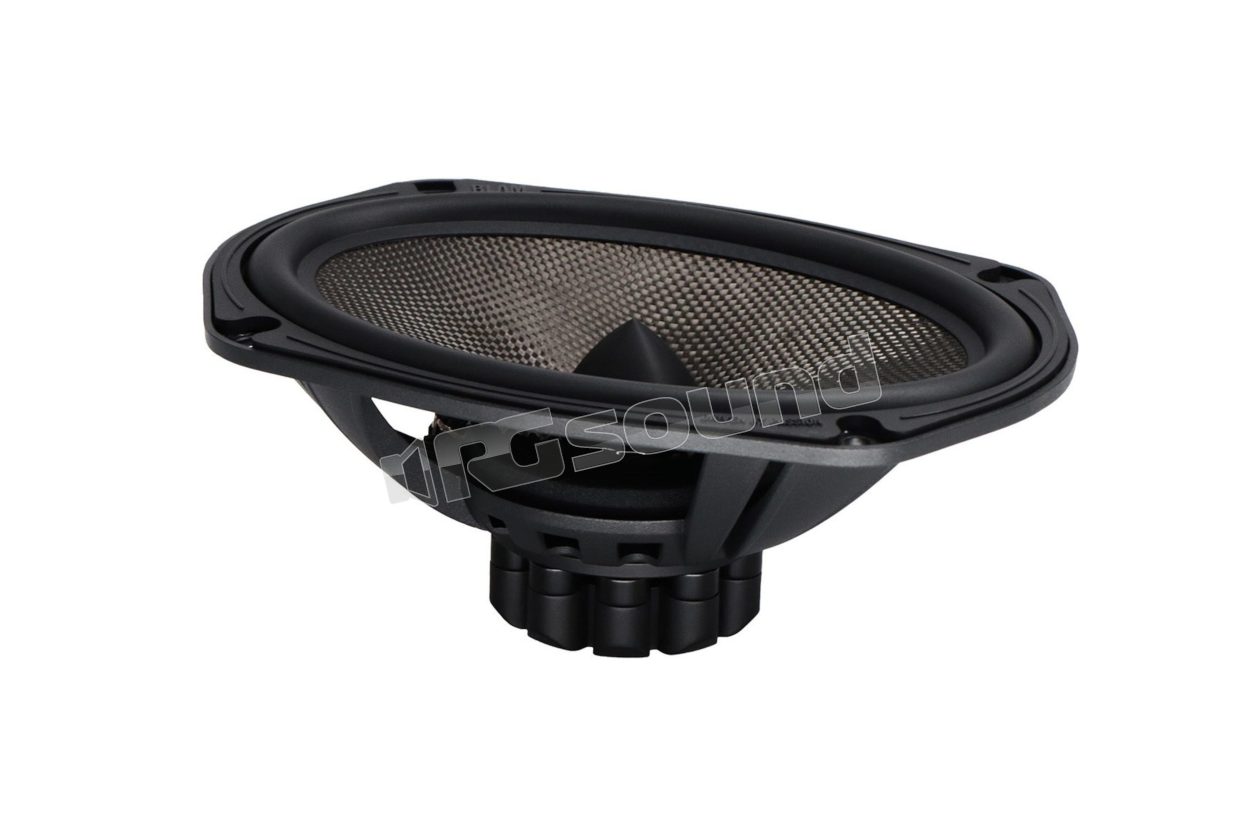

BLAM MB 690 Woofer 6x9" - 2Ω


The MB 690 is a woofer from the Signature Series designed to deliver exceptional performance in a 6"x9" configuration. With a maximum power of 250 W and a nominal power of 125 W, it features a frequency response ranging from 55 Hz to 4.5 kHz and an impedance of 2 Ω, ensuring deep and accurate bass and midrange reproduction. The ultra-rigid 3K carbon fiber diaphragm guarantees high resistance and clear sound reproduction, while the NBR perimeter suspension and dual spider with integrated braids ensure optimal cone movement control and reduce distortion.

The 38 mm voice coil, mounted on a fiberglass support, ensures excellent thermal management and fast response. The oversized 10-bar neodymium magnet and machined aluminum give the woofer greater rigidity and efficiency, while the gold-plated terminals ensure lasting and high-quality connectivity. With a tolerance of +/- 1 dB, the MB 690 offers perfect sound coherence, ideal for high-end audio systems.

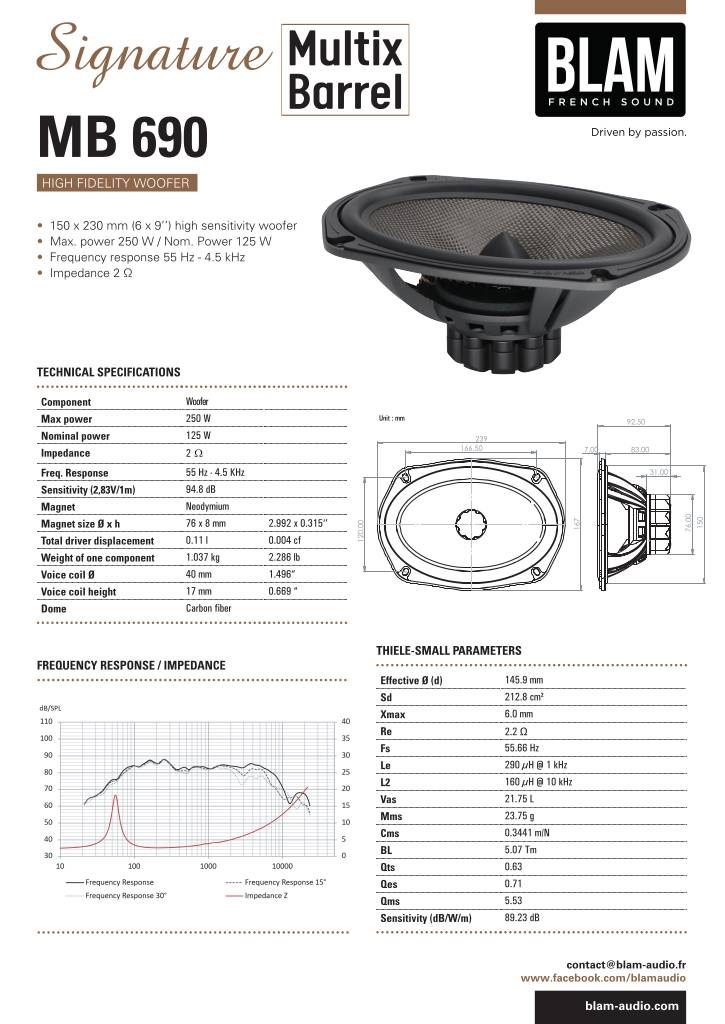

Scheda tecnica

n-20250407130137-mb690.pdf

BLAM MB 690 Technical Specifications

  • Signature - Multix Woofer 6″x9″
  • Maximum power 250 W
  • Nominal power 125 W
  • Frequency response 55 Hz - 4.5 kHz
  • Impedance 2 Ω
  • Die-cast aluminum basket
  • Ultra-rigid 3K carbon fiber membrane
  • Sound NBR
  • Dual spider with integrated braids
  • 38 mm moving voice coil on fiberglass support
  • Oversized 10-bar neodymium magnet
  • Machined aluminum phase plug
  • Gold-plated terminal
  • Matched products at +/- 1 dB
€ 1250,00 Price incl. VAT
