MAXIMO ULTRA 603 165mm 3-way kit for upgrading factory speakers

Morel

Discontinued

Your price:
€ 369,00
Price per single item (VAT included)
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
65 millimetri
Tweeter Size
25 millimetri
MAX Power
180 Watt
RMS Power
100 Watt
Frequency Response
50 - 20000 Hertz
Sensitivity
90,5 dB
Impedance
4 Ohm
Woofer Material
Cono in carta composita

Morel MAXIMO ULTRA 603 3-way kit for upgrading factory speakers, creates a wide sound range of quality, with Morel quality, at a very interesting price.

Morel has invested the same passion, engineering and philosophy that has earned its car audio speakers countless awards in the development of the new MAXIMO ULTRA line composed of 2-way systems, the new 3-way component systems and coaxial speakers.

Following Morel's philosophy of high quality, it features some of the company's innovative technologies and new design features. Designed to be easily installed in factory positions and integrate with the source present on the vehicle.

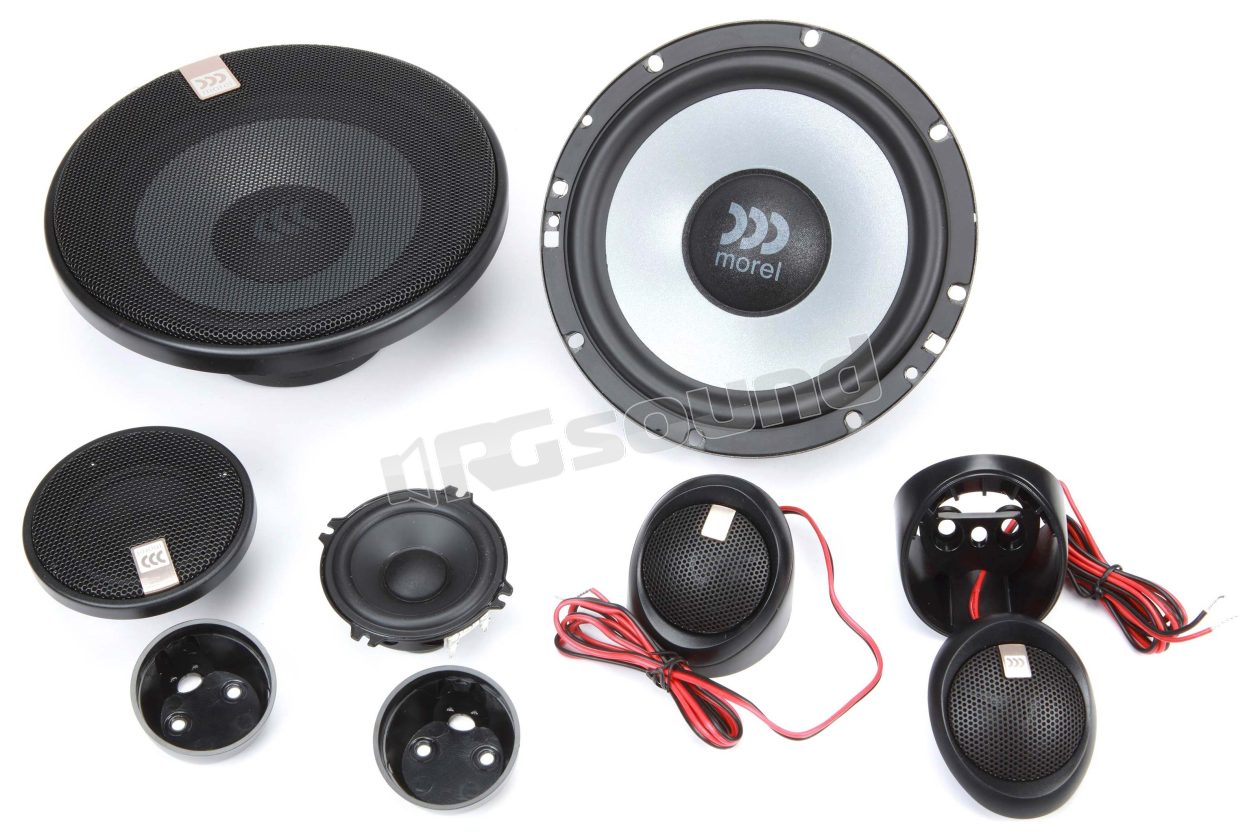

Components of the Morel MAXIMO ULTRA 603 kit

New 25 mm (1″) diameter soft dome tweeter, which uses Morel's external voice coil (EVC™) technology developed specifically for Maximo Ultra. The tweeter design sets new standards for power handling and low distortion for this price level, while offering pleasant musical sound reproduction. Its four mounting options make installation very simple and immediate.

The woofer is equipped with a high quality ferrite magnet motor that provides greater magnetic energy, with higher power handling and better efficiency. The new design uses a specially treated paper cone and computer-modeled suspension for highly linear movement during midrange low frequency reproduction, thus reducing distortion and increasing bass dynamics.

The midrange in the 3-way component system is a new premium wide-range 2.5 inch midrange that employs a powerful dual neodymium magnet system, equipped with a solid copper sleeve to ensure smooth frequency response and low distortion. It offers surprising detail and a lush midrange in a compact size.

The crossover network is built to handle more power using quality components. This minimizes component saturation that can cause premature speaker distortion, allowing Maximo Ultra to sound at its full potential.

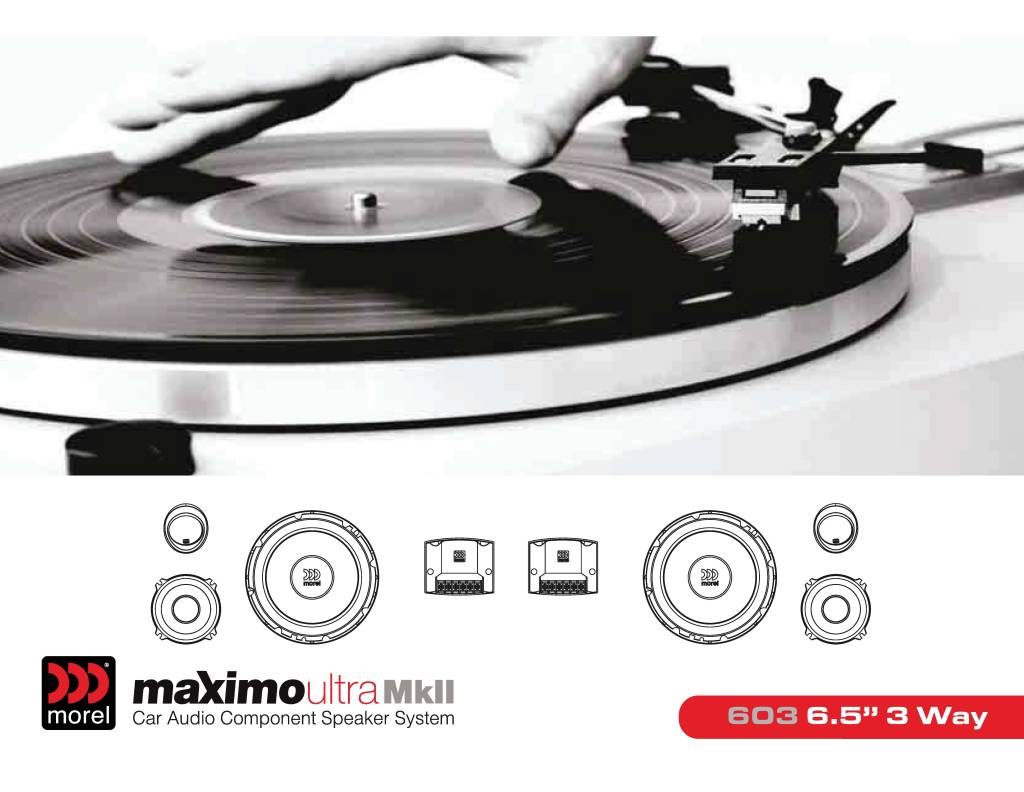

Scheda tecnica

n-20200629165455-210maxiu63.pdf

Morel MAXIMO ULTRA 603 technical specifications

Nominal impedance 4 Ohm

Power handling 100 Watt

Max power 180 Watt

Sensitivity to transient power handling (2.83V / 1 M) 90.5 dB

Frequency response 50 - 20,000 Hz

Voice coil diameter: woofer 25mm / midrange 20mm / tweeter 25mm

High quality copper voice coil

Neodymium tweeter magnet

Ferrite woofer magnet

Woofer mounting depth 63 mm (2.5")

Discontinued
