MAS 80 MAS 160 system upgrade from 2-way to 3-way

ETON

Discontinued

Your price:
€ 181,00
Price per pair (VAT included)
Type
Midrange
Speaker Size
80 mm
RMS Power
20 Watt
Sensitivity
86 dB
Impedance
4 Ohm
Installation Depth
34 mm
Midrange Cone Material
Exacone

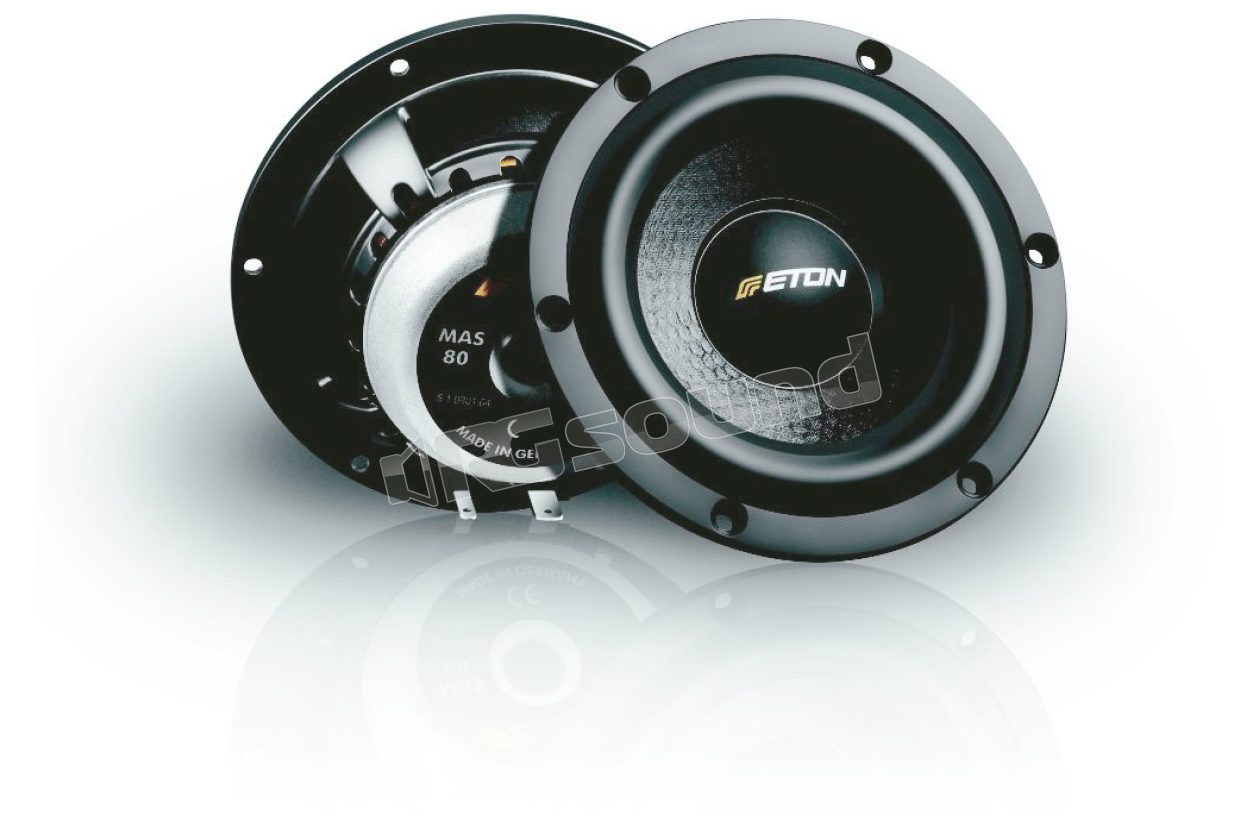

ETON MAS 80 pair of 80 mm midrange with sandwich cone Exacone (Kevlar/Nomex) for powerful sound suitable for any type of application and tonally coherent to transform the ETON two-way MAS 160 system into a 3-way system.

MAS 80 Features

Pair of Hi-Fi midrange designed and built in Germany
Cone with Hexacone sandwich technology
25 mm voice coil on aluminum support

MAS 80 Specifications

Symbol

Value

Unit

Nominal impedance

Zn

4

Ohm

DC resistance

Re

3.1

Resonance frequency

1 W

fr

113

Hz

Resonance frequency

TS-parameter-meas.

fr

127

Hz

Suspension compliance

CMS

0.39

mm/N

Mechanical Q

QMS

4.24

Electrical Q

QES

0.71

Total Q

QTS

0.61

Mechanical resistance

RMS

0.82

kg/s

Total moving mass(including air mass)

MMD

4.0

g

Effective piston area

SD

34

cm2

Voice coil diameter

25

mm

voice coil former

Aluminium

Voice Coil length

7

mm

Voice Coil layers

2

Voice Coil inductance

Le

0.08

mH

Flux density

B

1.06

Tesla

Force factor

BL x l

3.6

Tm

Height of the gap

4

mm

Diameter of magnet

55

mm

Height of magnet

3

mm

Mass of speaker

0.33

kg

Characteristic sound pressure level 1 W1m

86

dB SPL

Rated power

20

W

Equivalent air volume of suspension

VAS

0.6

dm3

Scheda tecnica

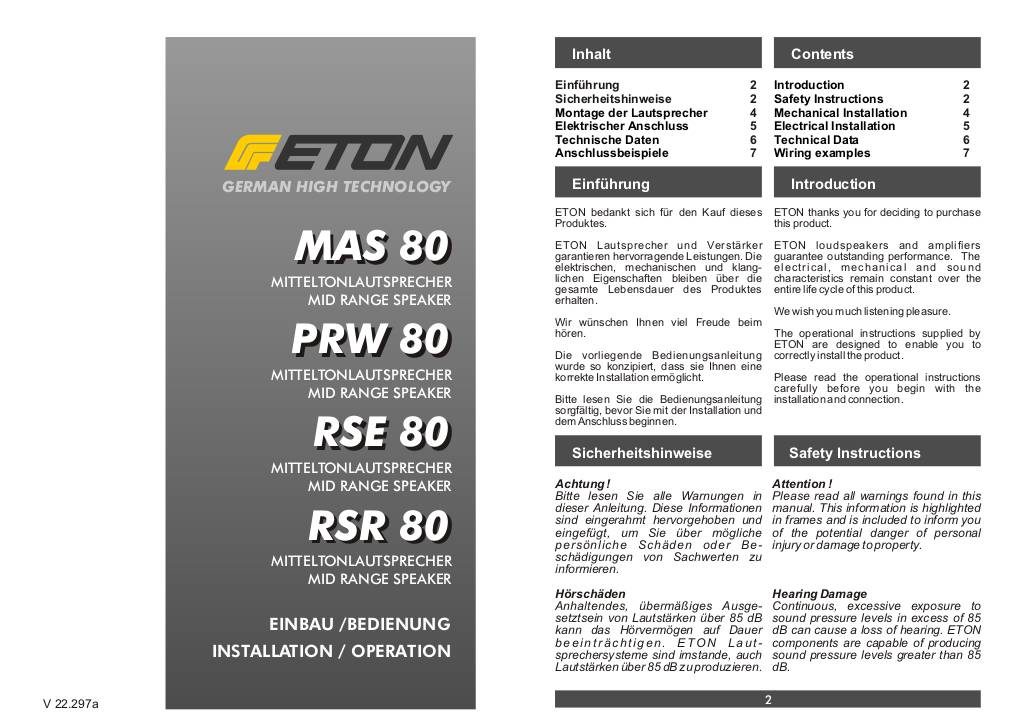

20150610170850-v22-297a-mas-prw-rse-rsr80-web.pdf

Pair of 80 mm MAS 80 midrange
