M8W5-CG-TB 20cm sub Premium Quality - classic black grille

JL Audio

Discontinued

Your price:
€ 284,40
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
RMS Power
200 Watt
Sensitivity
85.8 dB
Impedance
4 Ohm
Weight
3,09 Kg
Installation Depth
132 mm

JL Audio M8W5-CG-TB marine subwoofer from the prestigious M-Series 8 inch (200 mm) with classic black grille, 4 Ohm impedance and 200 W RMS power.

The addition of a subwoofer to the system allows the smaller main speakers to be free from the task of reproducing low frequencies. This allows the entire system to sound louder and reproduce cleaner sounds at various listening levels. Designed specifically for marine use, the M8W5 subwoofers are made to operate in a compact sealed enclosure. The long excursion capability and robust suspension systems help produce a deep and powerful bass response that will transform your boat's audio system.

The M8W5 is best used with amplifier power in the range 75W - 200W and is optimized to operate in a sealed enclosure 28.3 liters or in a vented enclosure 35.4 liters.

Like all JL Audio marine speakers, the M8W5 sub is designed to withstand the marine environment, haze, and splashes of salt water, to deliver powerful and lasting bass.

JL Audio M8W5-CG-TB sub features

Rated power 200 W RMS

Impedance 4 Ohm

Sensitivity 85.8 dB SPL

Speaker diameter 200 mm

Outer diameter 224 mm

Grille hole diameter 202 mm

Magnet diameter 140 mm

Grille thickness 37 mm

Mounting hole diameter 187 mm

Mounting depth 132 mm

Driver Displacement 0.032 cu ft / 0.91 L

Net weight 3.094 kg

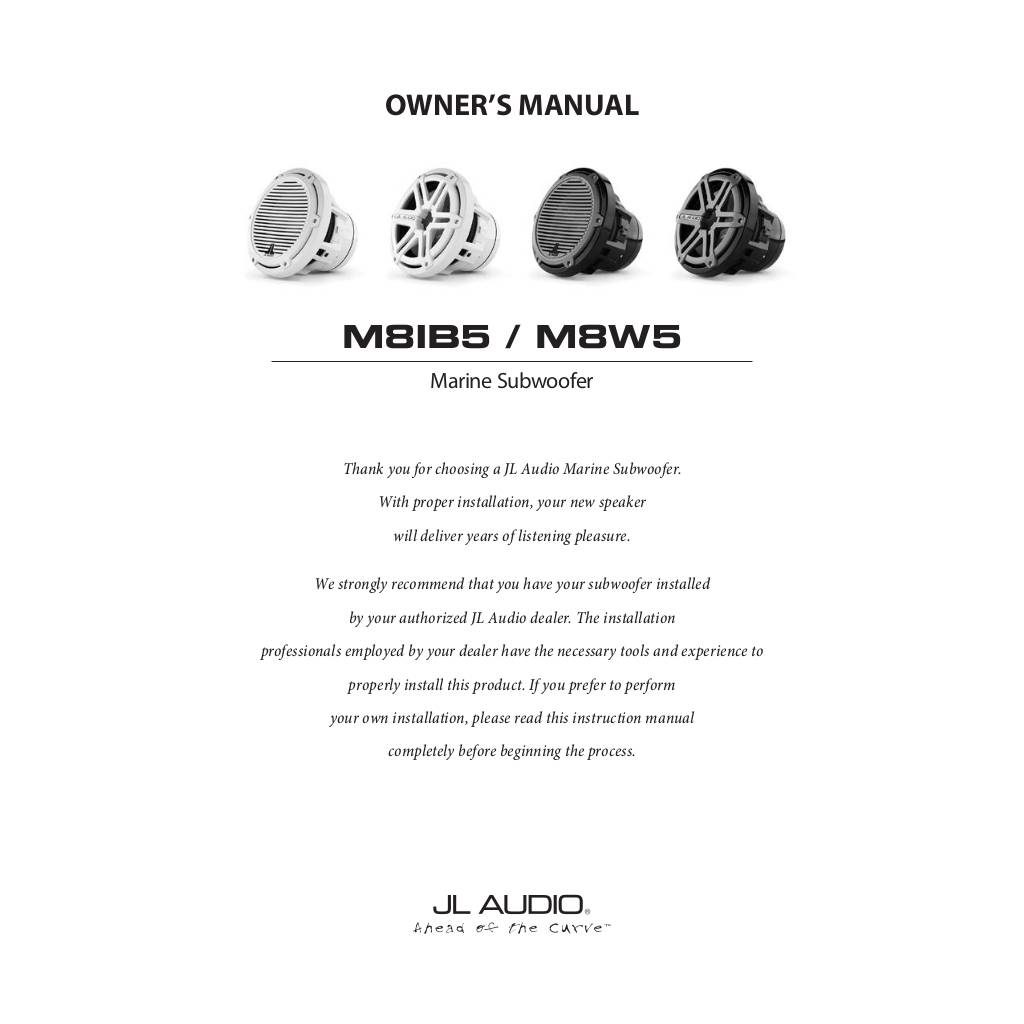

Manuale utente

n-20180413114039-m8ib5-m8w5-man.pdf
