M2VX 165 mm 2-way kit Eroico Series

Quartorigo

Discontinued

Type
2-way separate kit
Woofer Size
165 mm
Tweeter Size
25 millimetri
MAX Power
400 Watt
RMS Power
200 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
Alluminio e fibra di Carbonio
Tweeter Material
Alluminio e magnete in Ferrite

EROICO M2VX - 2-way 165 mm kit

High quality SINFONI 2-way kit composed of a pair of M165W woofer 165mm + a pair of M25T tweeter 25mm and a pair of dedicated crossovers.

M2VX Features:

Nominal impedance: 4Ω
RMS Power: 200W
Max Power: 400W
Tweeter and woofer: 6-12dB/octave
Tolerance: ±20%
Crossover frequency: 2.500Hz
Dimensions: 12.8x8.9x3.6cm
Selectable attenuation level: 0, -3, -6dB

For further details consult the attached technical data sheets.

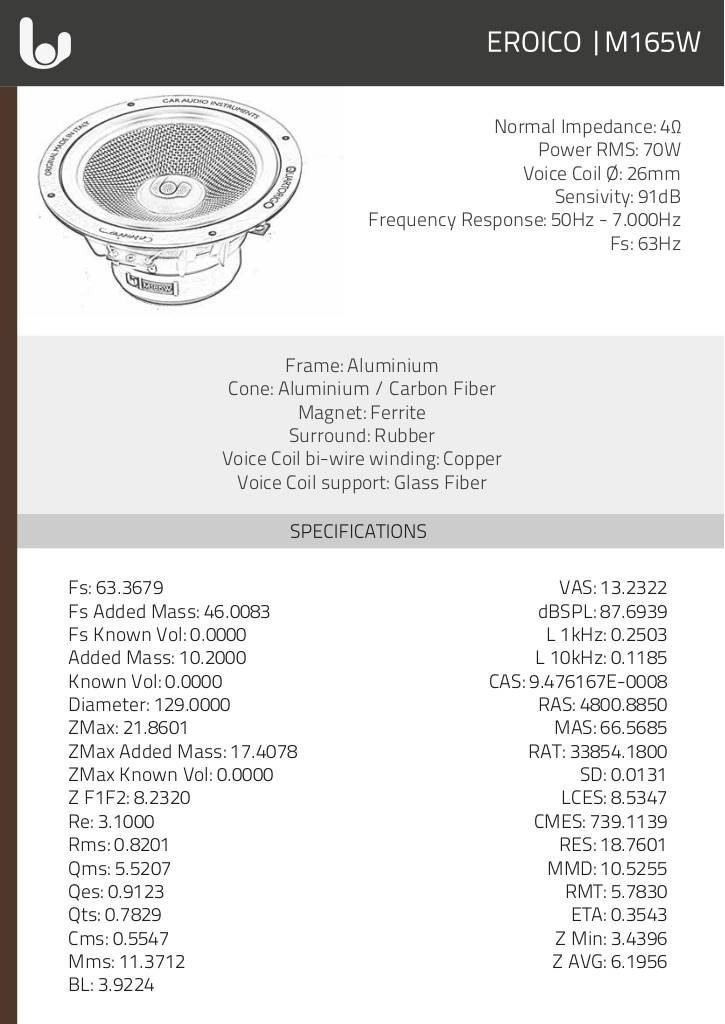

Scheda tecnica woofer

20140123174930-m165w.pdf

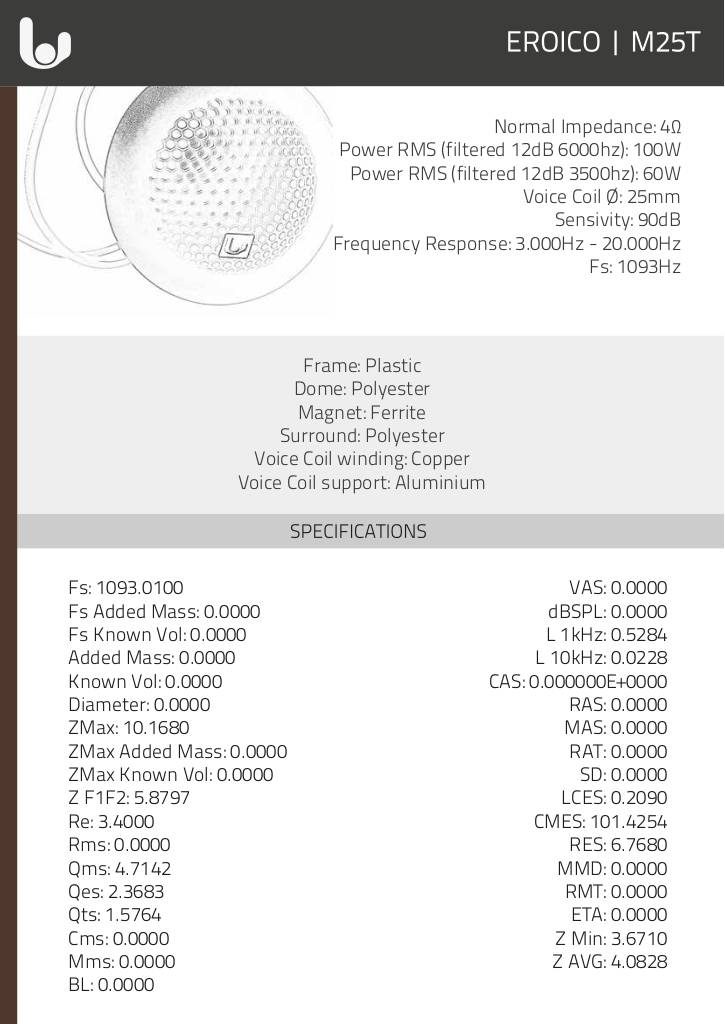

Scheda tecnica tweeter

20140123174930-m25t.pdf

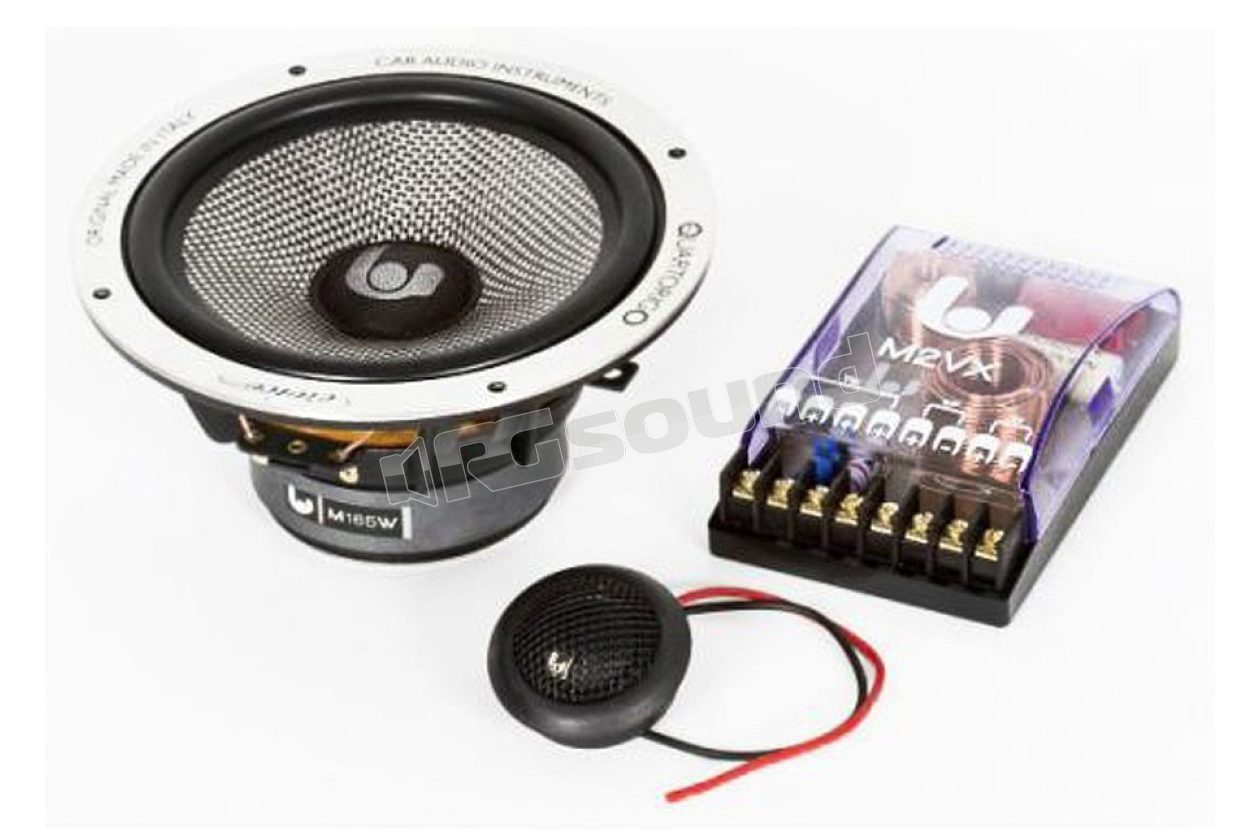

2x M165W Woofer 2x M25T Tweeter 2x Crossover
Discontinued
