M 6.3 PP Component system

Brax

Discontinued

Your price:
€ 3000,00
Price per single item (VAT included)
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
85 millimetri
Tweeter Size
60 millimetri
MAX Power
170 Watt
RMS Power
120 Watt
Frequency Response
49 Hertz
Sensitivity
88,9 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata

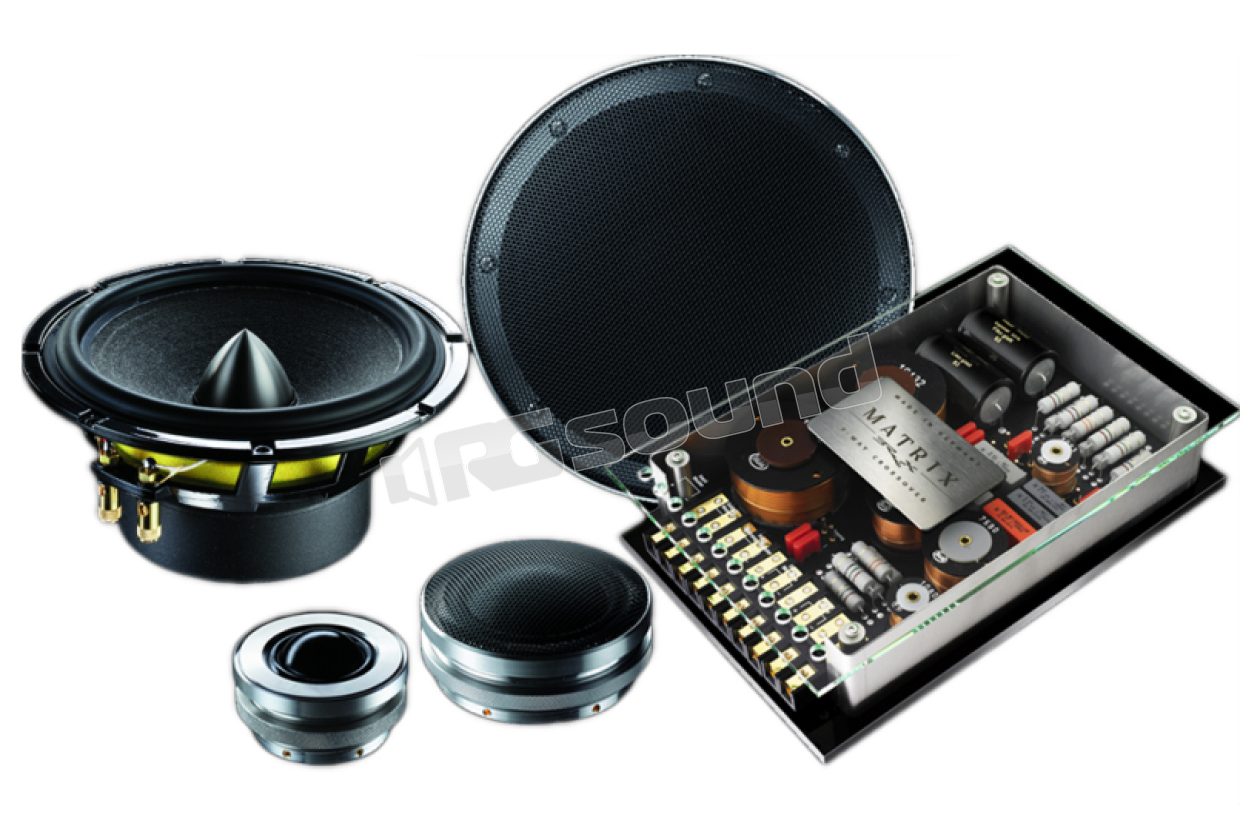

The Brax Matrix M 6.3 PP kit is composed of:

165mm woofer with cellulose cone treated with aluminum oxide for excellent lightness and rigidity. With ogive.

Midrange with silk dome.

The N40 tweeter, obtained from two pieces of Neodymium magnet carefully machined, has a stainless steel basket that has a heat dissipation capacity 350 times higher than conventional.

The 3-way crossover is built with components of absolute quality, high fidelity polyester capacitors and contained in a box with attractive design.

M 6.3 PP Features:

Specification mid/bass
RMS power handling 120 W
Max. power handling 170 W
Impedance 4 Ohms
DC resistance 3.4 Ohms
VAS 12.6 Liter
Qts 0.59
Sensitivity 88.9 dB
Resonance frequency 49 Hz
Diameter 167 mm
Installation diameter / mounting depth 143 mm / 64 mm
0
Specification midrange
Impedance 4 Ohms
DC resistance 3.4 Ohms
Resonance frequency 490 Hz
Installation diameter / depth 78 mm / 25 mm
Total diameter / height with grille 85 mm / 47 mm
Specifications Tweeter
Impedance 4 Ohms
DC resistance 3.4 Ohms
Resonance frequency 750 Hz
Installaion diameter / depth 50 mm / 25 mm
Total diameter / height with grille 60 mm / 41 mm

Scheda tecnica

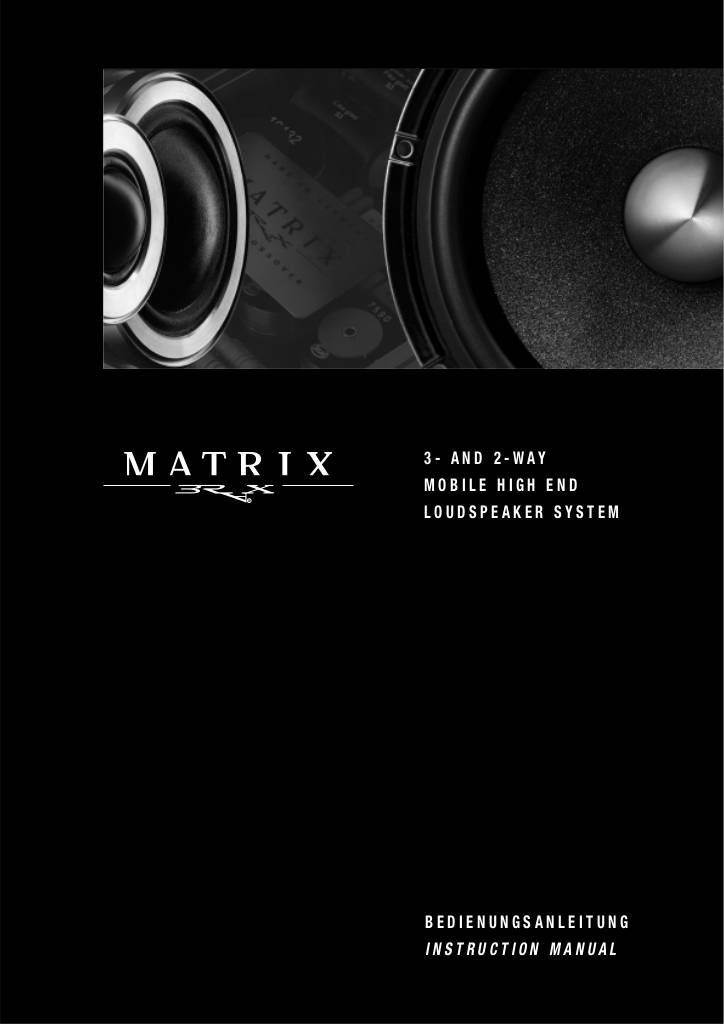

20130314183328-ba-matrix-speaker.pdf

Pair of woofers Pair of midranges Pair of tweeters Accessories
