M 6.2 PP Component system

Brax

Discontinued

Your price:
€ 1999,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
49 Hertz
Woofer Size
165 mm
Tweeter Size
60 millimetri
MAX Power
170 Watt
RMS Power
120 Watt
Sensitivity
88,9 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Neodymium

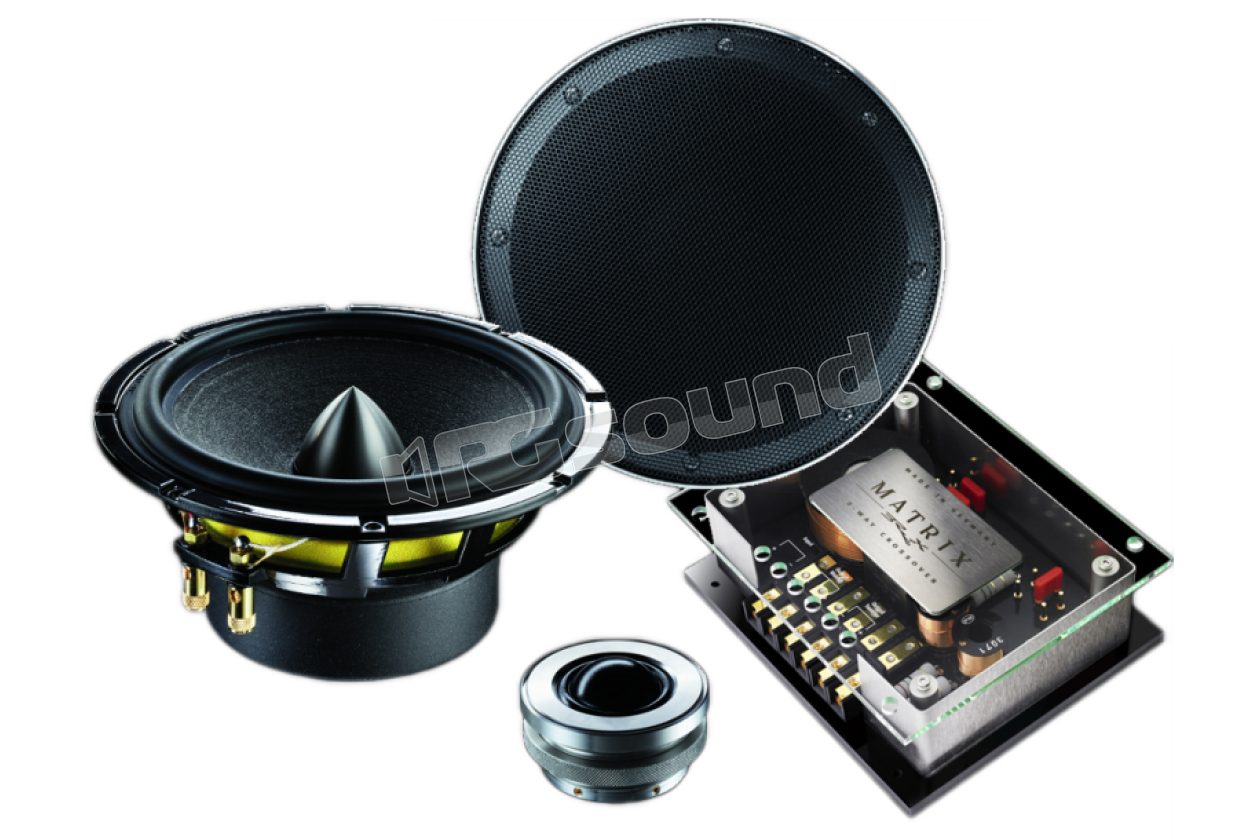

Brax presents the Matrix M 6.2 PP kit composed of: 2 woofers + 2 tweeters + 2 crossovers

165mm woofer with cone in cellulose treated with aluminum oxide for excellent lightness and rigidity. With ogive.

N40 tweeter, obtained from two pieces of Neodymium magnet carefully machined, has a stainless steel basket that has a heat dissipation capacity 350 times higher than conventional.

The 2-way crossover is built with components of absolute quality, high fidelity polyester capacitors and contains a box with attractive design.

BRAX woofer specifications - M 6.1 PP
Nominal impedance: 4 ohm
Re: 3.4 ohm
VAS: 12.6 liters
Qts: 0.59
Sensitivity: 88.9 dB
Fs: 49 Hz
Installation diameter: 143 millimeters
Mounting depth: 64 millimeters
Power handling: 120 Watt RMS

BRAX tweeter specifications - M 1.1
Nominal impedance: 4 ohm
Re: 3.4 ohm
Fs: 750 Hz
Installation diameter: 50 millimeters
Mounting depth: 25 millimeters
Total diameter: 60 mm
Height with grille: 41 mm
Power handling: 35 Watt RMS


2-way crossover specifications
Crossover frequency: 2.600 Hz
Jumper J1: 2 or 4 Ohm mode
Jumper J2: tweeter level: -3dB / -1.5dB / 0dB / +1.5dB / +3 dB
Dimensions: 56 mm x 170 mm x 144 mm

Scheda tecnica

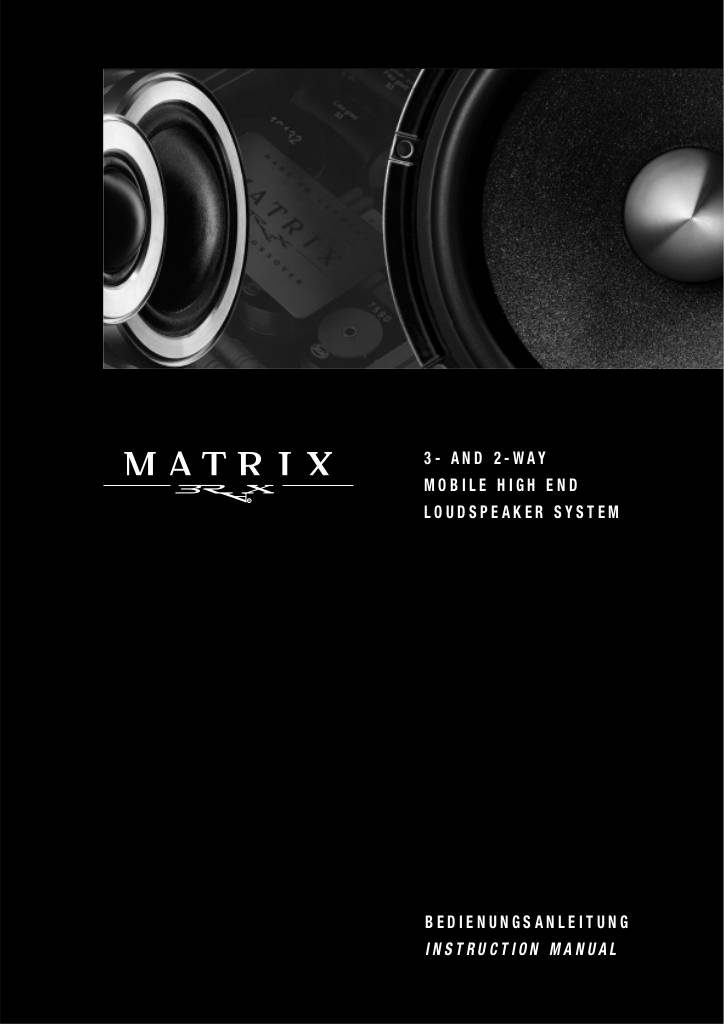

20130314183328-ba-matrix-speaker.pdf

Pair of midwoofers Pair of tweeters Pair of crossovers
