M 6.2 Component System

Brax

Discontinued

Your price:
€ 1899,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
46 Hertz
Woofer Size
165 mm
Tweeter Size
60 millimetri
MAX Power
170 Watt
RMS Power
120 Watt
Sensitivity
88,6 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Neodymium

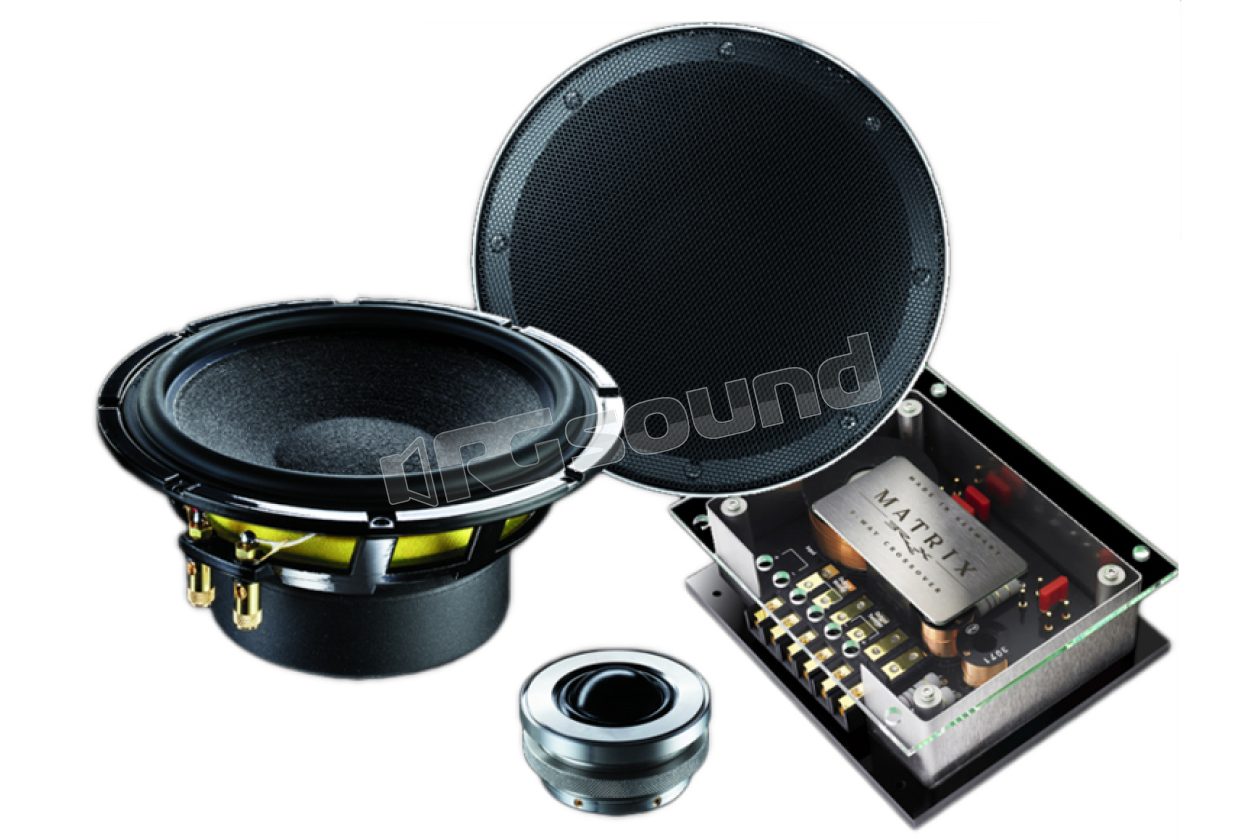

Brax presents the Matrix M 6.2 kit composed of:

165mm woofer with cellulose cone treated with aluminum oxide for excellent lightness and rigidity.

The N40 Tweeter, obtained from two pieces of Neodymium magnet carefully processed, has a stainless steel basket that has a heat dissipation capacity 350 times higher than conventional.

The 2-way Crossover is built with components of absolute quality, high-fidelity polyester capacitors and contains a box with attractive design.

M 6.2 Specifications

Specification mid/bass
RMS power handling 120 W
Max. power handling 170 W
Impedance 4 Ohms
DC resistance 3.4 Ohms
VAS 13.49 Liter
Qts 0.58
Sensitivity 88.6 dB
Resonance frequency 46 Hz
Diameter 167 mm
Installation diameter / mounting depth 143 mm / 64 mm
Specifications Tweeter
Impedance 4 Ohms
DC resistance 3.4 Ohms
Resonance frequency 750 Hz
Installaion diameter / depth 50 mm / 25 mm
Total diameter / height with grille 60 mm / 41 mm

Scheda tecnica

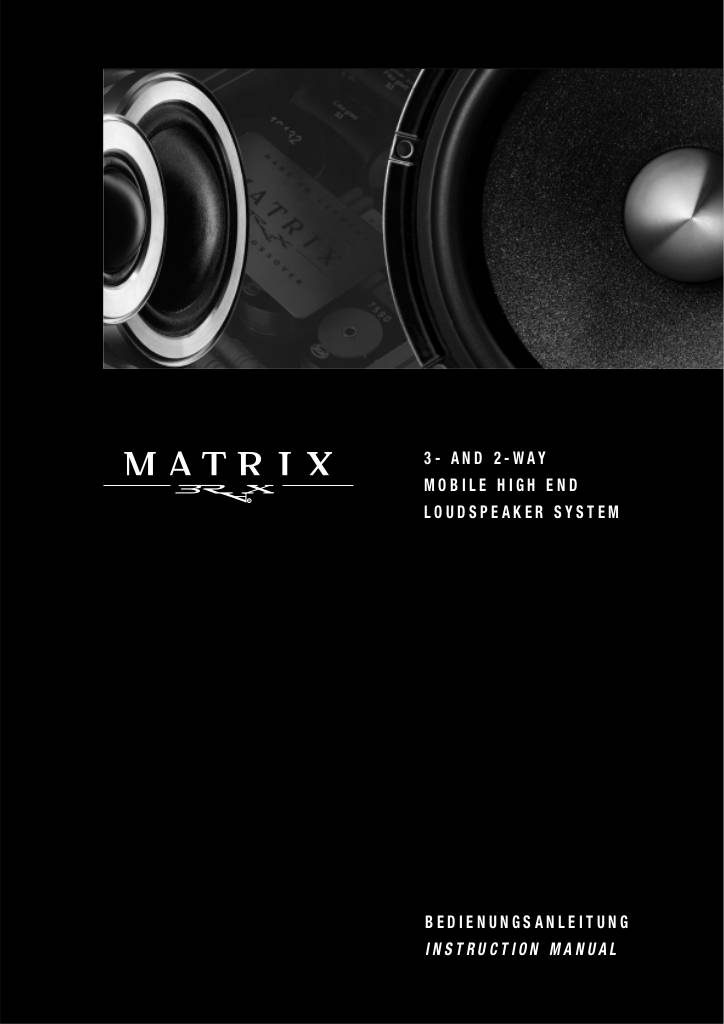

20130314183328-ba-matrix-speaker.pdf

Pair of midwoofers Pair of tweeters Pair of crossovers
Discontinued
