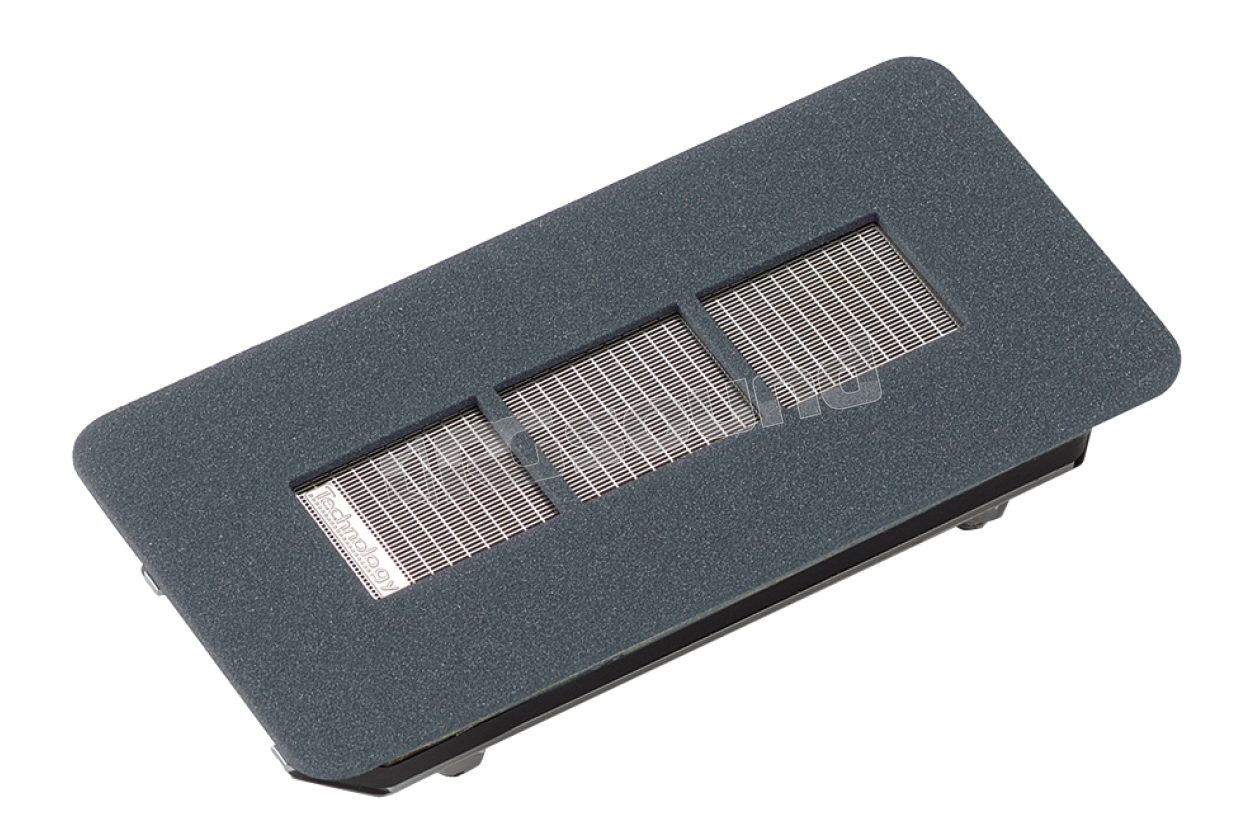

LS PLAN/S

Tec

Discontinued

Your price:
€ 190,00
Price per single item (VAT included)
Type
Tweeter
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
5000 - 30000 Hertz
Sensitivity
92 dB
Impedance
6 Ohm
Outer Diameter
33 X 79 mm
Installation Depth
10 mm
Tweeter Material
kapton e alluminio

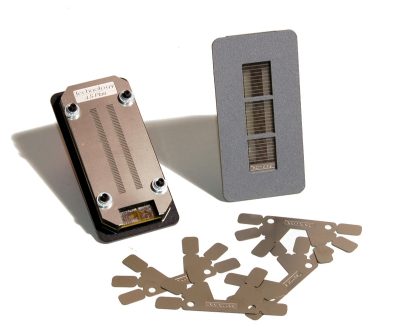

LS PLAN S planar tweeter, with minor paint defect - new product with 24 month warranty

Planar diaphragm made of kapton and aluminum sandwich.
Triple neodymium magnet.
High efficiency.
Compact dimensions.
Very low distortion
Constant impedance

Important installation note
In order to be able to fully utilize this planar tweeter to meet any type of sound requirement, we intentionally left the rear chamber open so that the reproducible range drops considerably compared to that declared under conditions of virtually non-existent distortion.
Thus leaving the possibility to use the tweeter as you see fit.
1) without the special adhesive tape on the rear chamber to obtain a greater reproducible range (4-30 kHz.) at the expense of distortion which can reach non-negligible levels, if high musical power is applied.
2) or by applying the special adhesive tape on the back of the tweeter, thus creating the sound reproduction conditions declared (5-30 kHz.) in the absence of distortion even at elevated levels of power applied.
Your choice of use, always keeping in mind the real installation requirements.

NB. do not attempt to loosen the magnet fastening screws, as special equipment is required for their assembly which repel each other with a force of approximately 30 kg. each.
Tampering with the tweeter by unauthorized personnel will void the warranty.

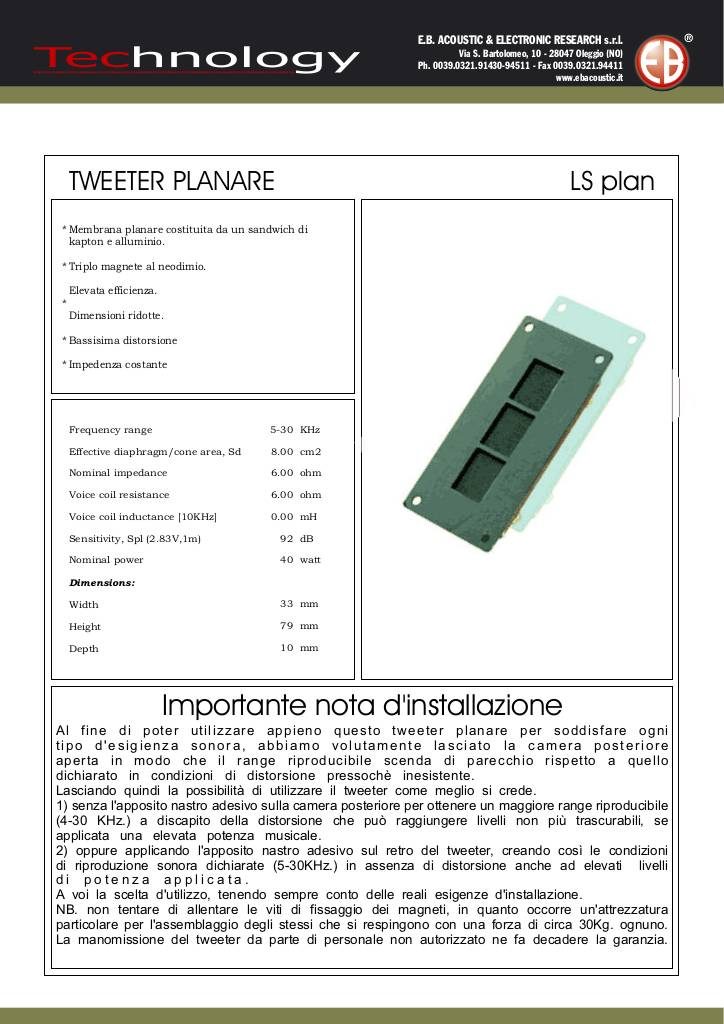

scheda tecnica - parametri - crossover

20091105132649-lsplan.pdf
Discontinued
