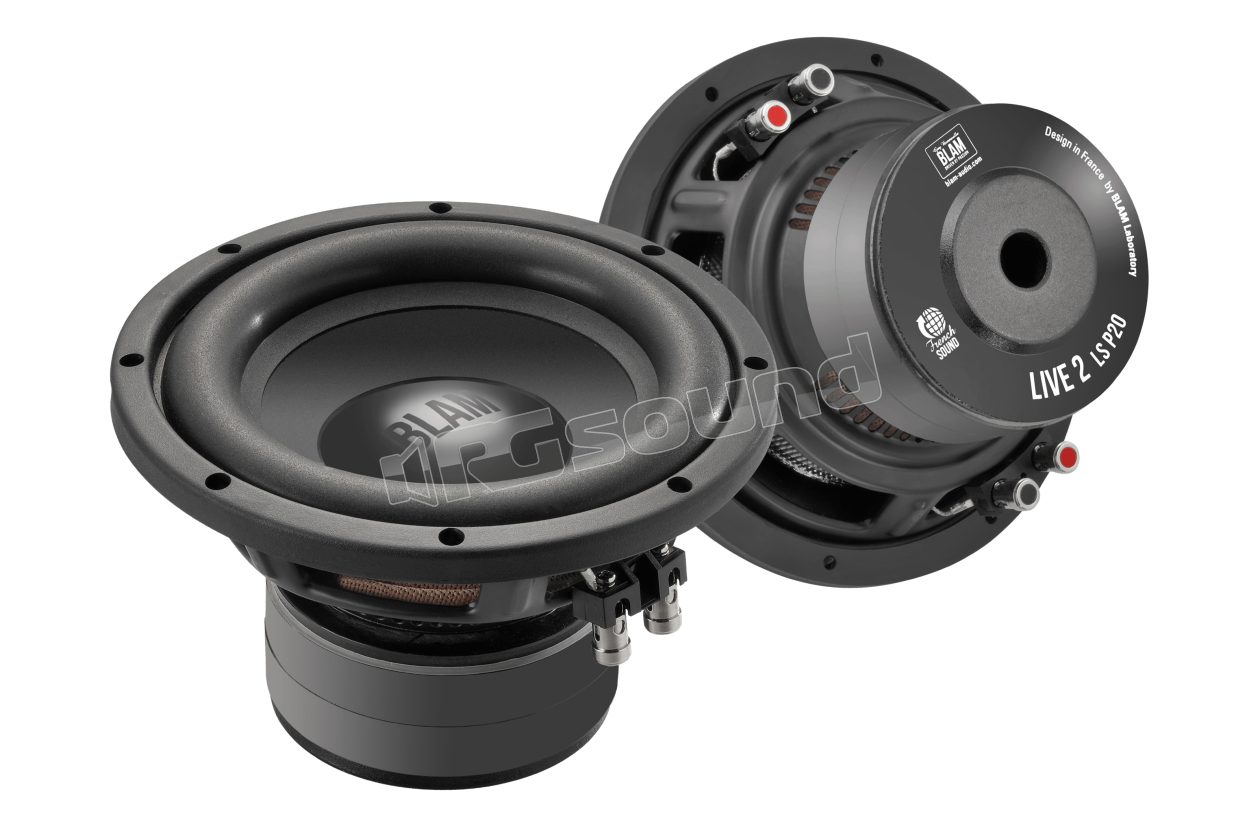

LS P20 20cm subwoofer, dual 2 Ohm voice coil, 250 Watt RMS

BLAM

Discontinued

Your price:
€ 180,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
35 - 500 Hertz
Sensitivity
89 dB
Impedance
2 + 2 Ohm
Weight
3,9 Kg
Installation Depth
121 mm
Woofer Material
Cono in polipropilene

BLAM LS P20 subwoofer 20cm (8") with dual 2 Ohm voice coil, is the ideal complement to Blam LIVE series systems and was designed to meet the growing demand for powerful but small-sized subwoofers. LS P20 has a diameter of only 200 mm for 250 Watts of continuous dissipatable power and working volumes between 10 and 25 liters.

Technical features of BLAM LS P20 subwoofer

200 mm subwoofer
Power 500 W max / 250 W nominal
Frequency response from 35 Hz to 500 Hz
Sensitivity 89.1dB
Impedance 2 x 2Ω
Steel basket
Injected polypropylene membrane
Large peripheral suspension in foam
Long-life "conex" spider (PCK)
Dual 50 mm voice coil on aluminum support
Dual magnetic motor 120mm x 20mm
Flared pole
Subwoofer optimized for closed enclosures from 10L to 25L

Included accessories:
Screw
Instruction manual

Recommended closed enclosure:
Internal volume Vb F -3 dB Boost
10L 41Hz 0.3dB at 90Hz
15L 41Hz 0.1dB at 110Hz
25L 40Hz No increase

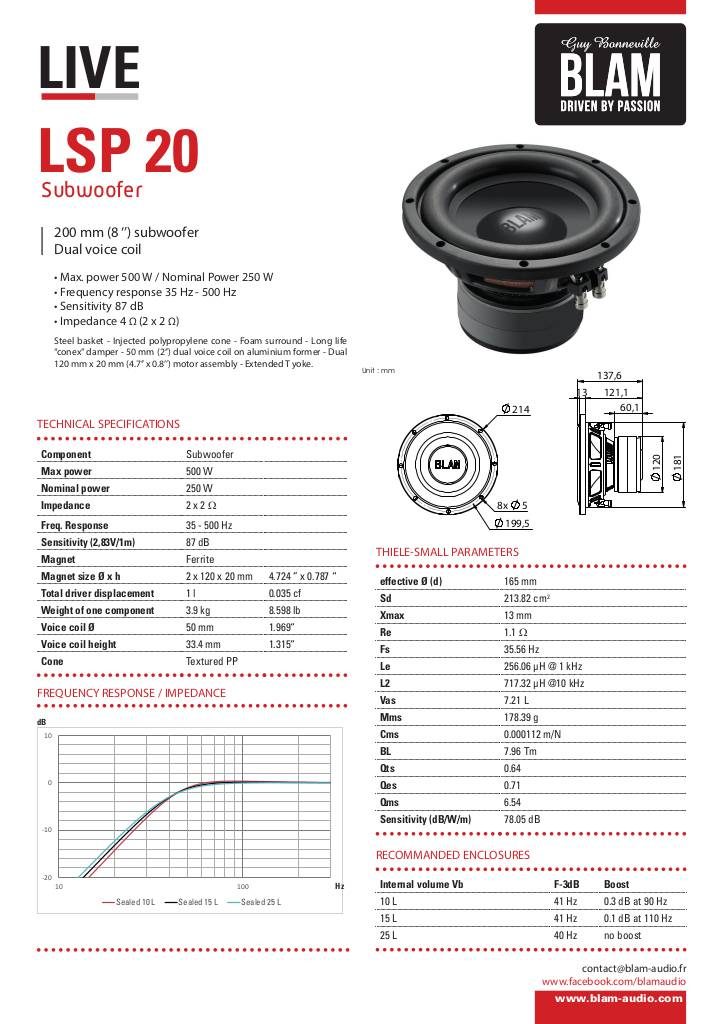

Scheda tecnica

n-20220120142312-lsp20-technical-sheet-blam-live2.pdf
