LS 29 neo tweeter with triple magnet

Tec

Discontinued

Your price:
€ 289,00
Price per pair (VAT included)
Type
Tweeter
Dome Size
28 mm
MAX Power
360 Watt
RMS Power
190 Watt
Frequency Response
1200 - 26000 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Outer Diameter
51,5 mm
Installation Depth
31,7 mm
Tweeter Material
seta trattata

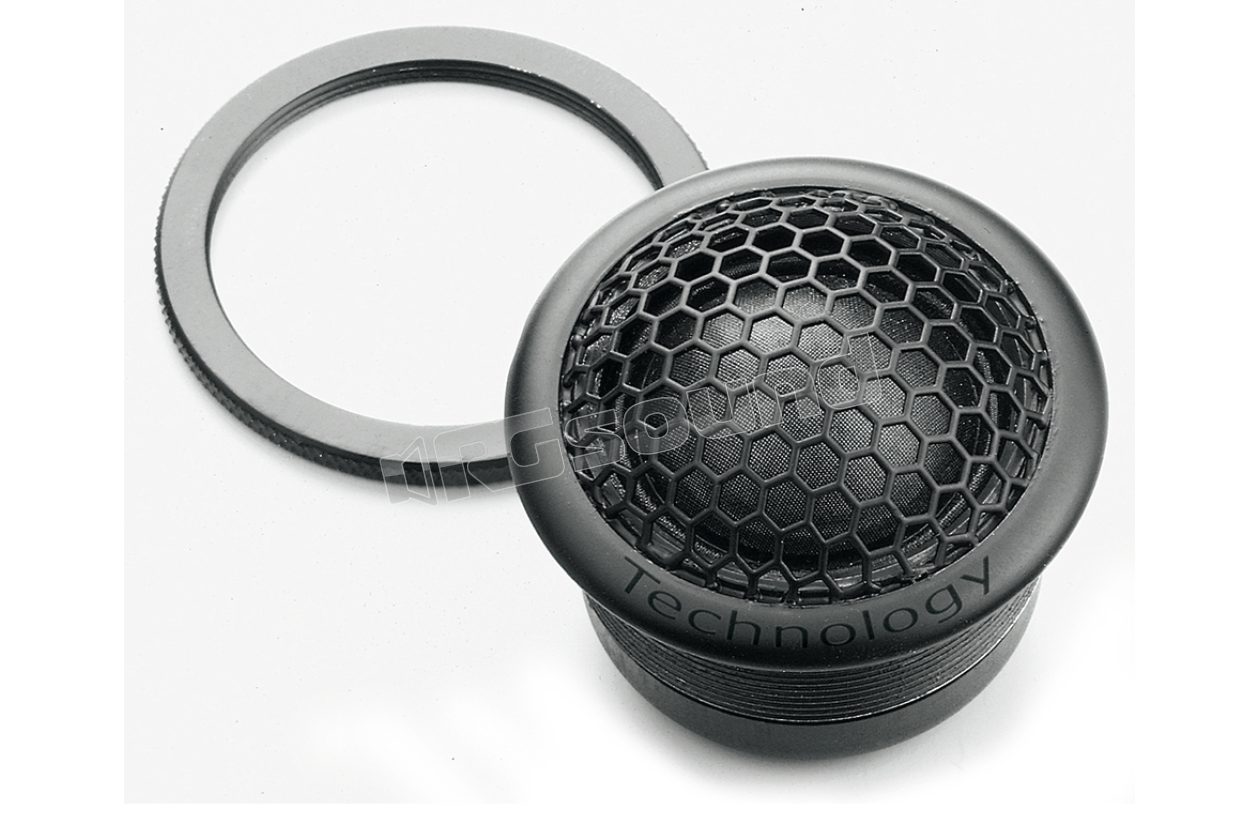

LS29neo high-quality tweeter with 38mm silk dome in black color with triple magnet.

LS-29neo uses the same technology of home audio components used in high-end systems, with additional refinements that optimize its use in the car; high power handling

The dome has a diameter of 28 mm and is made of a special treated silk that guarantees excellent musicality. The magnetic system, unique of its kind, consists of three high-power neodymium magnets, SD technology (Symmetric Drive) is used to limit induced Lorenz currents.

The rear resonance chamber is optimized to obtain the minimum resonance frequency which in this tweeter is only 750 Hz. The voice coil is mounted very close to the dome to minimize the rocking tendency.

Main features

  • Nominal power 80 watt
  • Frequency range 1.200 - 26.000 Hz
  • Fs: 750 Hz
  • 28 mm silk dome
  • Sensitivity 90 dB
  • Rear resonance chamber to lower Fs
  • Triple neodymium magnet
  • High power handling both mechanical and electrical

Also available in light silver finish version LS 29 Neo Silver

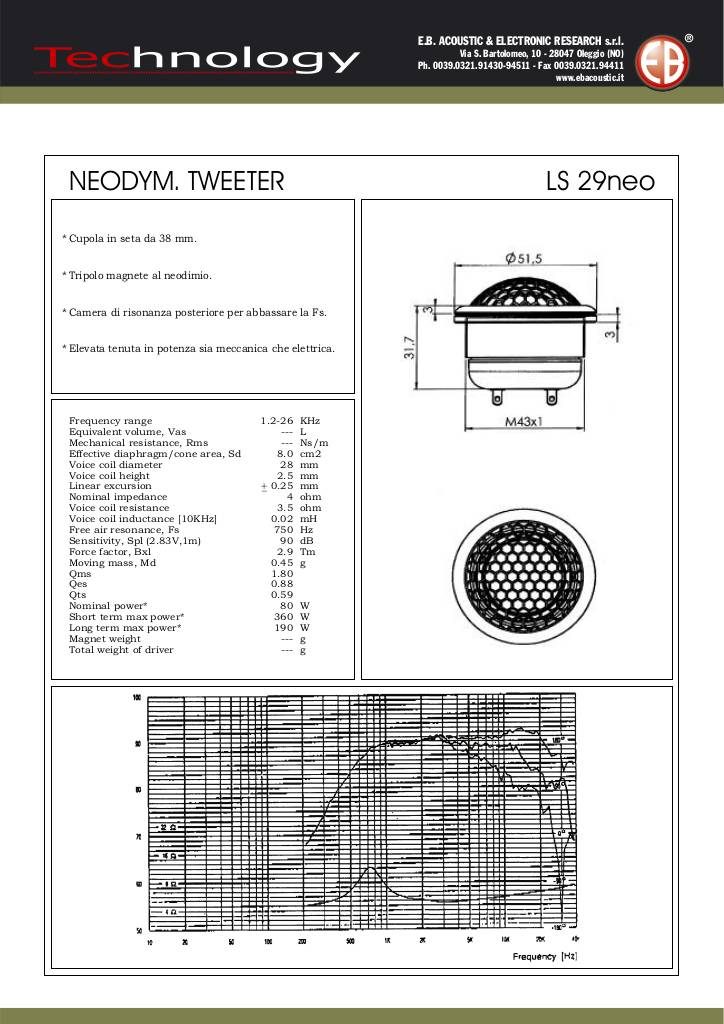

All specifications in the technical sheet

scheda tecnica - specifiche - grafico - progetto crossover

20061021153336-ls29neo.pdf

Pair of tweeters Pair of fixing rings Manual with detail for crossover construction
Discontinued
