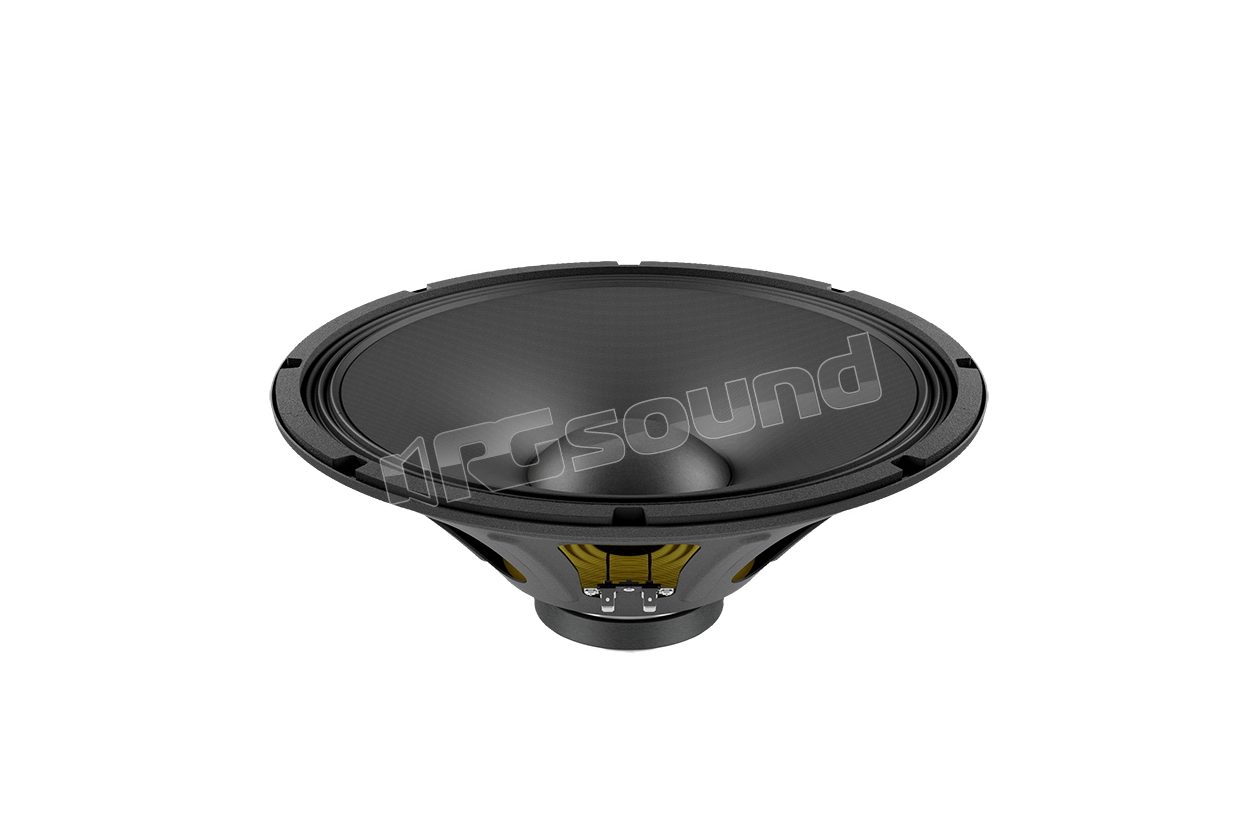

LBASS15-15 Bass Speaker 15"/380mm

LaVoce
Your price:
€ 77,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

LaVoce LBASS15-15-8 Bass Speaker 15"/380mm

Code 70R80150

LBASS15-15-8 Features

  • 1.5 inch copper voice coil
  • Sensitivity 97 db/spl
  • Program power handling 200 watts
  • Triple roll surround
  • Balanced and rich overall tone
  • Solid bass and well-defined high midrange

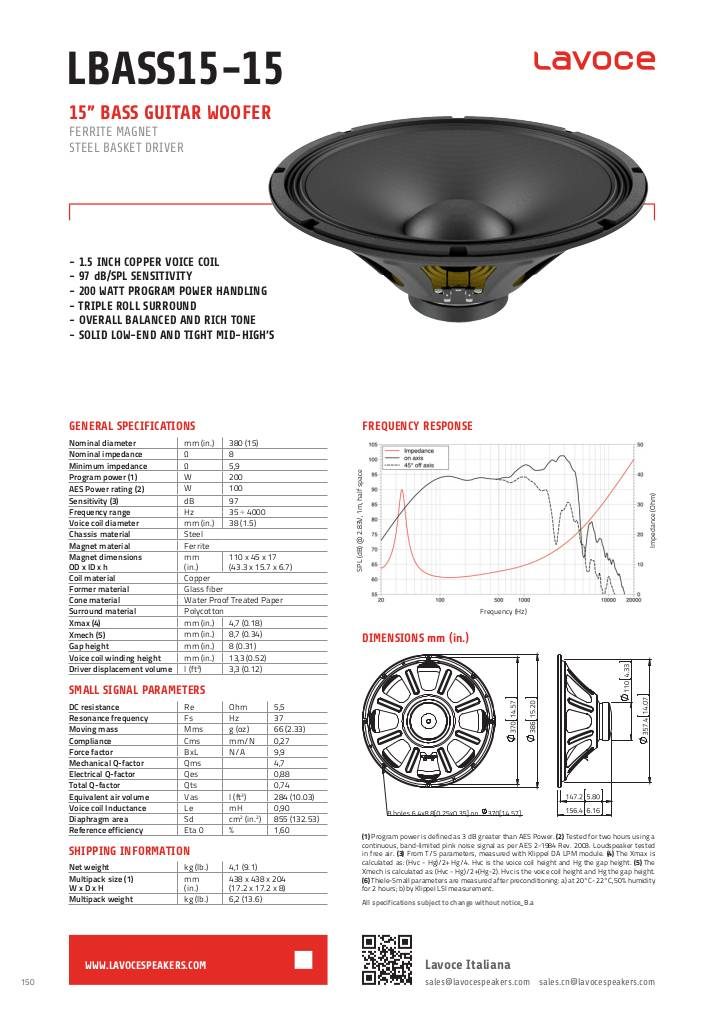

scheda tecnica

1549117614-lbass15-15-8-1.pdf

LaVoce LBASS15-15-8 Technical Specifications

  • Nominal diameter mm (in) 380 (15)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 5.9
  • Program power W 200
  • AES power W 100
  • Sensitivity dB 97
  • Frequency range Hz 35 ÷ 4000
  • Voice coil diameter mm (in) 38 (1.5)
  • Frame material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 110 x 45 x 17 (43.3 x 15.7 x 6.7)
  • Coil material Copper
  • Cone material Water-proof treated paper
  • Surround material Polycotton
  • Xmax mm (in) 4.7 (0.18)
  • Xmech mm (in) 8.7 (0.34)
  • Gap height mm (in) 8 (0.31)
  • Voice coil winding height mm (in) 13.3 (0.52)
  • Driver displacement volume l (ft³) 3.3 (0.12)
  • DC resistance Ohm 5.5
  • Resonance frequency Hz 37
  • Moving mass g (oz) 66 (2.33)
  • Compliance mm/N 0.27
  • Force factor N/A 9.9
  • Mechanical Q factor 4.7
  • Electrical Q factor 0.88
  • Total Q factor 0.74
  • Equivalent air volume l (ft³) 284 (10.03)
  • Voice coil inductance mH 0.90
  • Diaphragm area cm² (in.²) 855 (132.53)
  • Reference efficiency 1.6%
  • Net weight kg (lb) 4.1 (9.1)
  • Multipack dimensions L x W x H 438 x 438 x 204 (17.2 x 17.2 x 8)
  • Multipack weight kg (lb) 6.2 (13.6)
€ 77,00 Price incl. VAT
