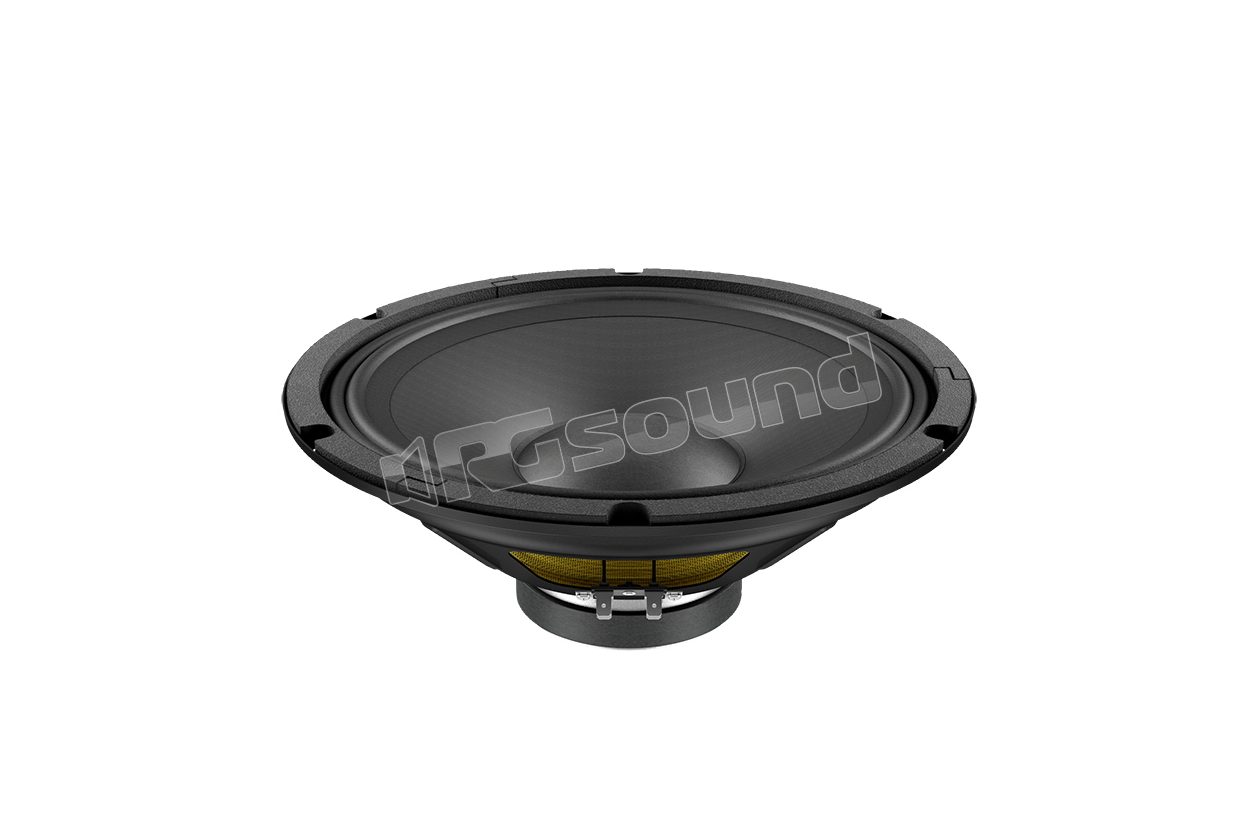

LBASS12-15 12"/300mm Bass Speaker

LaVoce
Your price:
€ 60,80
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

LaVoce LBASS12-15-8 Bass Speaker 12"/300mm

Main features of the LBASS12-15-8 speaker

  • 1.5 inch copper voice coil
  • Sensitivity 96 db/spl
  • Program power handling 200 watt
  • Balanced and rich overall tone
  • Solid bass and intense upper midrange

scheda tecnica

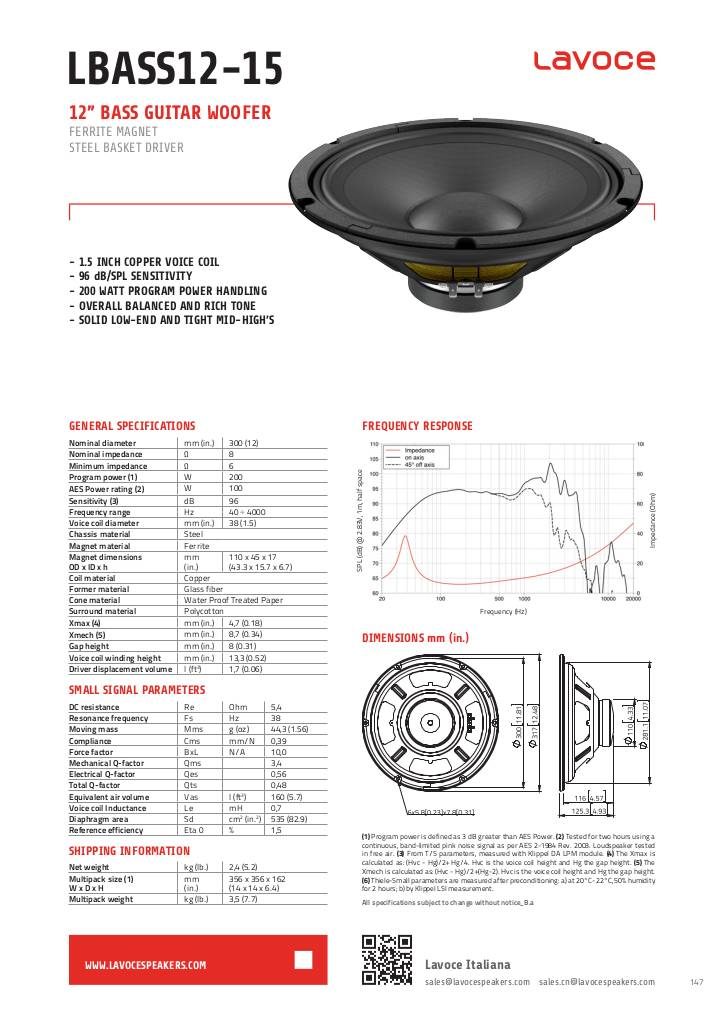

1549117607-lbass12-15-8-1.pdf

LaVoce LBASS12-15-8 Technical specifications

  • Nominal diameter mm (in) 300 (12)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6
  • Program power W 200
  • AES power W 100
  • Sensitivity dB 96
  • Frequency range Hz 40 ÷ 4000
  • Voice coil diameter mm (in) 38 (1.5)
  • Frame material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 110 x 45 x 17 (43.3 x 15.7 x 6.7)
  • Coil material Copper
  • Structure material Fiberglass
  • Cone material Waterproof treated paper
  • Surround material Polycotton
  • Xmax mm (in) 4.7 (0.18)
  • Xmech mm (in) 8.7 (0.34)
  • Gap height mm (in) 8 (0.31)
  • Voice coil winding height mm (in) 13.3 (0.52)
  • Driver displacement volume l (ft³) 1.7 (0.06)
  • DC resistance Ohm 5.4
  • Resonance frequency Hz 38
  • Moving mass g (oz) 44.3 (1.56)
  • Compliance mm/N 0.39
  • Force factor N/A 10.0
  • Mechanical Q factor 3.4
  • Electrical Q factor 0.56
  • Total Q factor 0.48
  • Equivalent air volume l (ft3) 160 (5.7)
  • Voice coil inductance mH 0.7
  • Diaphragm area cm2 (in.2) 535 (82.9)
  • Reference efficiency 1.5%
  • Net weight kg (lb) 2.4 (5.2)
  • Multipack dimensions L x W x H 356 x 356 x 162 (14 x 14 6.4)
  • Multipack weight kg (lb) 3.5 (7.7)
