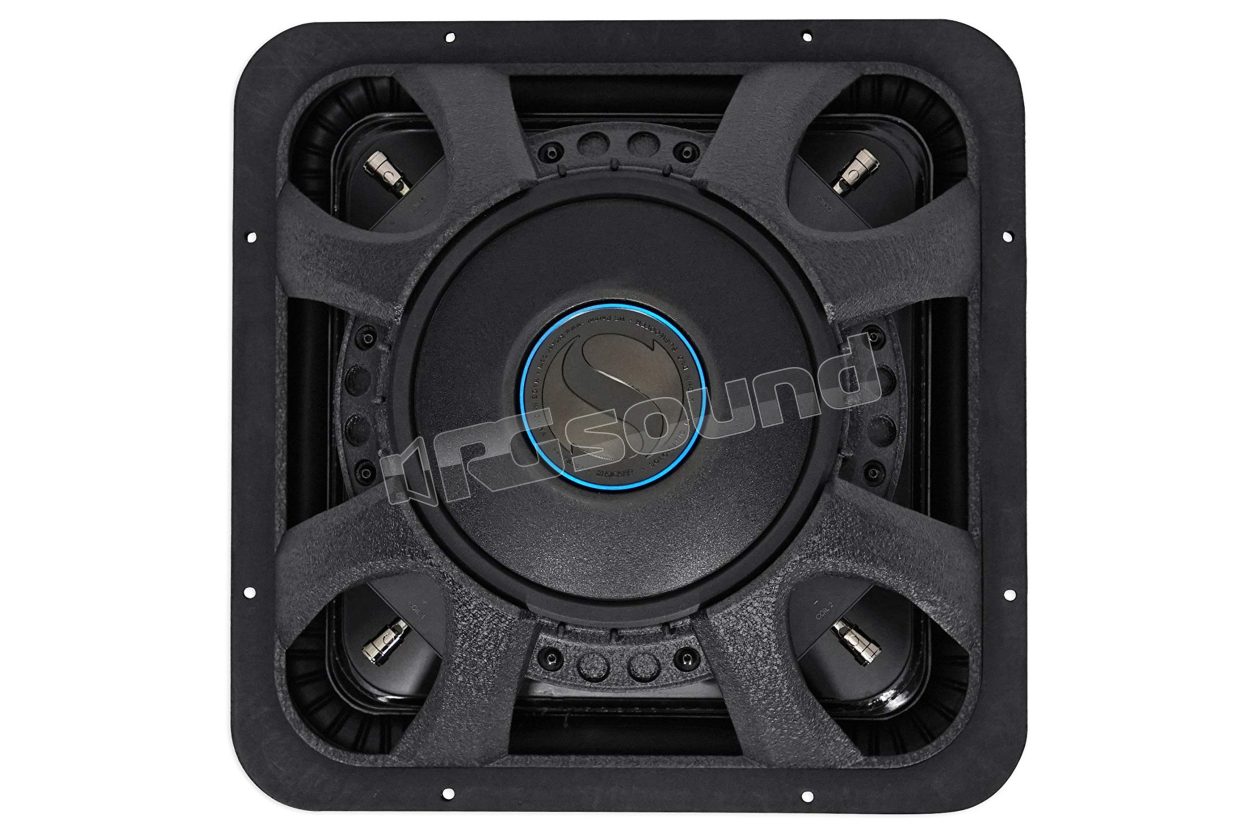

L7S152 15" 380 mm sub, dual 2 Ohm voice coil

Kicker

Discontinued

Your price:
€ 449,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
380 mm
MAX Power
2000 Watt
RMS Power
1000 Watt
Frequency Response
18-100 Hertz
Sensitivity
89.4 dB
Impedance
2 + 2 Ohm
Installation Depth
221 mm
Woofer Material
Cono in polipropilene

Subwoofer L7S152 subwoofer 15" / 380 mm, includes a large diameter spider for reduced flexing, greater durability and superior accuracy. High temperature voice coil wire winding completes a powerful motor that maximizes every watt supplied to it.

L7S152 Technical Features:

Dual 2 Ohm voice coil
Injection molded polypropylene cone
Patented corner braces Minimize distortion
360 degree rear lift
Ribbed Santoprene surround with blue stitching
Back plate and pole piece, Plus perimeter venting for excellent thermal management
Thick tinsel leads
Large ceramic magnet
Cast aluminum basket
Spring loaded speaker terminals plated in satin nickel

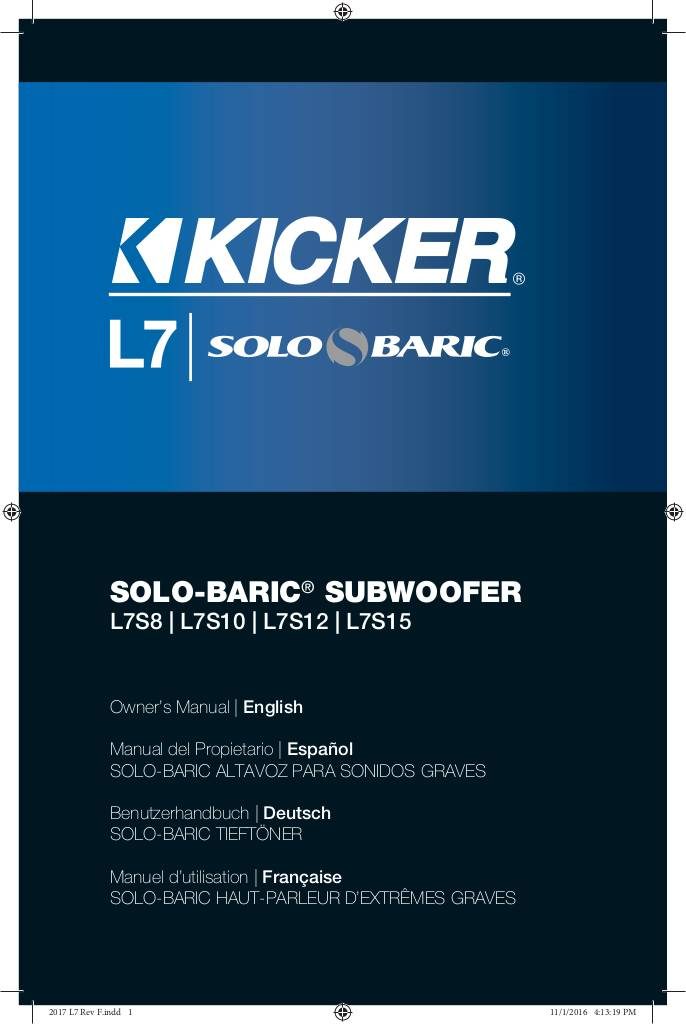

Manuale di istruzioni

n-20181122122026-2017-l7s-rev-f.pdf

L7S152 Technical Features

Size (IN.,CM) 15, 38.1

Impedance (OHMS) 2 DVC

Amplifier Power Rating (WATTS PEAK/RMS)* 2000/1000

Sensitivity (dB 1w/1m) 89.4

Frequency Response (Hz) 18-100

Mounting Depth (IN.,CM) 8-11/16; 22.1

Mounting Hole, Square (IN.,CM) 13-3/4; 34.9

Minimum Sealed Box Volume (CU. FT., liters) 2.0 / 56.64

Maximum Sealed Box Recording Volume (CU. FT., liters) 6.0; 169.9

Minimum Vented Box Volume (CU. Ft., liters) 3.0 / 85.0

Maximum Vented Box Recording Volume (CU. Ft., liters) 6.0; 169.9

What's in the Box? a 15 inch subwoofer, user manual, two stickers

Discontinued
