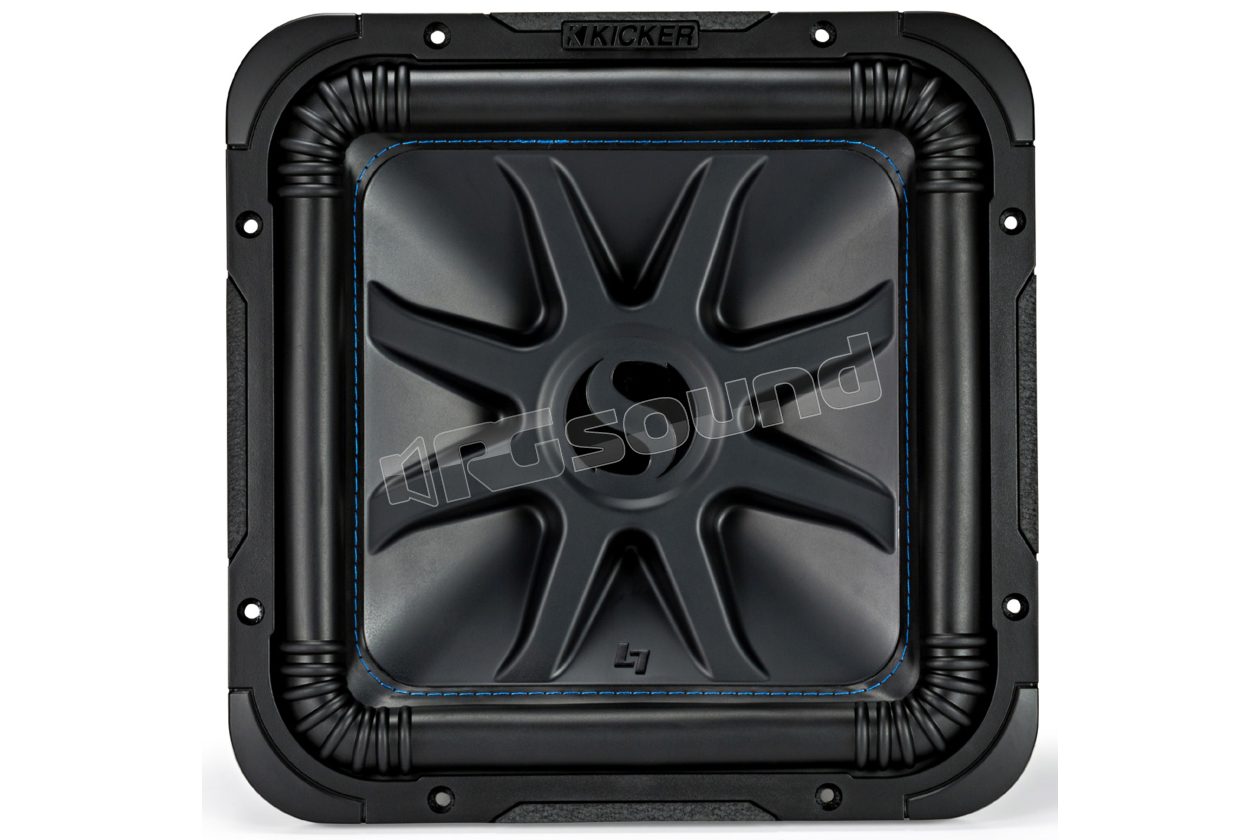

L7S124 12" sub 300 mm

Kicker

Discontinued

Your price:
€ 349,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1500 Watt
RMS Power
750 Watt
Frequency Response
20-100000 Hertz
Sensitivity
88.6 dB
Impedance
4 Ohm
Installation Depth
169 mm
Woofer Material
poliestere

The Solo-Baric L7S124 revolves around KICKER's most advanced cone design. The 360-degree reinforcement, in constant contact, adheres directly to all contours of the square cone, adding targeted strength, reliable performance, and accurate response.

Features:

Dual four ohm voice coil
Injection-molded polypropylene cone
Patented corner braces Minimize distortion
360-degree rear lift
Ribbed Santoprene surround with blue stitching
Rear plate and pole pin, perimeter Plus vent for excellent thermal management
Thick tinsel leads
Large ceramic magnet
Cast aluminum basket
Spring-loaded speaker terminals plated in satin nickel

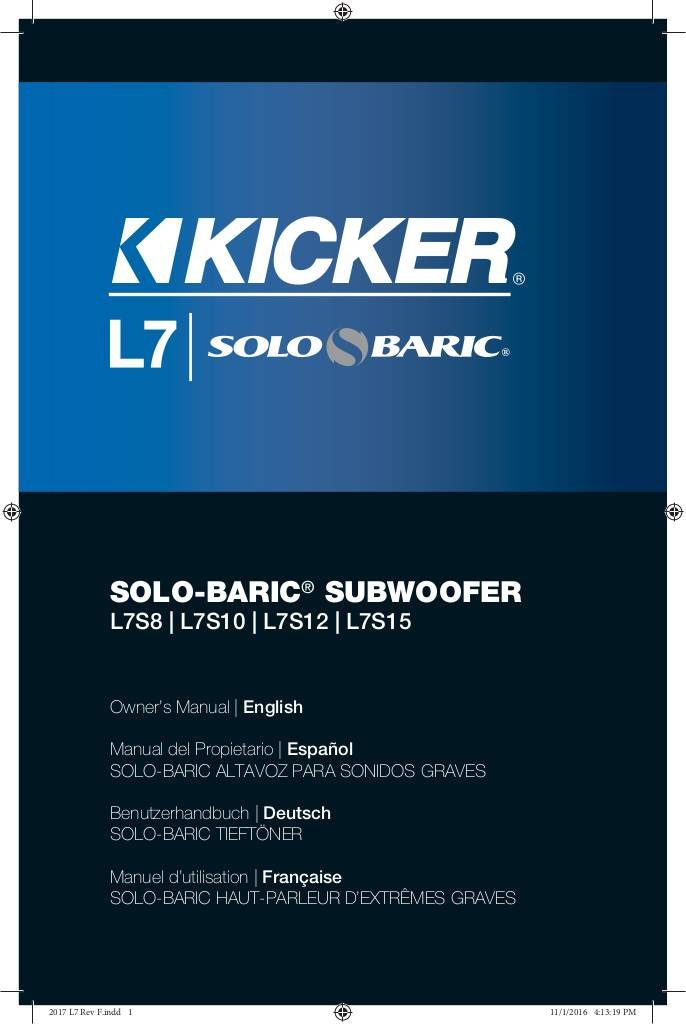

Manuale di istruzioni

n-20181122121325-2017-l7s-rev-f.pdf

Size (IN.,CM)

12, 30.5

Impedance (OHMS)

4 DVC

Max Rec Amplifier Power (WATTS PEAK/RMS)*

1500/750

Sensitivity (dB 1w/1m)

88.6

Frequency Response (Hz)

20-100

Mounting Depth (IN.,CM)

6-11/16, 16.9

Mounting Cutout, Square (IN.,CM)

11-1/16, 28.1

Min Rec Sealed Box Volume (CU. FT., Liters)

1.25, 35.4

Max Rec Sealed Box Volume (CU. FT., Liters)

2.0, 56.64

Min Rec Vented Box Volume (CU. Ft., Liters)**

1.75, 49.6

Max Rec Vented Box Volume (CU. Ft., Liters)**

3.25, 92.1

What's in the box?

one 12-inch subwoofer, one owner's manual, two stickers
