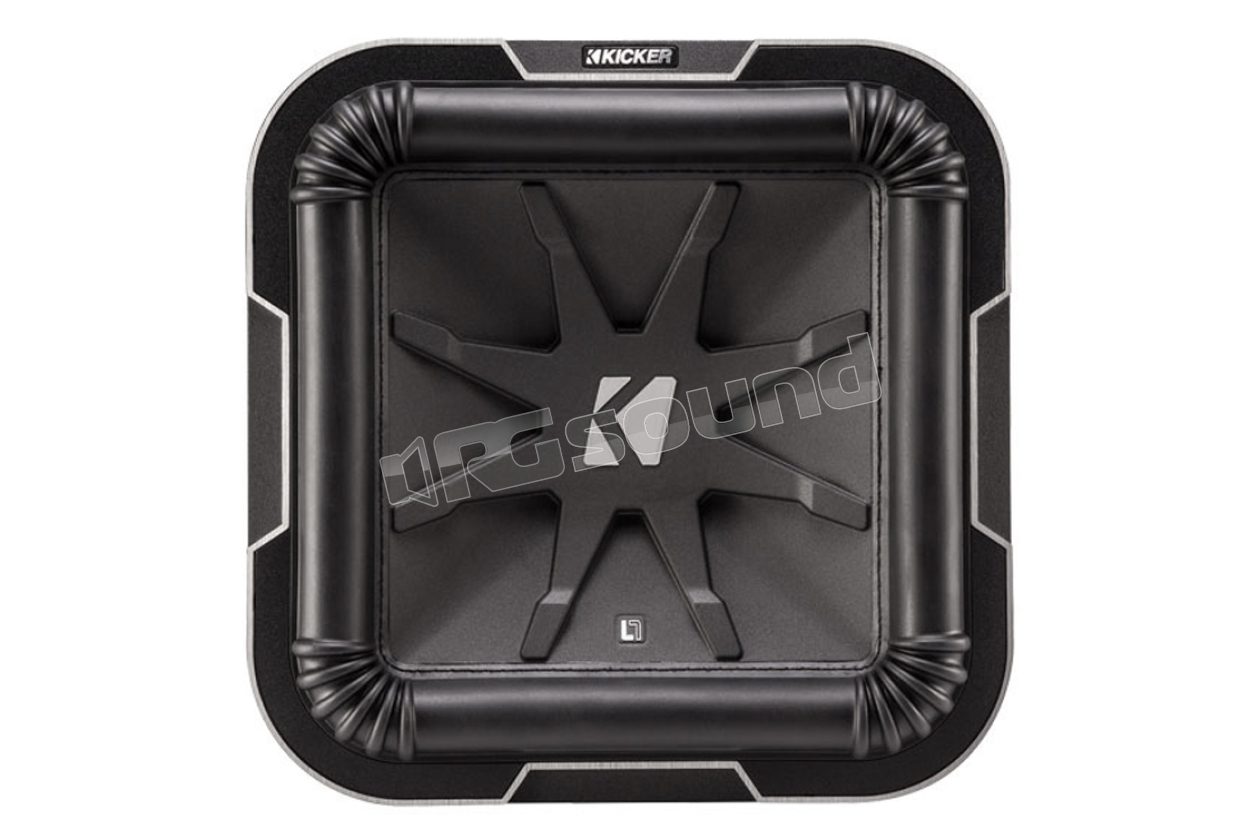

L784 L7 20 cm sub

Kicker

Discontinued

Your price:
€ 299,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Frequency Response
28-100 Hertz
Sensitivity
82.4 dB
Impedance
4 Ohm
Installation Depth
138 mm

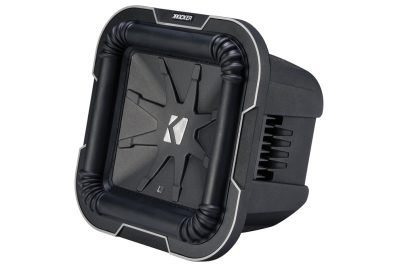

Kicker L784 200 mm (8") subwoofer from the L7 line composed of unique subs on the market, with a special cone shape designed to produce more output power.

New Kicker L7 line

L784 200 mm subwoofer reaches new heights in technology and design, capturing the attention of judges at the CES® Innovation Award 2015 and represents the most precious jewel in the crown among high-end subwoofers. The square shape of the cone of the L7 line subs provides 20% more surface area compared to a comparable circular sub. With a larger cone it moves more air, so you get even more power!

Greater power handling requires an adequate motor, large magnets and an aluminum coil allow quality reproduction, even at high power levels. The patented Santoprene™ corners, and a special suspension system, allow the Kicker L784 sub distortion-free reproduction at any volume level.

L784 technical specifications

Impedance 4 Ohm

Sensitivity 82.4 dB

Nominal power 500 W

Frequency response 28 - 100 Hz

Qts 0.735

Qms 8.828

Qes 0.802

Vas 9.127 L

Mounting depth 138 mm

Mounting hole 184 mm

L784 specifications in sealed enclosure

Minimum recommended volume 11.33 L

Recommended volume 21.24 L

Nominal power 500 W

L784 specifications in compact ported enclosure

Recommended volume 18.69 L

Port opening 3.8 x 24 cm (1.5x9.5")

Port length 49 cm (19.25")

Nominal power 500 W

L784 specifications in SQ (sound quality) ported enclosure

Recommended volume 28.32 L

Port opening 5 x 24 cm (2x9.5")

Port length 54 cm (21.25")

Nominal power 500 W

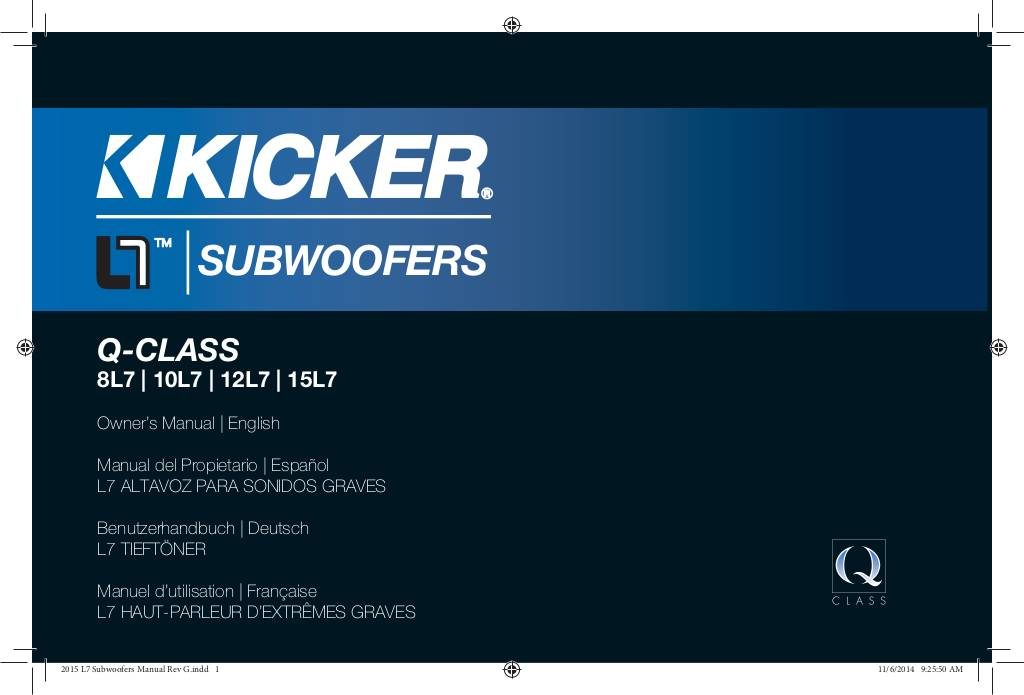

Manuale utente

20160308103358-l7-revg.pdf
