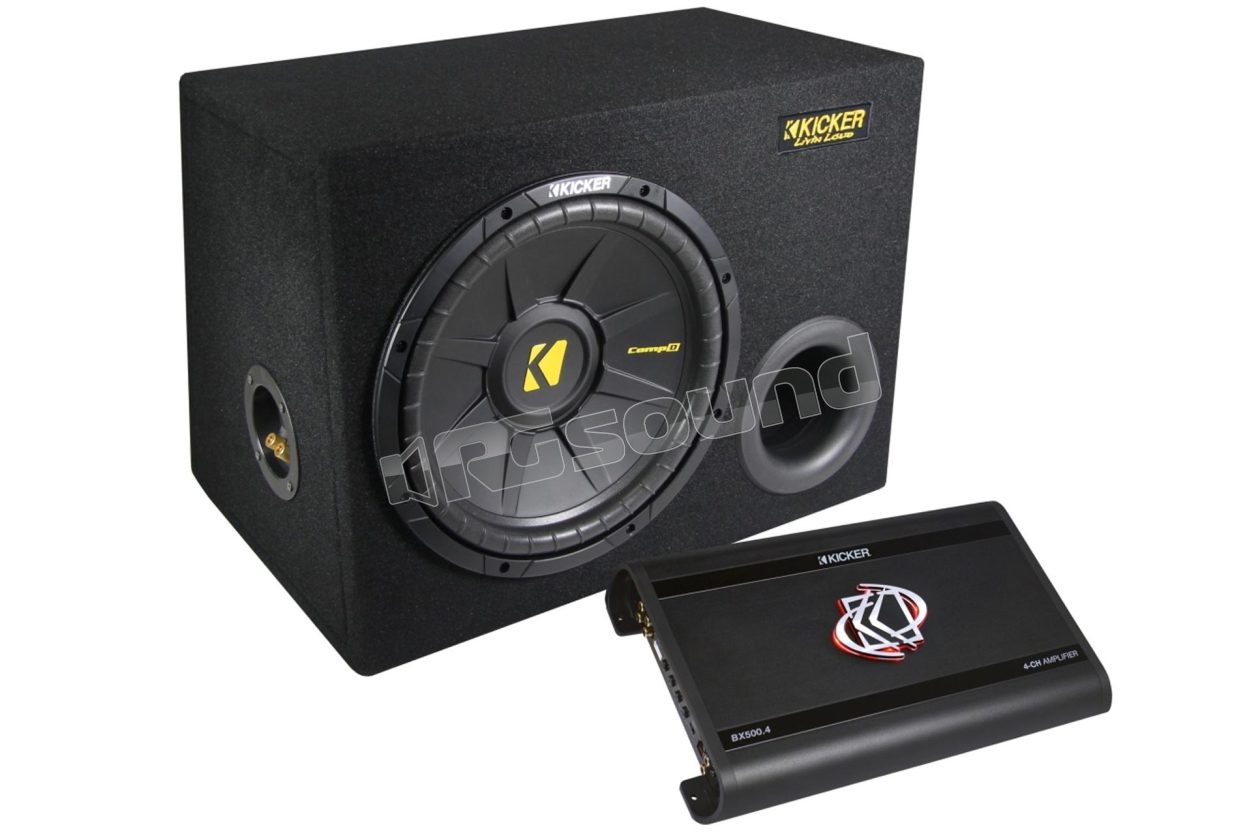

KPX500.4 30cm sub in ported enclosure and 4-channel amplifier

Kicker

Discontinued

Your price:
€ 469,00
Price per single item (VAT included)
Type
Powered subwoofer
Speaker Size
300 mm
MAX Power
600 Watt
RMS Power
300 Watt
Frequency Response
27 - 500 Hertz
Sensitivity
88 dB
Impedance
2 + 2 Ohm
Enclosure Type
Reflex Enclosure

Kicker KPX500.4 30 cm subwoofer in reflex enclosure and four-channel amplifier.

The KPX500.4 package contains the Kicker CWD122 subwoofer in a 48-liter bass-reflex enclosure and the two-channel BX500.4 amplifier with dedicated remote control.

The steel structure and polypropylene cone with stabilizer guarantee the CWD122 sub robustness and flexibility, for high performance and powerful bass.

Patented Quad Venting™ cooling system to keep air flowing freely around the motor structure, so the sub doesn't overheat and you get precise bass at high performance.

The BX500.4 amplifier from the Kicker BX series is made with the best components and with the aim of improving in-car audio, ensuring high standards for sound reproduction.

CWD122 Technical Specifications

Impedance 2+2 Ohm DVC

Sensitivity 88.3 dB

Nominal Power 300 W

Maximum Power 600 W

Frequency Response 27 - 500 Hz

BX500.4 Amplifier Features

Four-channel amplifier

Stereo Power 4 x 80 Watts 4 Ohm

Stereo Power 4 x 125 Watts 2 Ohm

Mono Power 2 x 250 Watt 4 Ohm

Signal to Noise 95 dB

Frequency Response 5 - 60.000 Hz

Dimensions:

  • Length 370 mm
  • Height 54 mm
  • Depth 220 mm

Input Sensitivity:

  • Low Level 200mV-4V
  • High Level 500mV-10V

Selectable Electronic Crossover:

  • OFF (bypass)
  • LP/BP variable 50 - 200 Hz, 12 dB/octave
  • HP variable 10 - 50 Hz, 12 dB/octave

Bass Boost Variable 0 - 12 dB @ 40 Hz

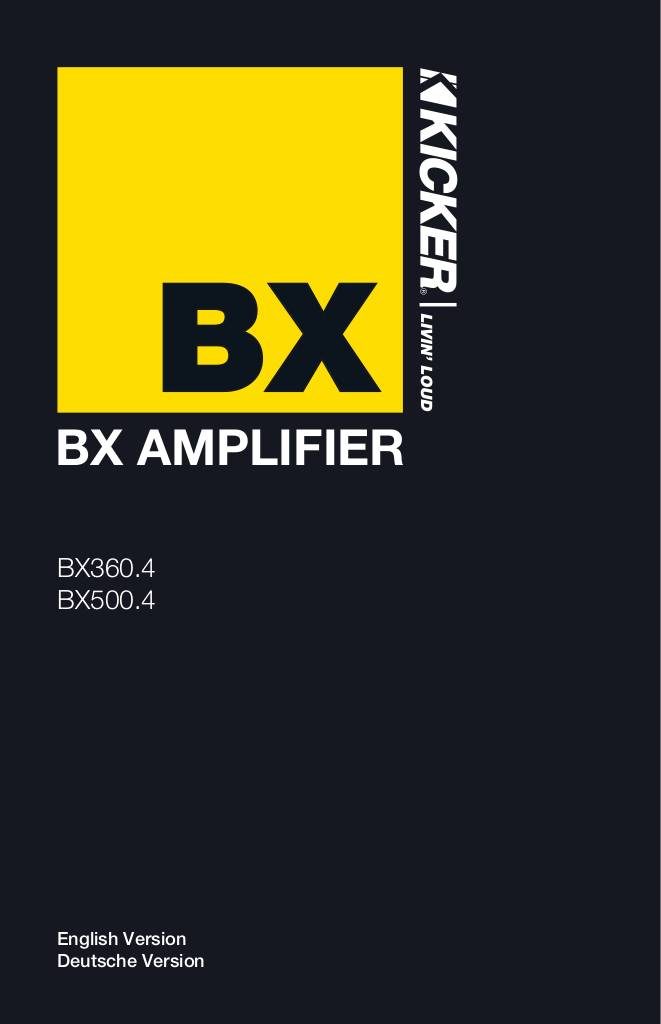

Manuale amplificatore

20160406121631-bx360-4-500-4.pdf
