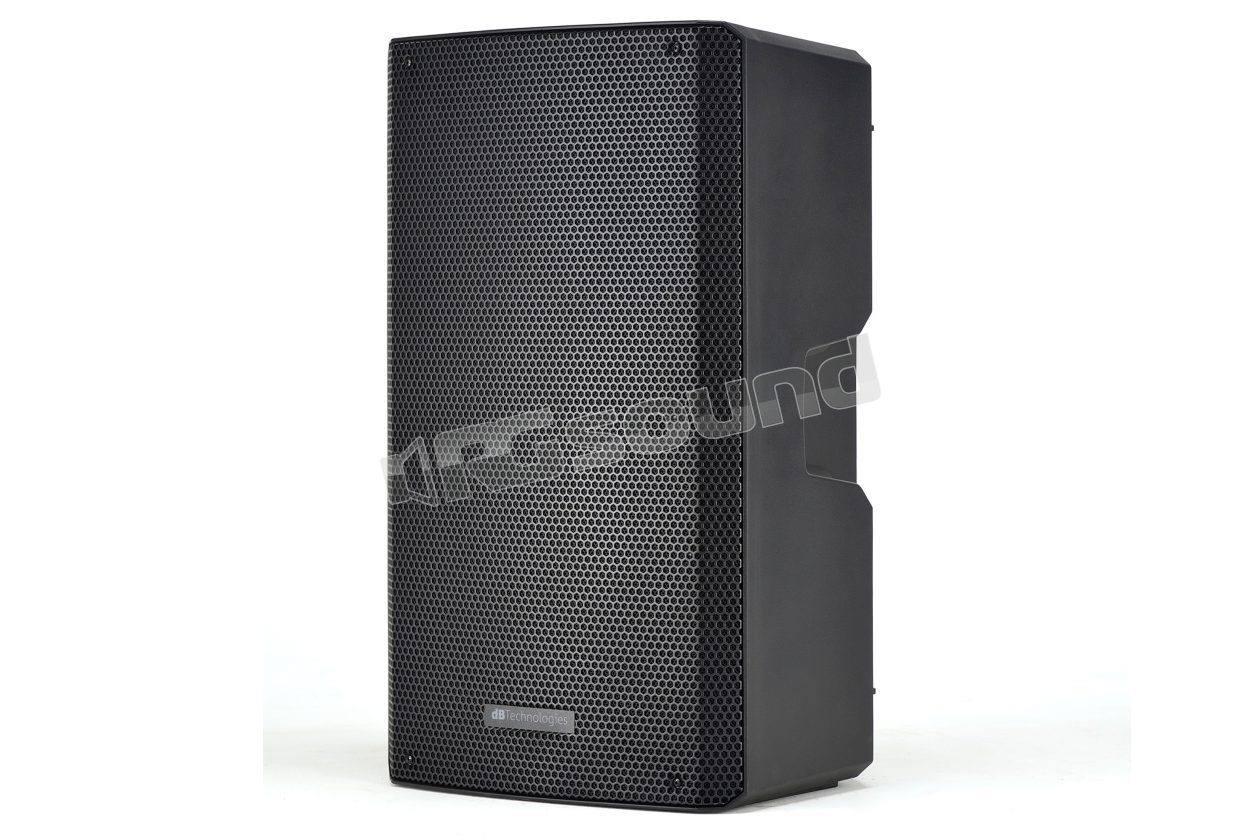

KL 15 2-way active speaker (38cm) with Bluetooth connection

dB Technologies

Discontinued

Your price:
€ 399,00
Price per single item (VAT included)

dbTechnologies KL 15 active 2-way speaker equipped with 38cm (15") woofer and tweeter (coil 1.35"). Supplied with soft cover featuring a pocket for cable storage.

Combining efficiency with professional sound performance, the 2-way KL 15 speakers are equipped with Bluetooth connection, 3 input channels, high sound pressure levels and a latest generation DSP where linear phase FIR filters ensure extremely accurate and uniform sound reproduction.

The system is powered by an amplifier with 800 Watt and advanced sound processing, where linear phase FIR filters allow systems to deliver coherent, uniform and crystal-clear audio performance from every listening position. Furthermore, onboard presets allow each user to adapt the equalization to the application in use.

All KL systems feature 3 INPUT channels with independent level management:
- CH 1 is a balanced combo XLR/6.3 mm Jack line/mic INPUT with source selection switch
- CH 2 is a balanced XLR and TRS jack IN
- CH 3 allows you to connect any device via Bluetooth connection

A balanced XLR-M output allows connection to another speaker or mixer.

A sliding switch allows you to select which signal is sent to the main output: LINK (the signal is taken before any level control) MIX (the signal is determined by the level control of each channel and Main).

The cabinets, solid and versatile, are characterized by a sober and contemporary design, enhancing both portability thanks to the 3 integrated handles (1 per side and 1 on top) and multifunctionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole cup with 2 tilt options (0° and 7.5°) for using KL on tripods or on top of dBTechnologies subs.

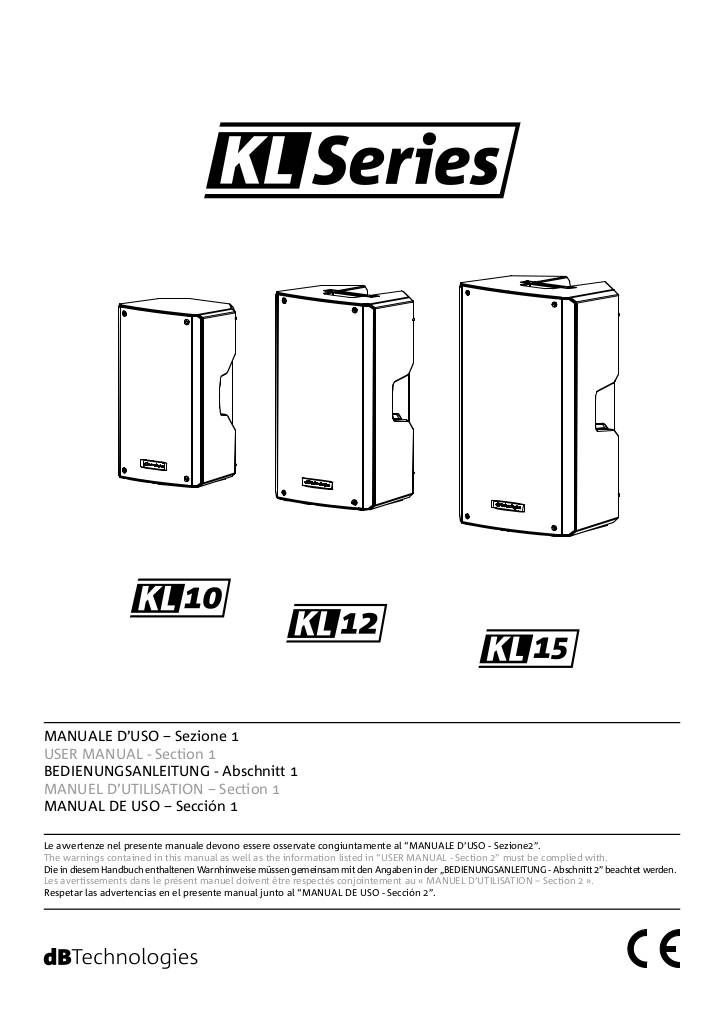

Manuale utente

n-20220111110329-kl-manual-1-0.pdf

dbTechnologies KL 15 technical specifications

Active 2-way speaker (38 cm)
Frequency response [-10dB] 48 - 18.000 Hz
Maximum SPL 128dB
HF 1" CD, 1.35" v.c
LF 15", 2.5" v.c.
Dispersion 90°x60°
Crossover frequency 1800 Hz (24 dB/oct.)
Amplification technology Class D(LF)+Class AB (HF)
Power peak (LF+HF) 800 W
Controls 1xVolume, 1x microphone/line sliding switch
Power/signal/limiter LED indicators
DSP controller 20/56 bit
AD/DA converter 24 bit/48 Hz
Playback, Flat, Bass Boost, Wedge
Limiter Peak, RMS, Thermal
Advanced DSP functions
Linear phase FIR filters
Input section
Signal input1 1x Combo (XLR/Jack)
Microphone/Line 1xXLR/TRS
Bluetooth input 1x Bluetooth receiver
SIGNAL Output 1xXLR male (LINK/MIX)
Handles 3 (2 on the side 1 on top)
Pole mount 36 mm, dual positioning
Width 430 mm (16.92 inches)
Height 722 mm (28.44 inches)
Depth 402 mm (15.82 inches)
Weight 19.3 kg (42.54 pounds)

Discontinued
