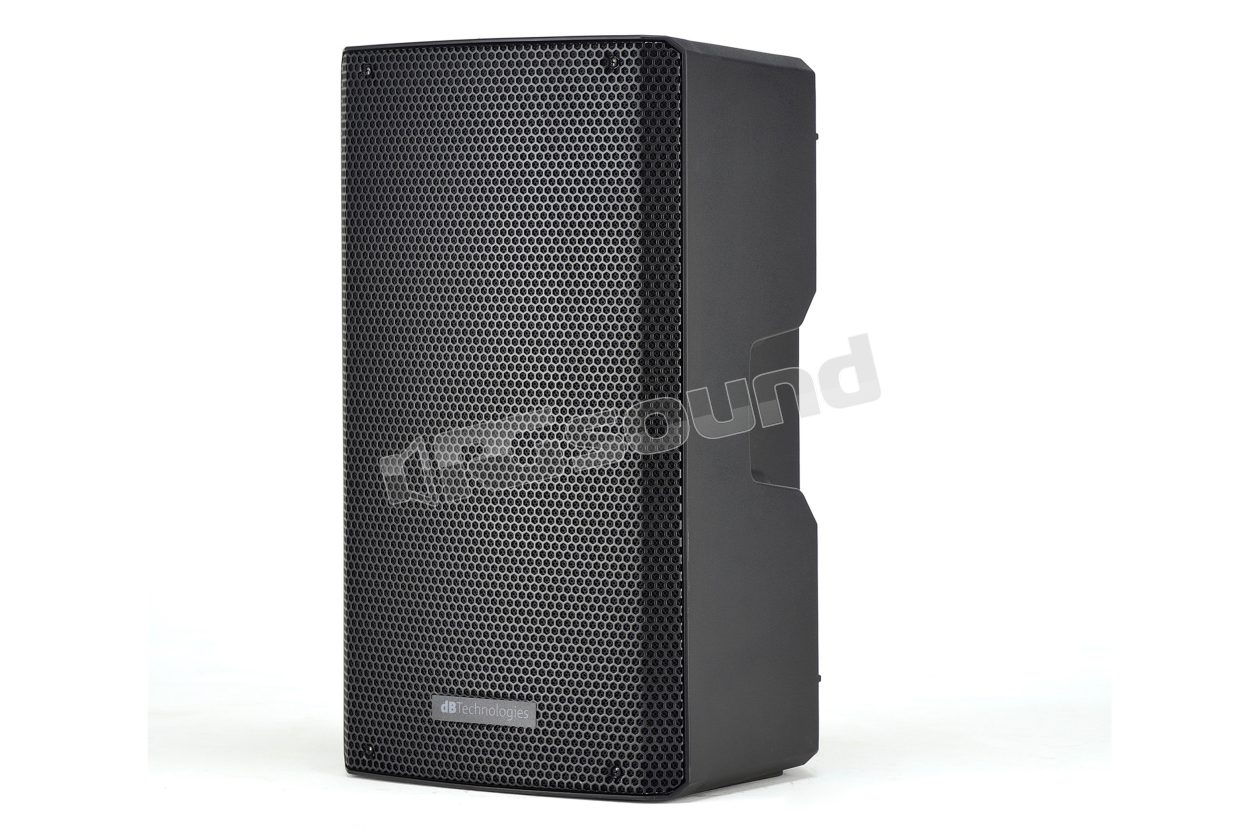

KL 12 2-way active speaker (30cm) with Bluetooth connection

dB Technologies

Discontinued

Your price:
€ 399,00
Price per single item (VAT included)

dbTechnologies KL 12 2-way active speaker equipped with 30cm (12") woofer and tweeter (1.35" coil). Supplied with soft cover with pocket for cable housing.

The system is powered by an amplifier with 800 Watts and advanced sound processing, where linear phase FIR filters allow systems to provide consistent, uniform and crystal-clear audio performance from every listening position. Additionally, on-board presets allow each user to adapt the equalization to the application in use.

All KL systems are equipped with 3 INPUT channels with independent level management:
- CH 1 is a balanced combo input XLR/6.3 mm Jack line/mic INPUT with switch for source selection
- CH 2 is a balanced XLR and TRS jack IN
- CH 3 allows you to connect any device via Bluetooth connection

A balanced XLR-M output allows connection to another speaker or a mixer.

A slide switch allows you to select which signal is sent to the main output: LINK (the signal is taken before any level control) MIX (the signal is determined by the level control of each channel and Main).

The solid and versatile cabinets are characterized by a sober and contemporary design, enhancing both portability thanks to the 3 integrated handles (1 per side and 1 on the top) and multifunctionality: each cabinet can be used horizontally as a stage monitor (on both sides) and has a pole cup with 2 tilt options (0° and 7.5°) for using KL on tripods or on top of dBTechnologies subs.

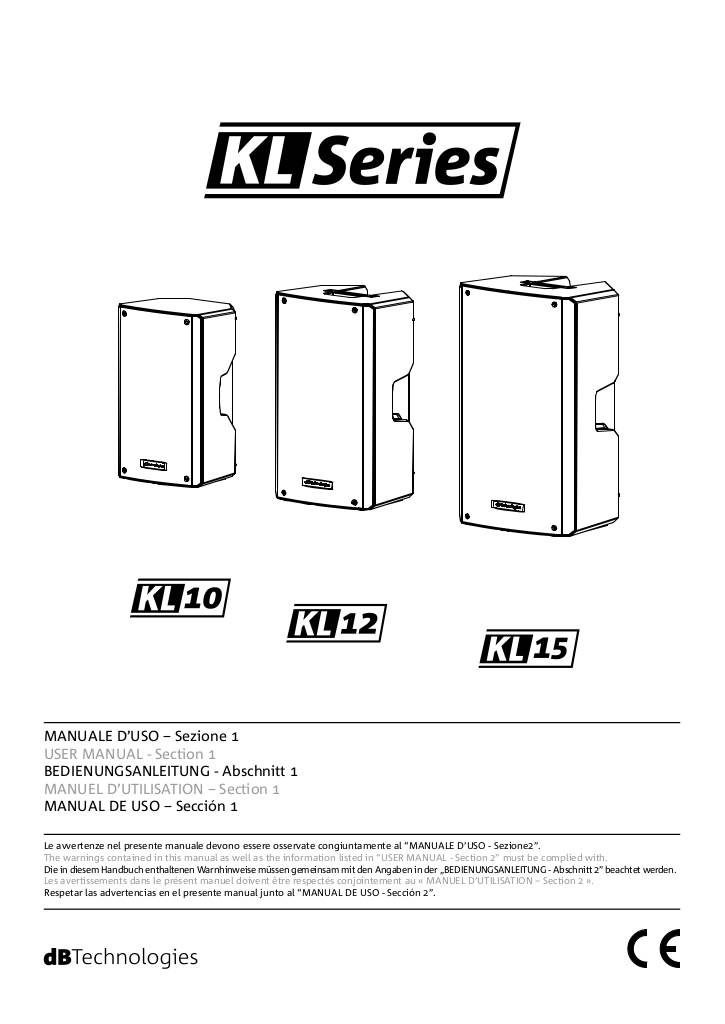

Manuale utente

n-20220111110329-kl-manual-1-0.pdf

dbTechnologies KL 12 technical specifications

2-way active speaker
Frequency response [-10dB] 52 - 18,000 Hz
Maximum SPL 127dB
HF 1" CD, 1.35" v.c
LF 12", 2.5" v.c.
Dispersion 90°x60°
Crossover frequency 1800 Hz (24 dB/oct.)
Amplification technology Class D (LF) + Class AB (HF)
Power peak (LF+HF) 800 W
Controls 1xVolume, 1x microphone/line slide switch
LED power/signal/limiter indicators
DSP controller 20/56 bit
AD/DA converter 24 bit/48 Hz
Playback, Flat, Bass Boost, Wedge
Limiter Peak, RMS, Thermal
Advanced DSP functions
Linear phase FIR filters
Input section
Signal input 1x Combo (XLR/Jack)
Microphone/Line 1xXLR/TRS
Bluetooth input 1x Bluetooth receiver
SIGNAL Output 1xXLR male (LINK/MIX)
Handles 3 (2 on the side 1 on top)
Pole mounting 36 mm, double positioning
Width 365 mm (14.37 inches)
Height 622 mm (24.50 inches)
Depth 342 mm (13.46 inches)
Weight 16.5 kg (36.37 pounds)
