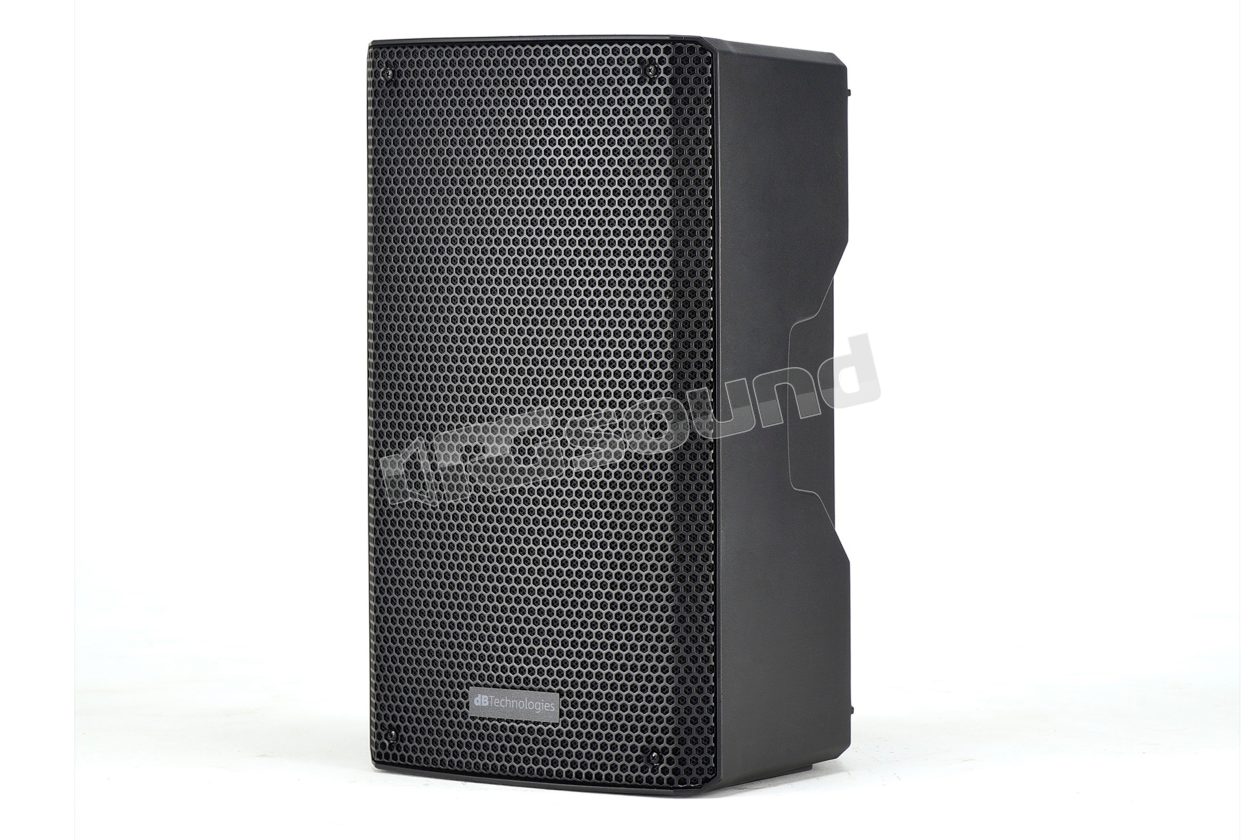

KL 10 2-way active speaker (25cm) with Bluetooth connection

dB Technologies

Discontinued

Your price:
€ 299,00
Price per single item (VAT included)

dbTechnologies KL 10 active 2-way speaker equipped with 25cm (10") woofer and 2.5cm (1") high frequency driver. Supplied with soft cover featuring a pocket specifically designed to house cables.

The KL 10 system is powered by a 400 W amplifier module and features advanced sound processing where linear phase FIR filters allow the systems to deliver consistent, uniform and crystal-clear audio performance from every listening position. Additionally, on-board presets allow each user to adapt the equalization to the application in use.

All cabinets are equipped with 3 INPUT channels with independent level management:

- CH 1 is a balanced combo XLR/6.3 mm Jack line/mic INPUT with source selection switch
- CH 2 is a balanced XLR and TRS jack IN
- CH 3 allows you to connect any device via Bluetooth connection

A balanced XLR-M output allows connection to another speaker or mixer.

A slide switch allows you to select which signal is sent to the main output: LINK (the signal is taken before any level control) MIX (the signal is determined by the level control of each channel and Main).

The cabinets, solid and versatile, are characterized by sober and contemporary design, enhancing both portability thanks to the 3 integrated handles (1 per side and 1 on the top) and multifunctionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole cup with 2 tilt options (0° and 7.5°) to use KL on tripods or on top of dBTechnologies subs.

Scheda tecnica

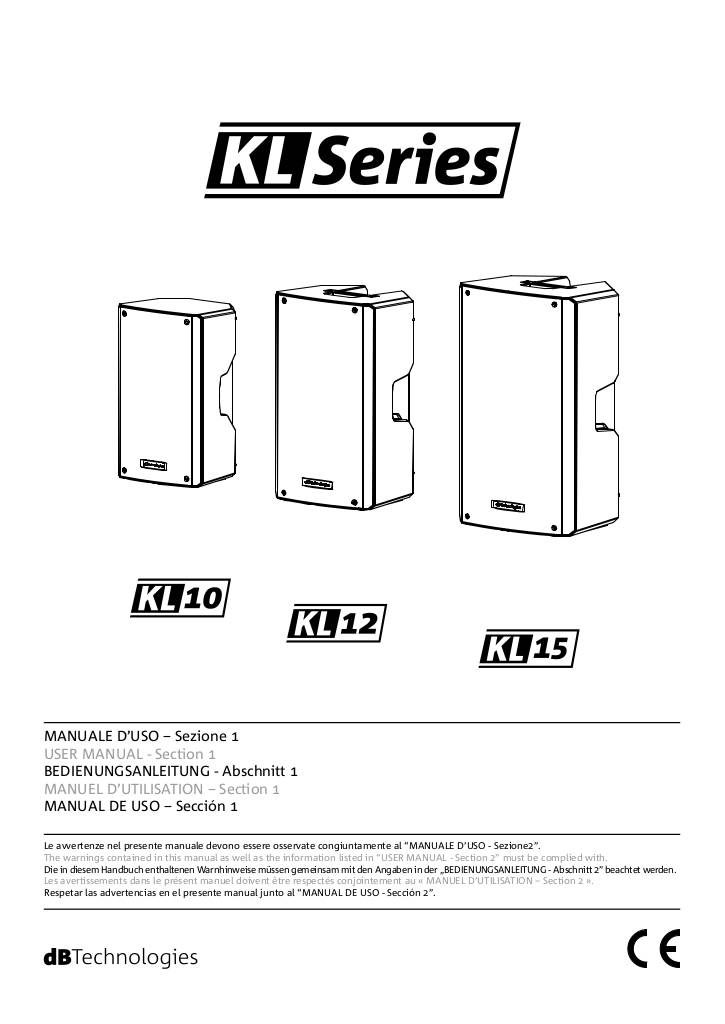

n-20220111105137-kl-manual-1-0.pdf

dbTechnologies KL 10 technical specifications

Active 2-way speaker
Frequency response [-10dB] 55 - 18.000 Hz
Maximum SPL 125dB
HF 1" CD, 1" v.c
LF 10", 2" v.c.
Dispersion 90°x60°
Crossover frequency 2000 Hz (24 dB/oct.)
Amplification technology Class D(LF)+Class AB (HF)
Power peak (LF+HF) 400 W
Controls 1xVolume, 1x microphone/line slide switch
Power/signal/limiter LED indicators
DSP controller 20/56 bit
AD/DA converter 24 bit/48 Hz
System presets
Playback, Flat, Bass Boost, Wedge
Limiter Peak, RMS, Thermal
Advanced DSP functions
Linear phase FIR filters
Input section
Signal input 1x Combo (XLR/Jack)
Microphone/Line 1xXLR/TRS
Bluetooth input
1x Bluetooth receiver
SIGNAL 1x XLR male (LINK/MIX)
Handles 3 (2 on side 1 on top)
Pole mounting 36 mm, double positioning
Width 310 mm (12.2 inches)
Height 521 mm (20.51 inches)
Depth 292 mm (11.51 inches)
Weight 11.7 kg (25.79 pounds)

Discontinued
