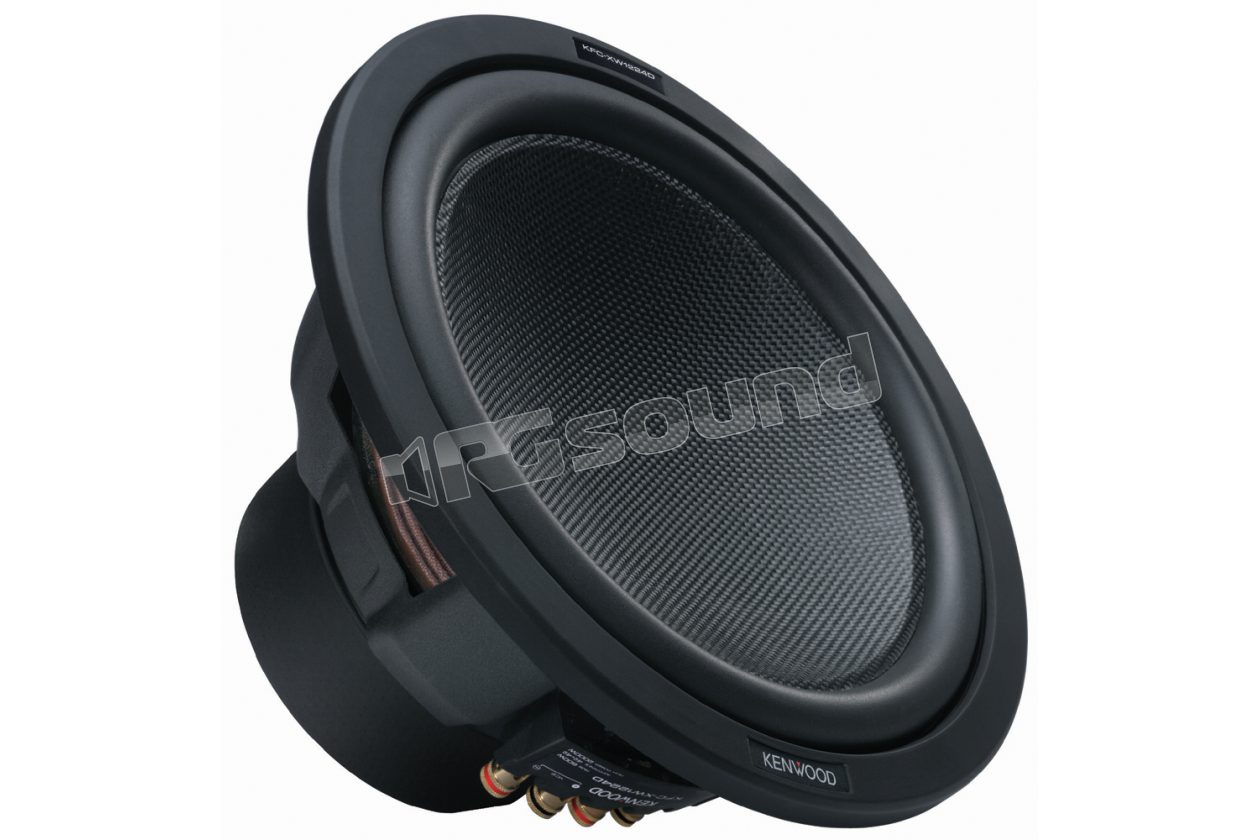

KFC-XW1224D 30cm Subwoofer

Kenwood

Discontinued

Your price:
€ 180,50
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
320 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Frequency Response
32 - 500 Hertz
Sensitivity
84 dB
Impedance
4 Ohm
Weight
8,4 Kg
Installation Depth
168 mm
Woofer Material
membrana di carbonio cono-PP

KFC-XW1224D - Subwoofer with 300 mm glass fiber-carbon cone

• Superlinear spider
• Dual magnet motor
• Magnet rubber cover
• High excursion rubber suspension

Features:
1000 watt peak power + 1000 Watt
W RMS 500 watt + 500 watt
Nominal power 300 watt + 300 watt
Cone material carbon membrane cone-PP
Speaker basket DIE-CAST aluminum basket
Sensitivity 84dB/W/m
Frequency response 32Hz ~ 500Hz
Subwoofer impedance 4Ω x 2
Dimensions (W x H x D) 325 x 184.2 x 325 millimeters
Installation depth 168 millimeters
Mounting hole diameter 279 millimeters
Speaker weight 6900 gr
Gross weight 8,400 gr
Magnet Weight 2420 gr

Parameters:
Nominal (Z) 4 Ω Ω + 4
DC Resistance (Re) 3 Ω Ω + 3
Resonance frequency (UST) 27.4 Hz
Mechanical merit (SGQ) 4.51
Merit (QES) 0.52
Merit (QTS) 0.47
(LBM) 0.63 mH
Force factor (BL) 9.46 t / m
Max displacement (Xmax) 7.7 millimeters
Mass displacement (MMS) 180.1 gr
Equivalent air volume (VAS) 63.77 liters
Membrane surface (SD) 0.049 m²
Displacement 3030cc

Recommended configuration
Volume of 35.4 liters in sealed enclosure
Dimensions of the terminal housing (W x H x D) 375 x 370 x 355 mm (19 millimeters thick MDF)

Bass-reflex enclosure volume 42.5 liters
Dimensions of the bass-reflex enclosure (W x H x D) 507 x 360 x 320 mm (19 millimeters thick MDF)
Port dimensions (W x L x H) 35 x 322 X 480 millimeters
